On Board Diagnosis Logic

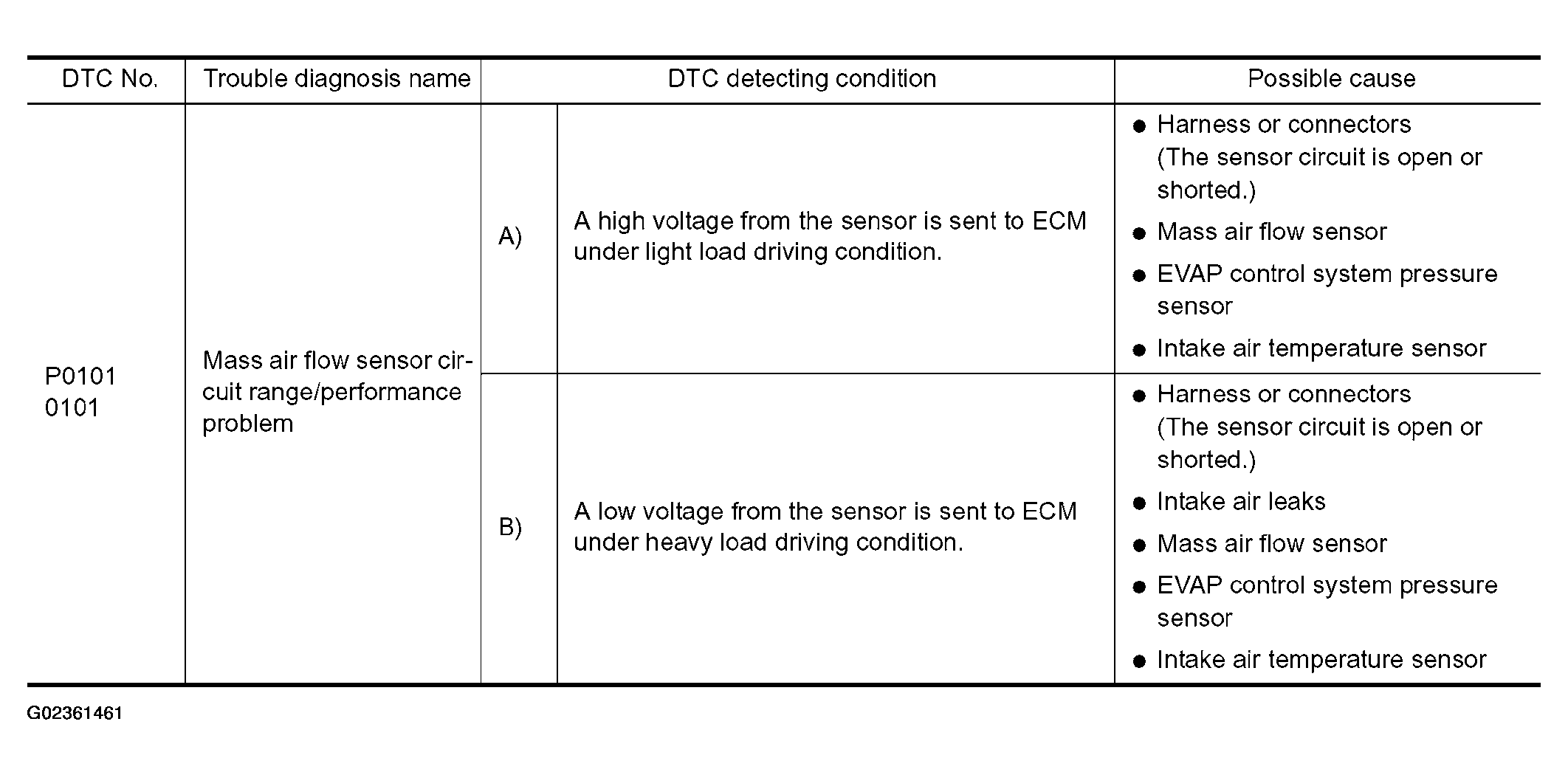

Fig 1: On Board Diagnosis Logic Reference

G02361461

Courtesy of NISSAN MOTOR CO., U.S.A.
