Home >> Infiniti >> 2005 >> FX45 >> Repair and Diagnosis >> Engine Performance >> Engine Control System - VK45DE >> DTC P0011, P0021: IVT Control >> On Board Diagnosis Logic >> Notes

On Board Diagnosis Logic: Notes

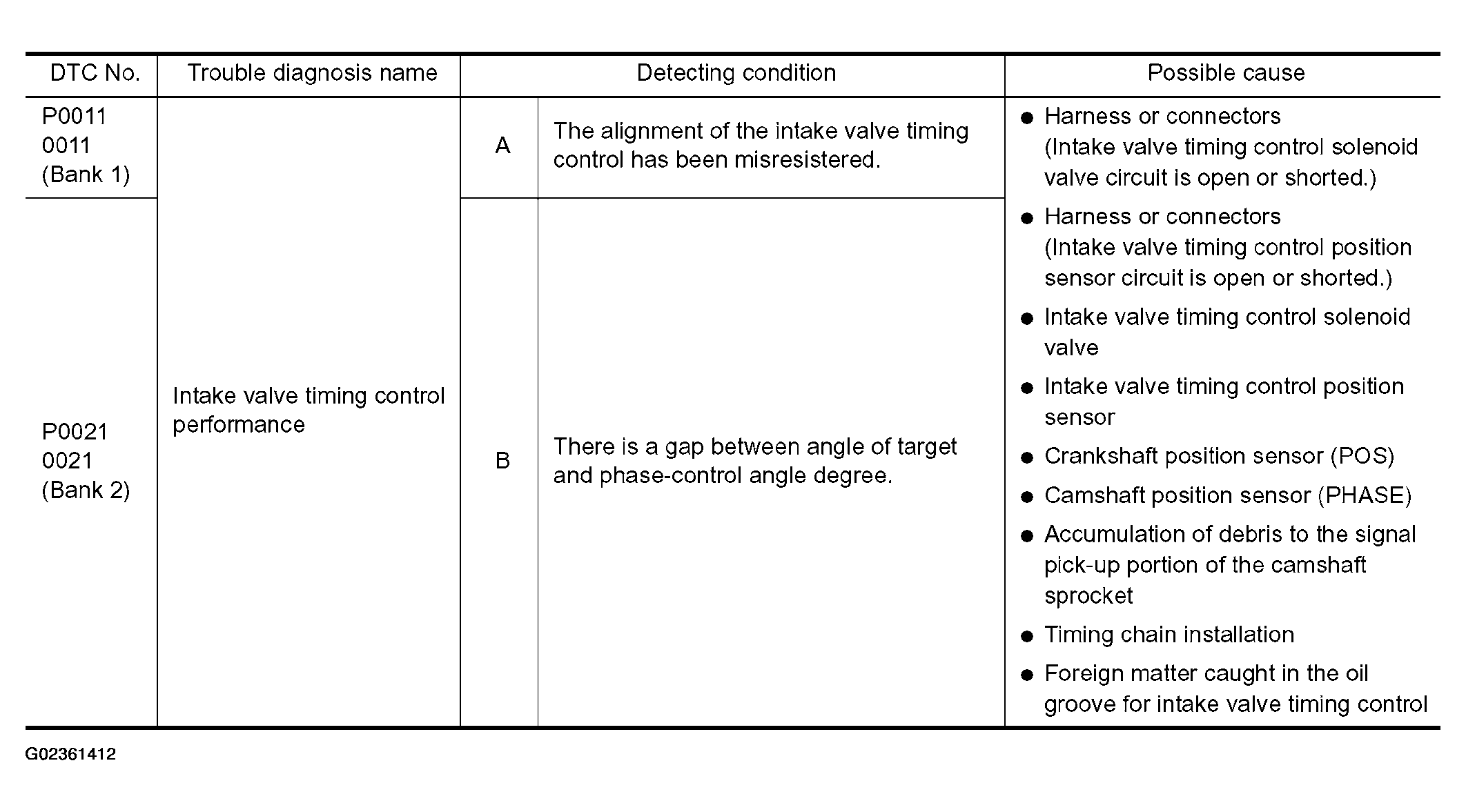

Fig 1: Diagnostic Chart

G02361412

Courtesy of NISSAN MOTOR CO., U.S.A.
