With CONSULT-II

  1. Turn ignition switch ON.
  2. Select "DATA MONITOR" mode with CONSULT-II.
  3. Maintain the following conditions for at least 10 consecutive seconds.
    ENGINE SPEED

    ENG SPEED More than 2,000 rpm (A constant rotation is maintained.)
    COOLAN TEMP/S More than 70°C (158°F)
    Selector lever 1st or 2nd position
    Driving location uphill Driving vehicle uphill (Increased engine load will help maintain the driving conditions required for this test.)

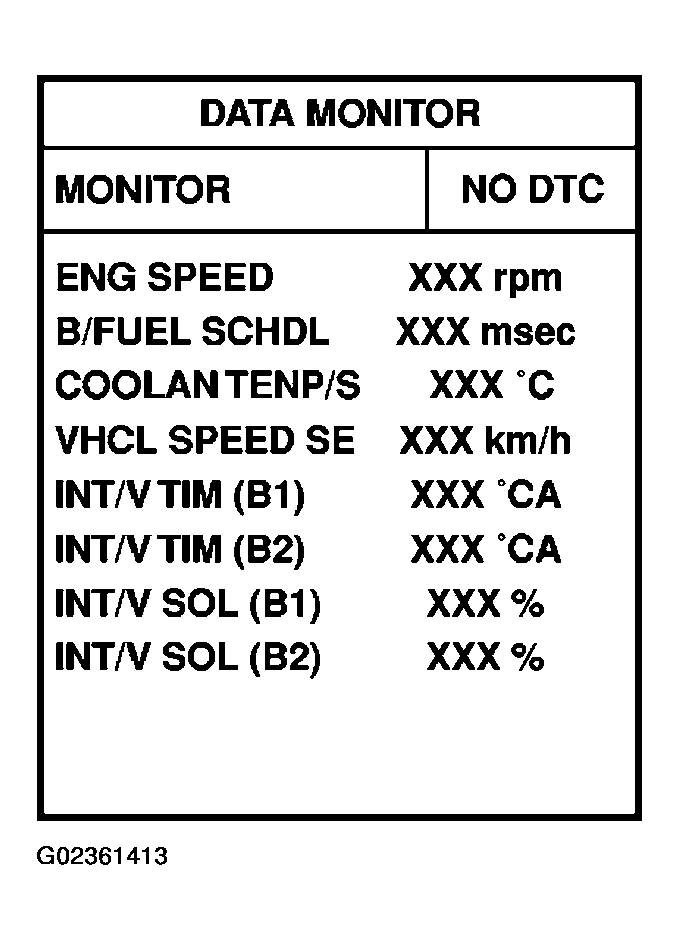

    Fig 1: Identifying Consult-II Data Monitor
    G02361413Courtesy of NISSAN MOTOR CO., U.S.A.
  4. Maintain the following conditions for at least 20 consecutive seconds.
    ENGINE SPEED

    ENG SPEED Idle
    COOLAN TEMP/S More than 70°C (158°F)
    Selector lever P or N position
  5. If the 1st trip DTC is detected, go to "DIAGNOSTIC PROCEDURE  ".
