Fuel Level Sensor Unit And Fuel Pump (Main) Connector End View Connector End View (B39)

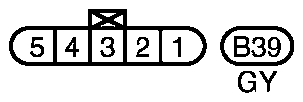

Fig 1: Fuel Level Sensor Unit And Fuel Pump (Main) Connector End View Connector End View (B39)
G10837131Courtesy of NISSAN NORTH AMERICA, INC.
