Disassembly and Assembly (VK45DE Models): Notes

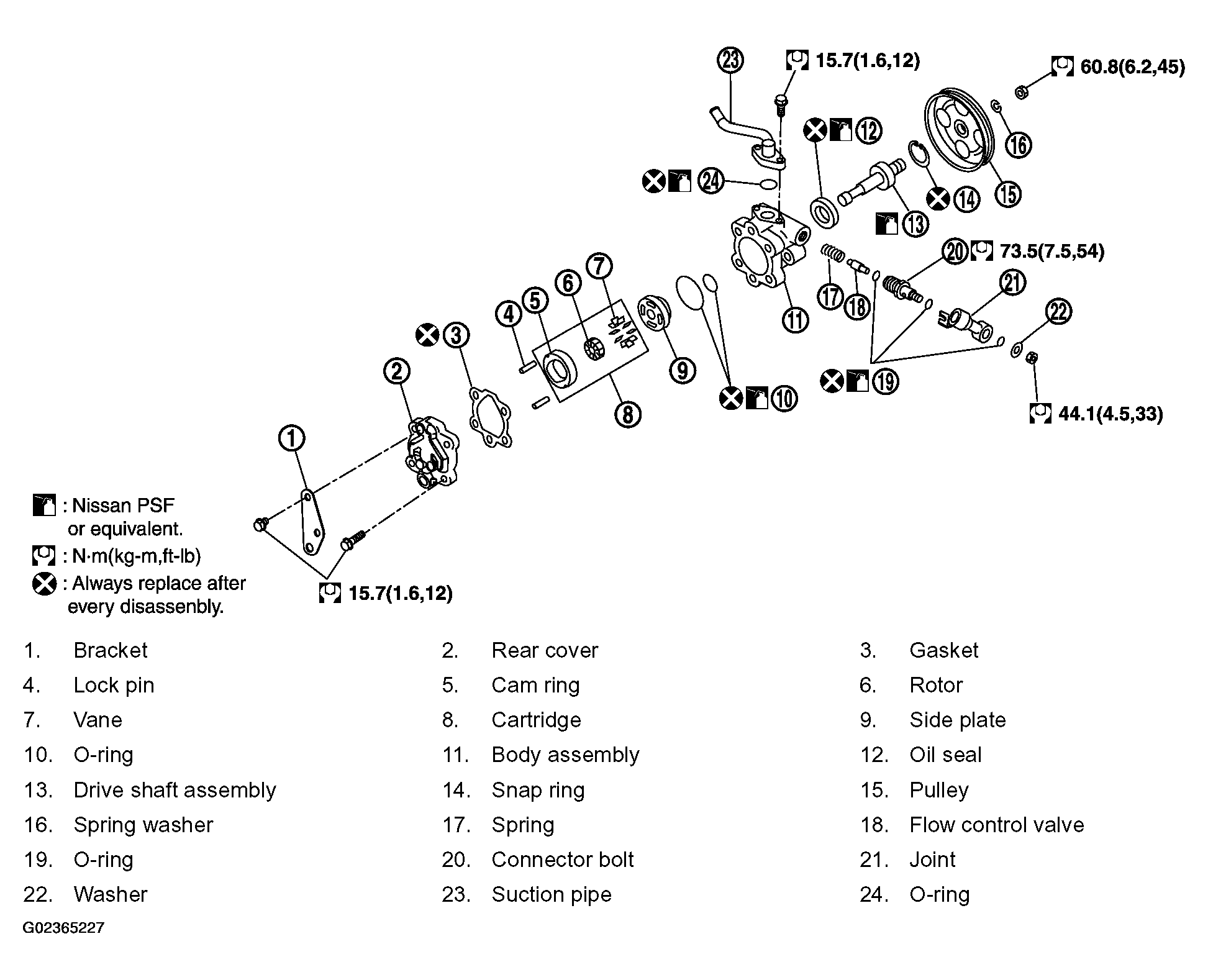

Fig 1: Disassembling And Assembling Power Steering Oil Pump With Torque Specifications (VK45DE Models)

G02365227

Courtesy of NISSAN MOTOR CO., U.S.A.
