Monitored Item

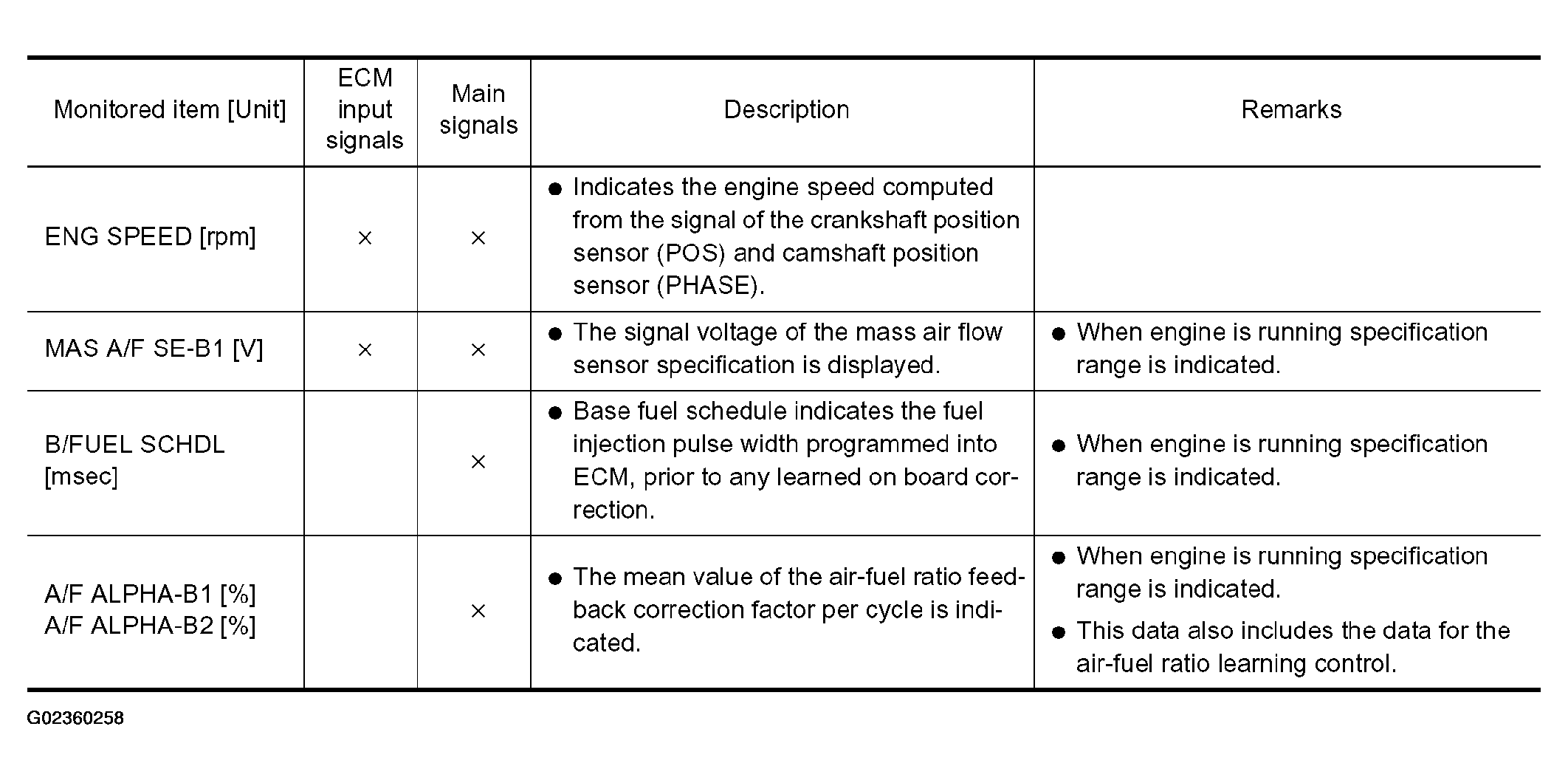

Fig 1: Data Monitor (SPEC) Mode Chart (Monitored Item)
G02360258Courtesy of NISSAN MOTOR CO., U.S.A.
NOTE: Any monitored item that does not match the vehicle being diagnosed is deleted from the display automatically.
