DTC Work Support Mode

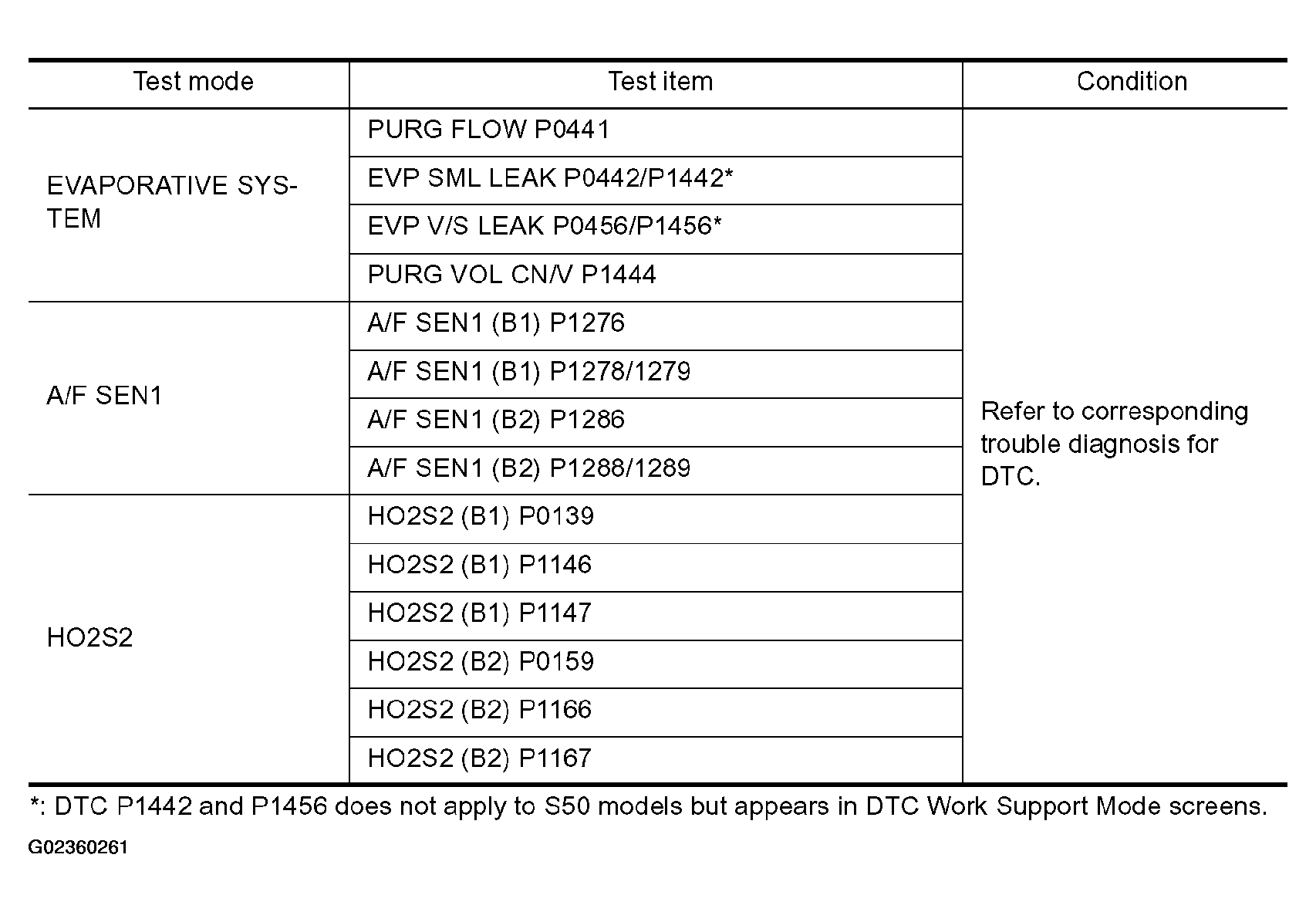

Fig 1: DTC Work Support Mode Chart

G02360261

Courtesy of NISSAN MOTOR CO., U.S.A.
