On Board Diagnosis Logic: Notes

These self-diagnoses have the one trip detection logic.

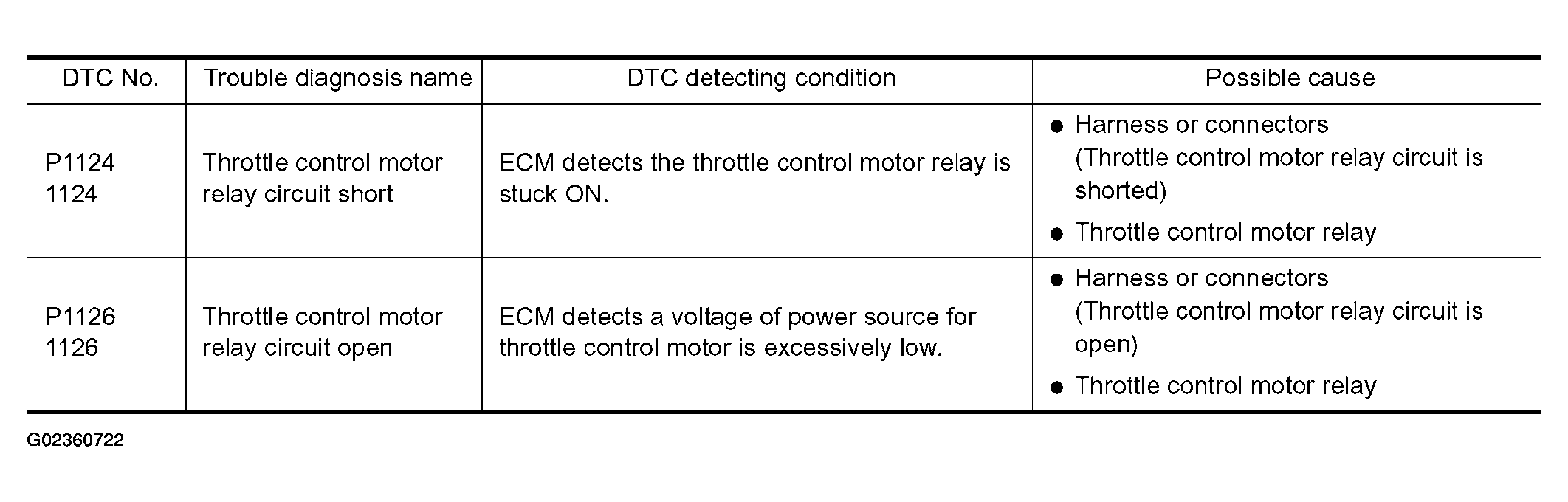

Fig 1: DTC P1124, P1126 Diagnosis Trouble Chart

G02360722

Courtesy of NISSAN MOTOR CO., U.S.A.
