Home >> Infiniti >> 2005 >> FX35 AWD >> Repair and Diagnosis >> Engine Performance >> Engine Control System - VQ35DE >> DTC P0171, P0174: Fuel Injection System Function >> Wiring Diagram >> Bank 2

Bank 2

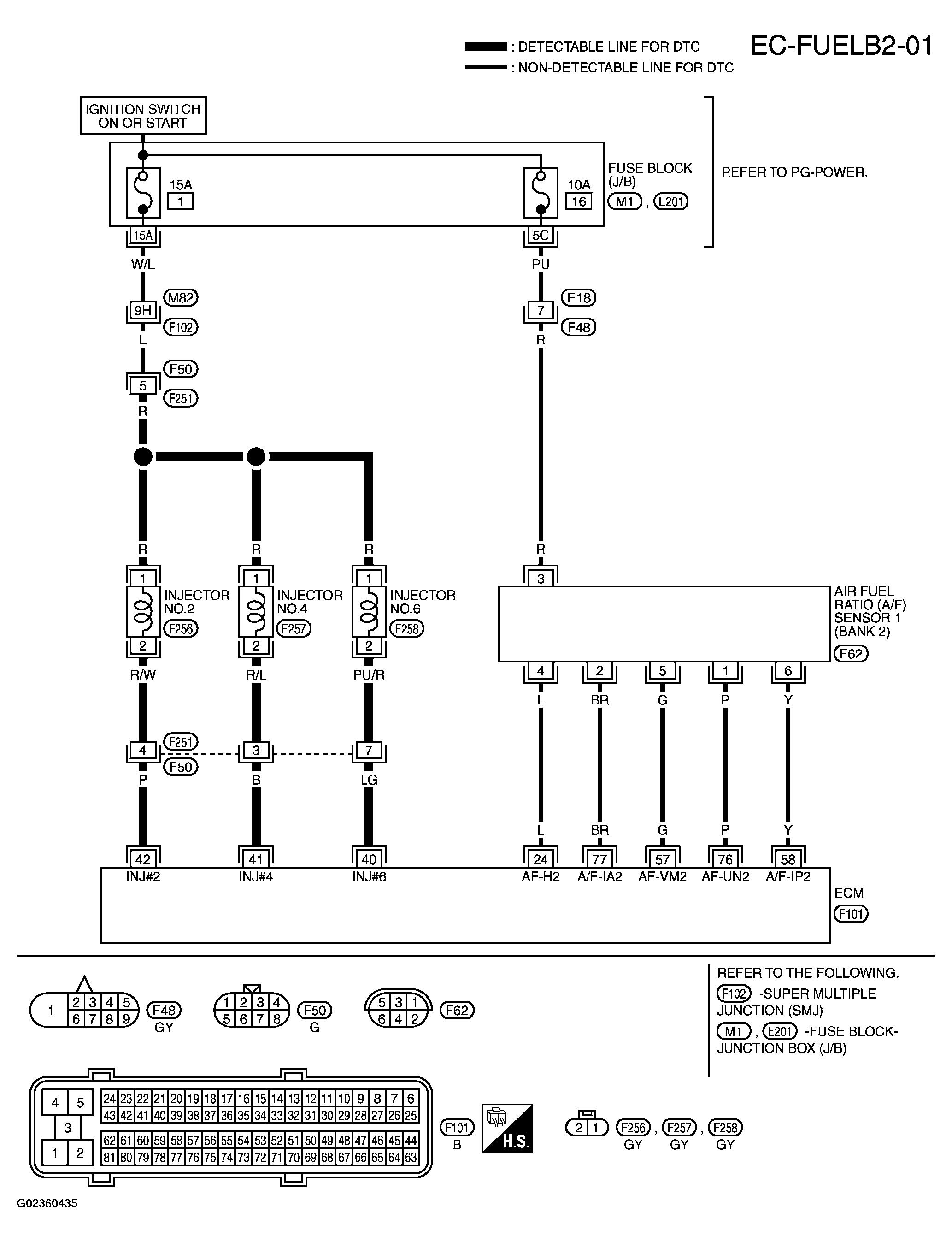

Fig 1: Wiring Diagram - EC-FUELB2-01

G02360435

Courtesy of NISSAN MOTOR CO., U.S.A.
