On Board Diagnosis Logic

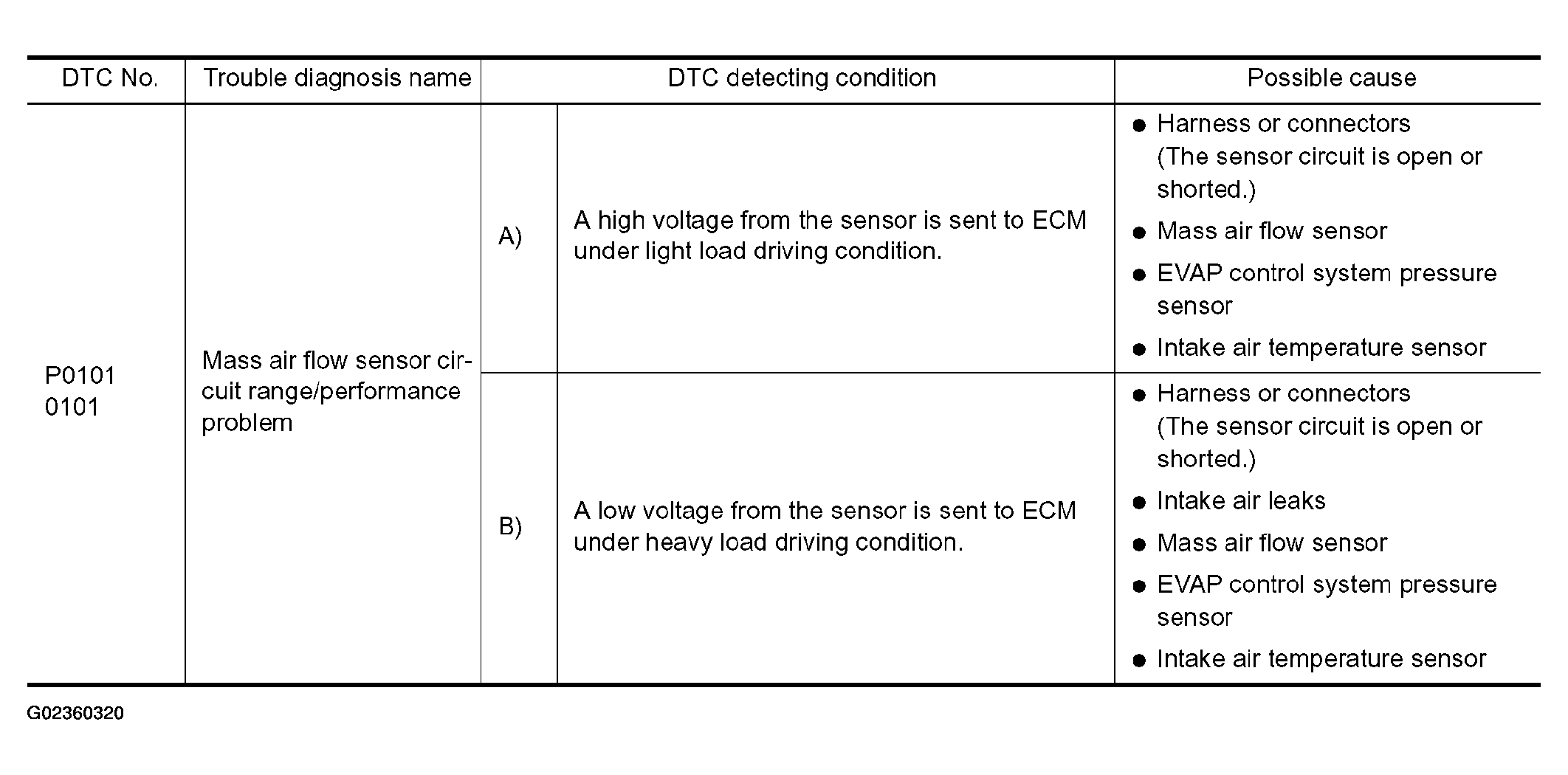

Fig 1: DTC Trouble Detection Condition Chart

G02360320

Courtesy of NISSAN MOTOR CO., U.S.A.
