Normal Mode

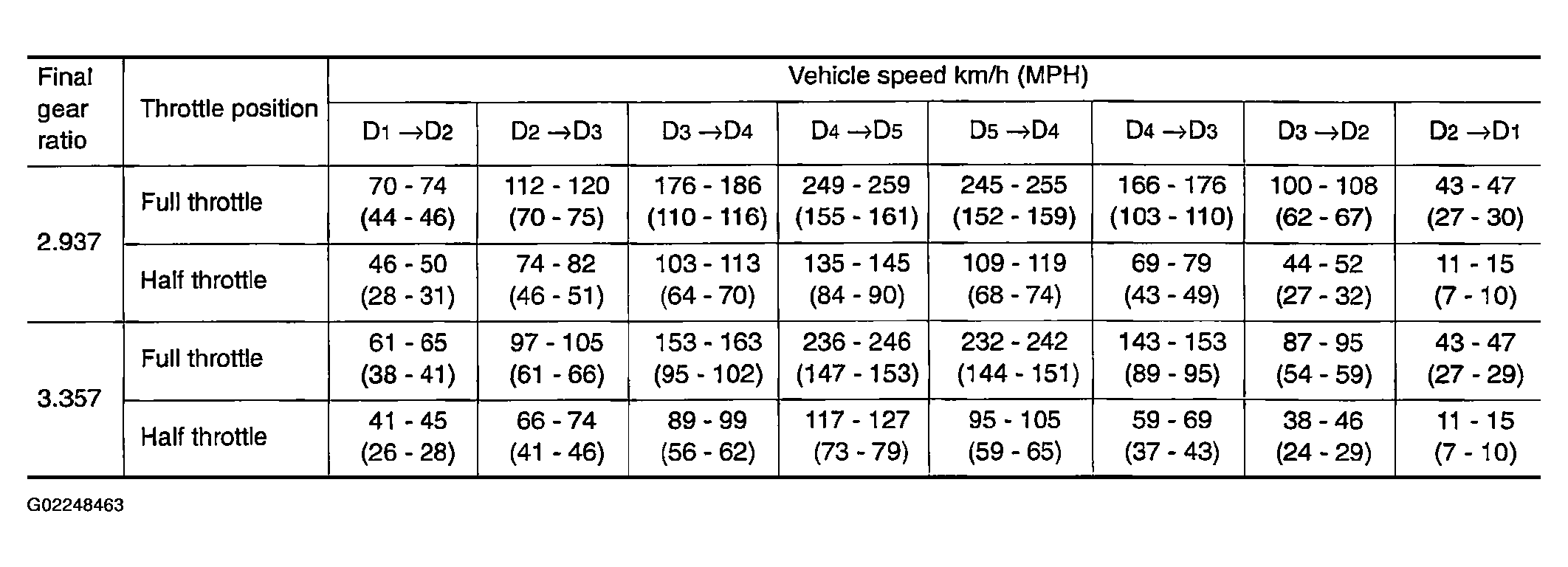

Fig 1: Vehicle Speed When Shifting Gears - Normal Mode Specifications

G02248463

Courtesy of NISSAN MOTOR CO., U.S.A.

At half throttle, the accelerator opening is 4/8 of the full opening.
