Removal and Installation of BCM: Removal

WARNING: This page is about a different car, the 2005 Infiniti QX56. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect negative battery cable.
  2. Remove instrument panel storage bin. Refer to "REMOVAL AND INSTALLATION ".
  3. Remove instrument lower panel LH. Refer to "REMOVAL AND INSTALLATION ".
  4. Disconnect switch assembly.
  5. Remove screw and release BCM.
  6. Disconnect connectors and then remove BCM.

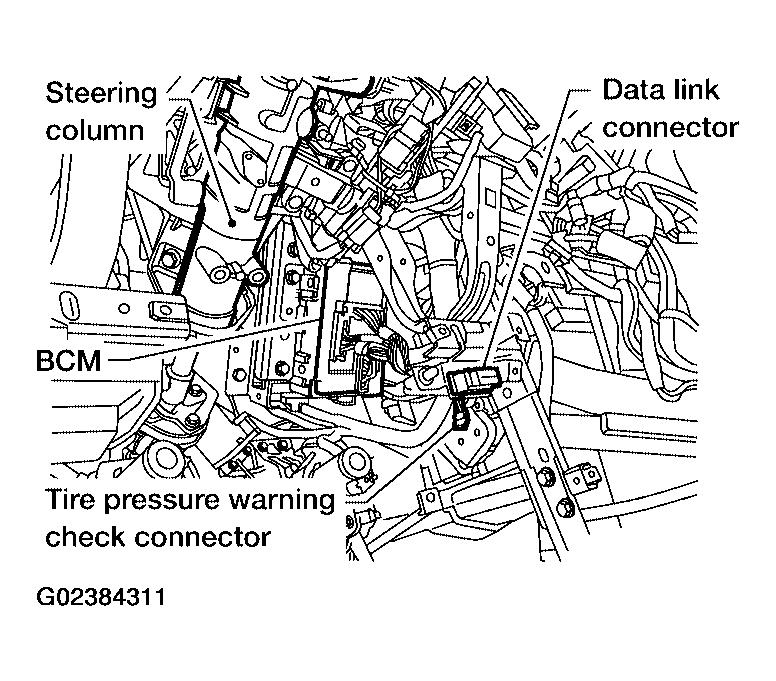

    Fig 1: Removing Connectors And BCM
    G02384311Courtesy of NISSAN MOTOR CO., U.S.A.
