Removal and Installation of Rear View Camera Control Unit: Removal

WARNING: This page is about a different car, the 2005 Infiniti QX56. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove luggage side finishers LH. Refer to "LUGGAGE FLOOR TRIM ".
  2. Remove screws (2) and remove rear view camera control unit.

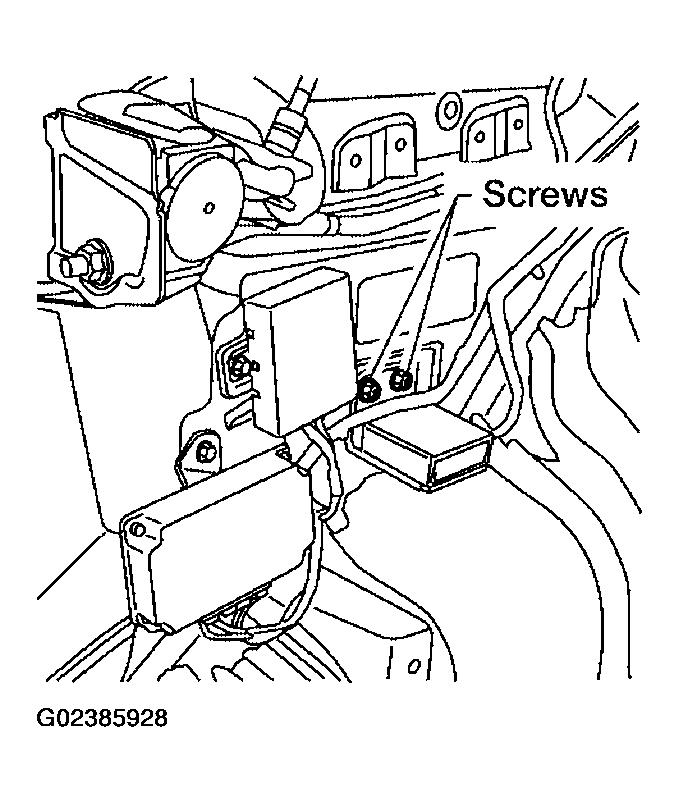

    Fig 1: Identifying Rear View Camera Control Unit Screws
    G02385928Courtesy of NISSAN MOTOR CO., U.S.A.
