On Board Diagnosis Logic

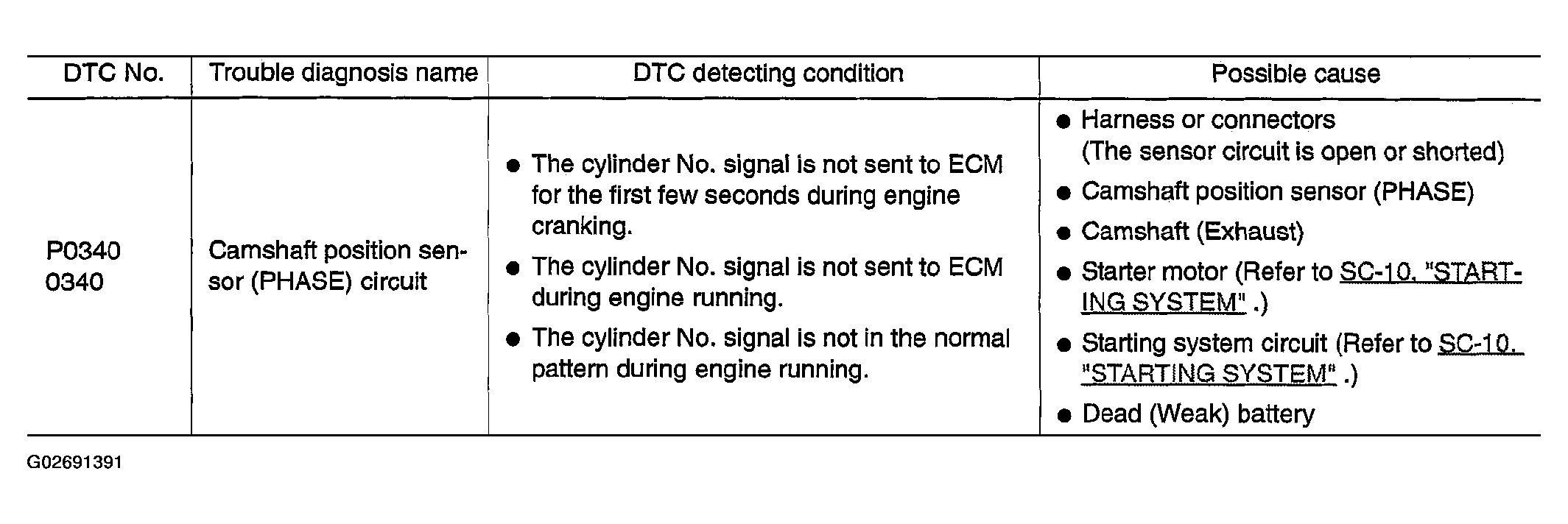

Fig 1: DTC P0340 Camshaft Position (CMP) Sensor (PHASE) - On Board Diagnosis Logic

G02691391

Courtesy of NISSAN MOTOR CO., U.S.A.
