Terminal and Reference Value for Power Window and Door Lock/Unlock Switch RH

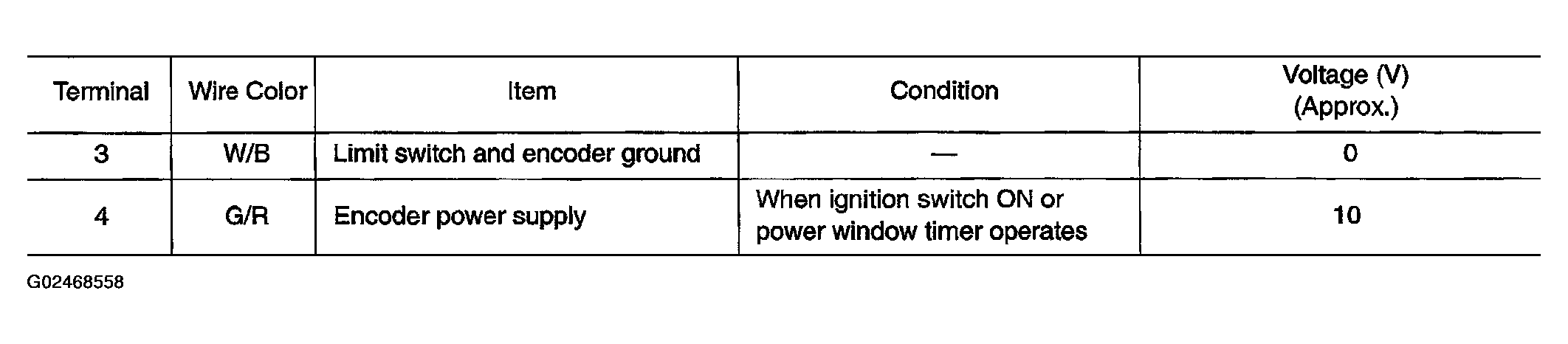

Fig 1: Terminal And Reference Value For Power Window And Door Lock/Unlock Switch (1 Of 2)

Courtesy of NISSAN MOTOR CO., U.S.A.

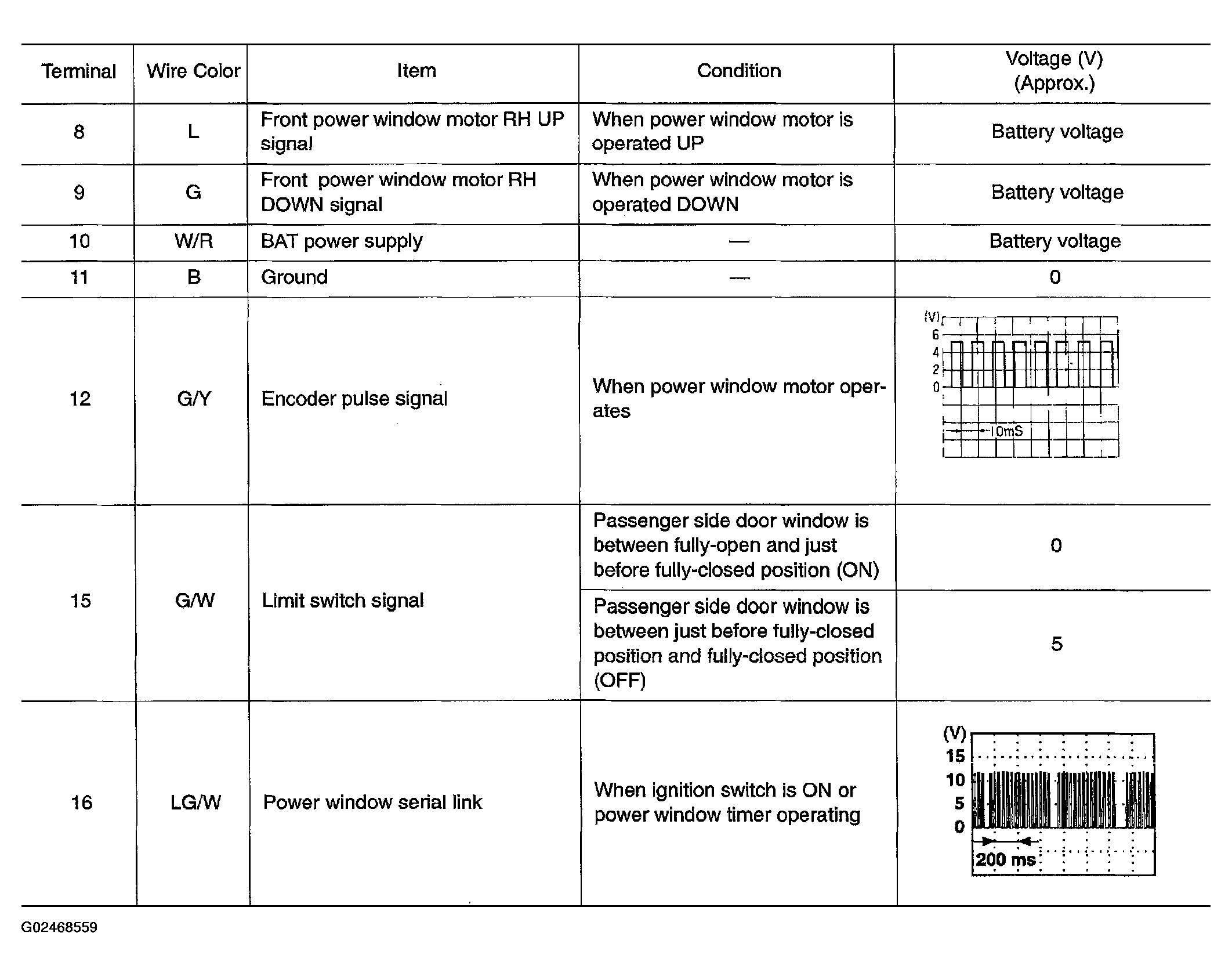

Fig 2: Terminal and Reference Value for Main Power Window and Door Lock/Unlock Switch (2 Of 2)

Courtesy of NISSAN MOTOR CO., U.S.A.
