DTC P1815: Manual Mode Switch
>>
Component Inspection
>>
Manual Mode Switch
Manual Mode Switch
Check continuity between terminals.

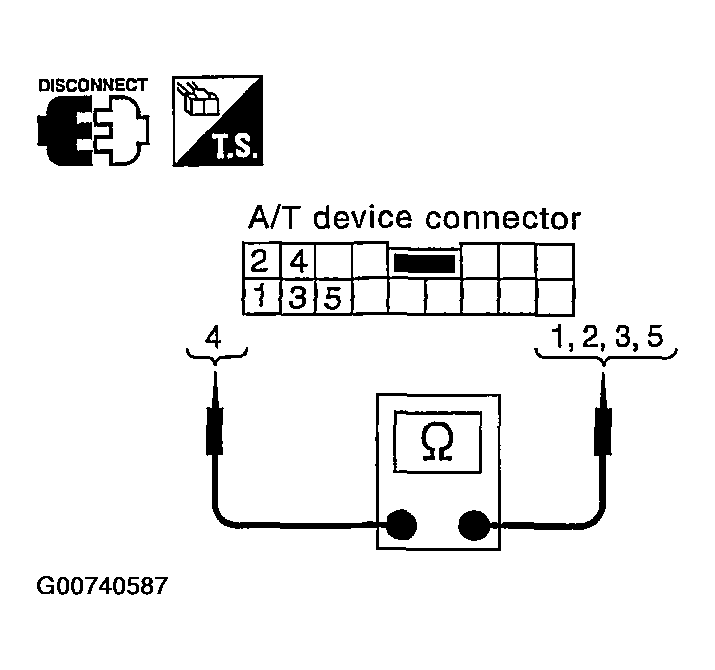

Fig 1: Manual Mode Switch Component Inspection (1 Of 2)
Courtesy of NISSAN MOTOR CO., U.S.A.

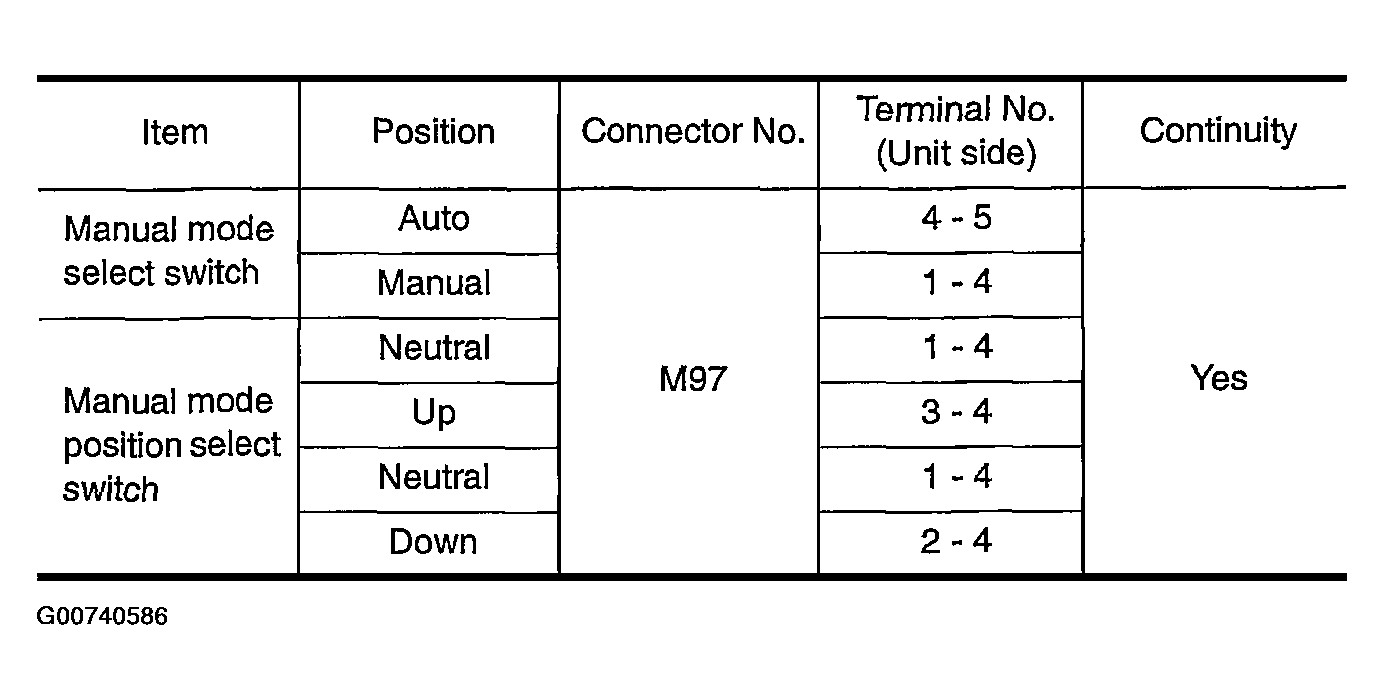

Fig 2: Manual Mode Switch Component Inspection (2 Of 2)
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
