A/T Interlock Coupling Pattern Table

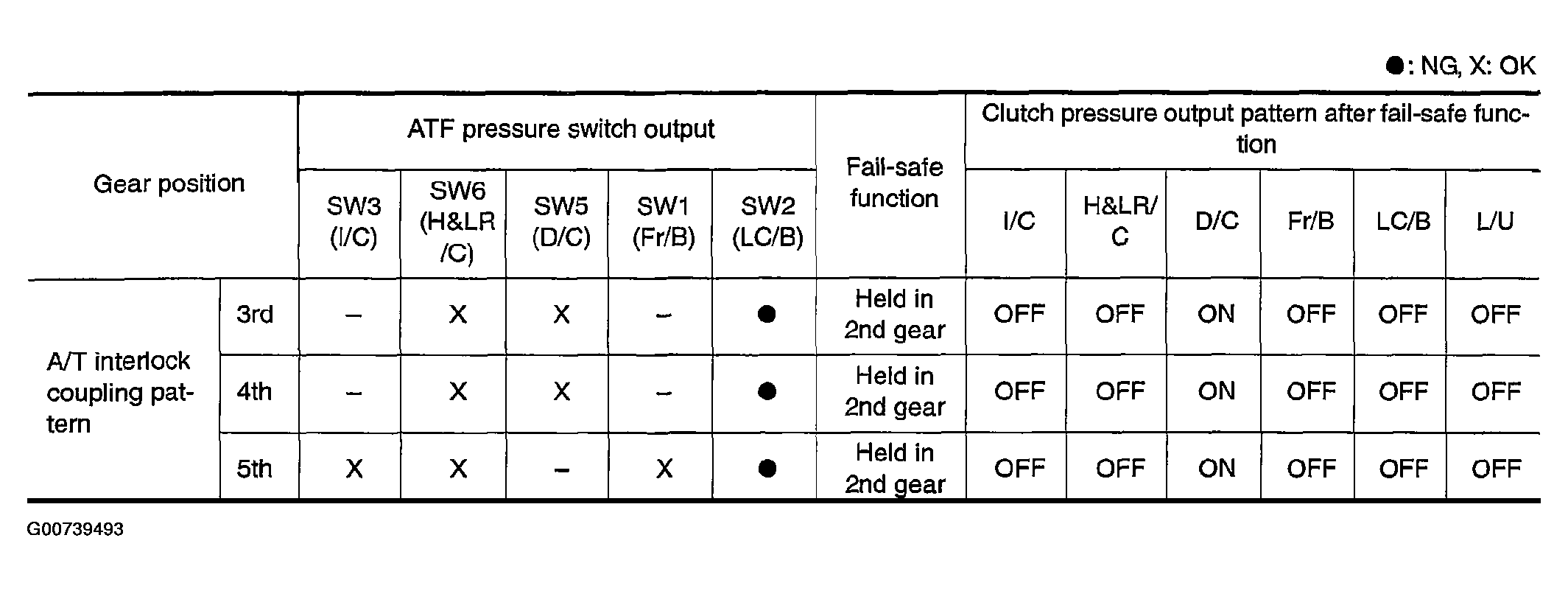

Fig 1: A/T Interlock Coupling Pattern Table

G00739493

Courtesy of NISSAN MOTOR CO., U.S.A.
