Clutch And Band Chart

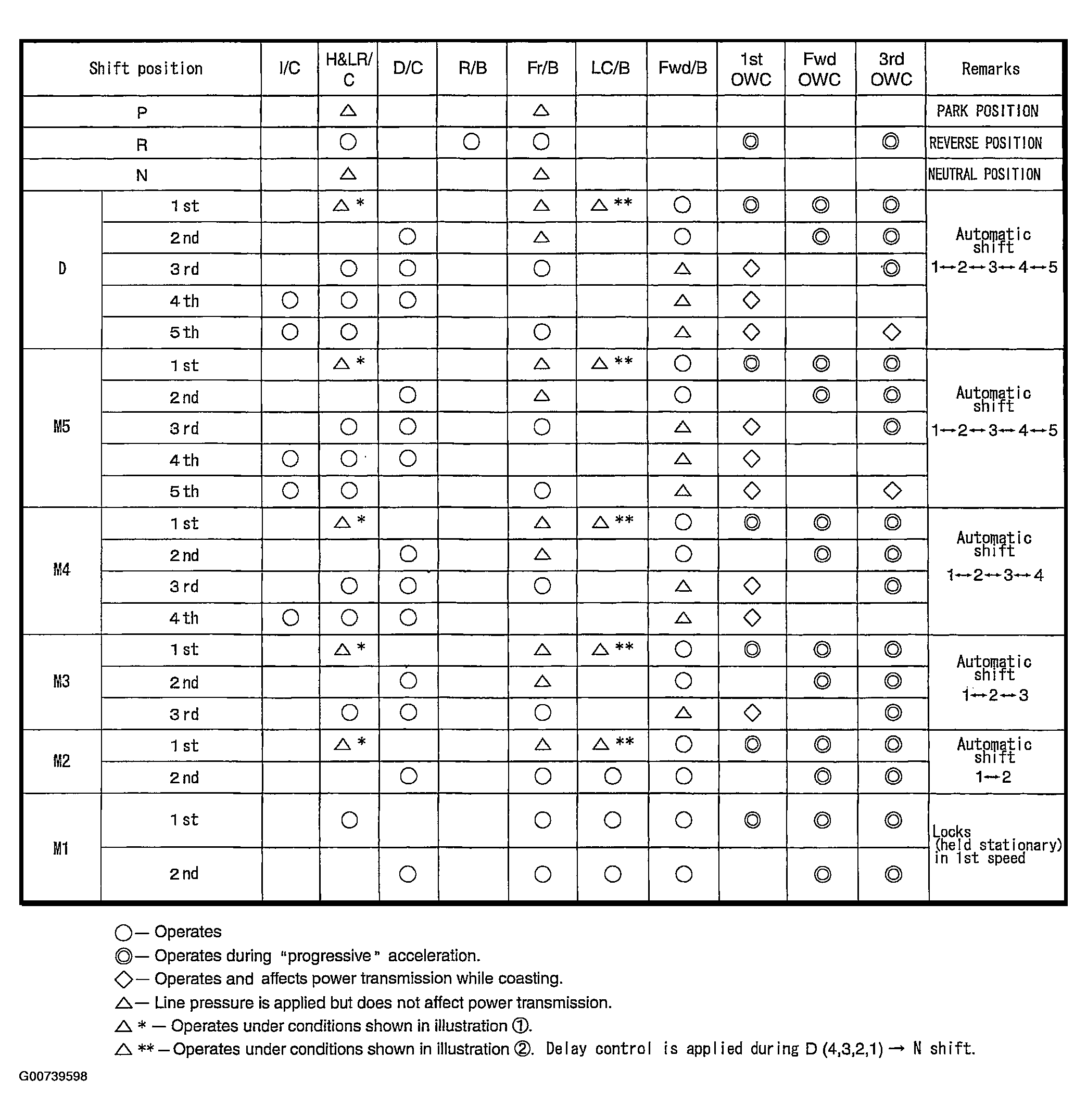

Fig 1: Clutch And Band Chart (1 Of 2)

G00739598

Courtesy of NISSAN MOTOR CO., U.S.A.

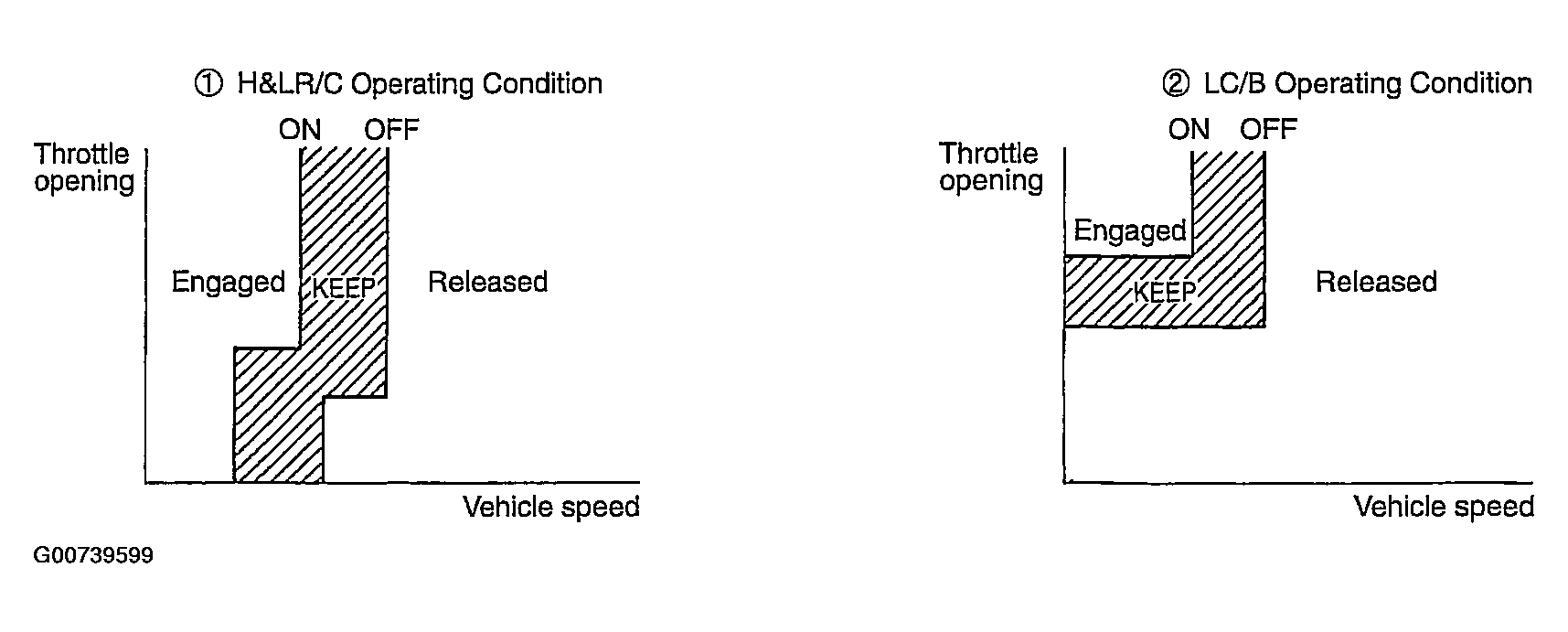

Fig 2: Clutch And Band Chart (2 Of 2)

G00739599

Courtesy of NISSAN MOTOR CO., U.S.A.
