Removal And Installation Of Av And NAVI Control Unit And Av Control Unit (For CANADA With Rear Control Switch )

WARNING: This page is about a different car, the 2002 Infiniti Q45. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the trunk compartment trim.
  2. Remove the screws (4) and remove the AV and NAVI control unit or AV control unit (For CANADA with rear control unit).

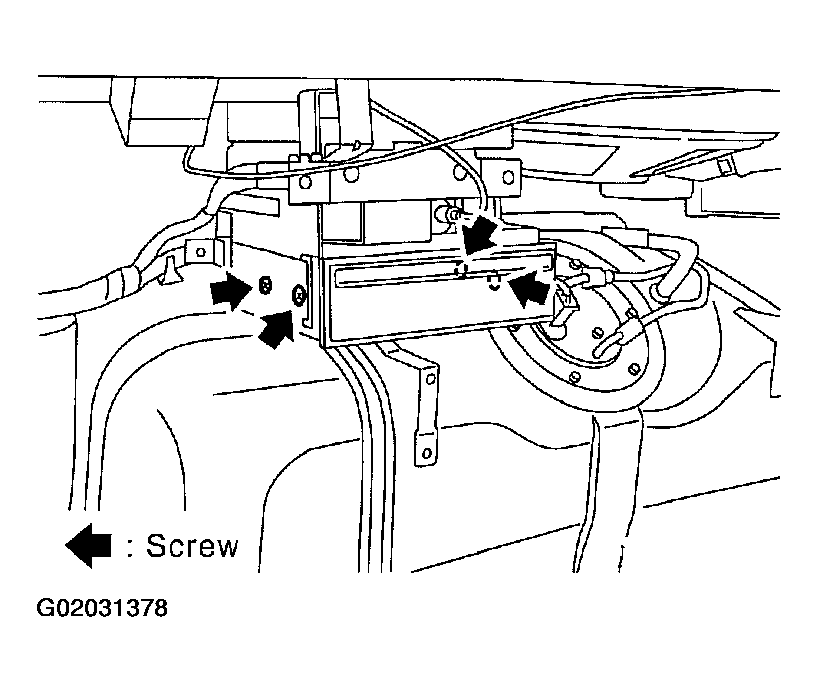

    Fig 1: Removing & Installing AV & NAVI Control Unit (For Canada With Rear Control Switch )
    G02031378Courtesy of NISSAN MOTOR CO., U.S.A.
