8. Check Intake Valve Timing Control Solenoid Valve Power Supply Circuit

1. Reconnect ECM harness connector.
2. Disconnect intake valve timing control solenoid valve harness connector.

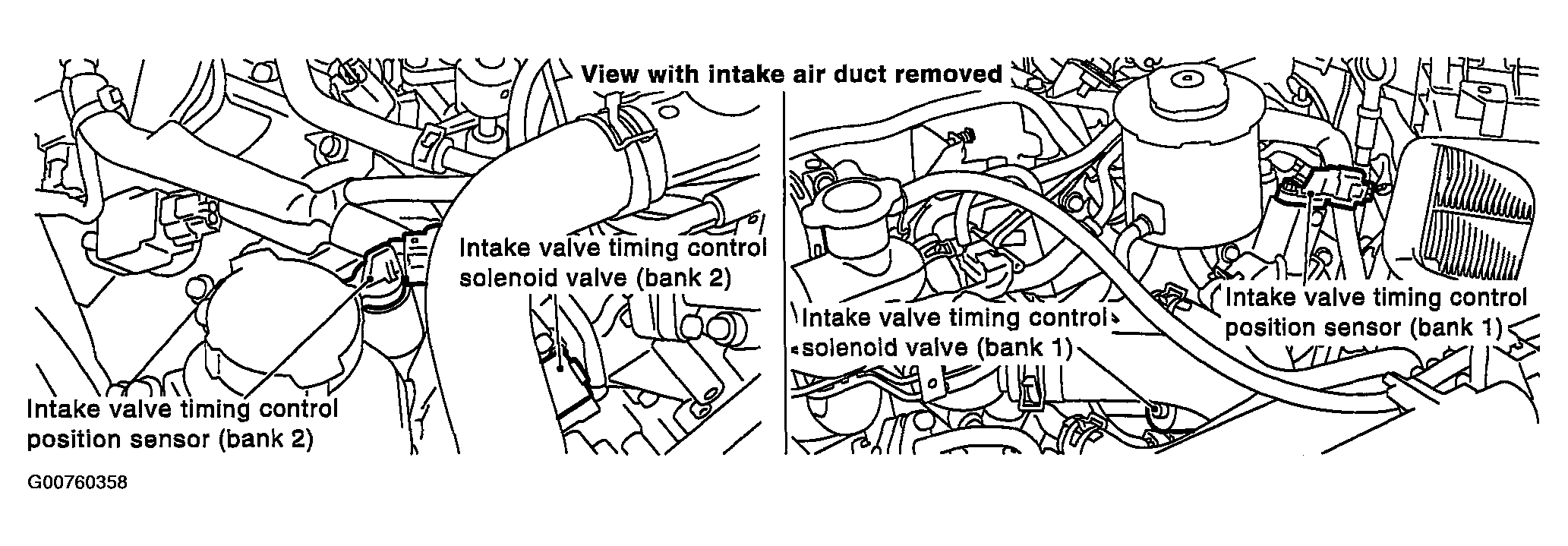

   Fig 1: Locating Intake Valve Timing Control Solenoid Valves

   Courtesy of NISSAN MOTOR CO., U.S.A.
3. Turn ignition switch ON.
4. Check voltage between intake valve timing control solenoid valve terminal 2 and ground with CONSULT-II or tester.
   1. Voltage: Battery voltage

OK or NG

OK: GO TO 10. CHECK INTAKE VALVE TIMING CONTROL SOLENOID VALVE OUTPUT SIGNAL CIRCUIT FOR OPEN AND SHORT .

NG: GO TO 9.

Fig 2: Checking voltage between intake valve timing control solenoid valve terminal 2 & ground

Courtesy of NISSAN MOTOR CO., U.S.A.
