12. Check One-Way Fuel Valve-II

1. Make sure that fuel is drained from the tank.
2. Remove fuel filler tube and hose.
3. Check one-way fuel valve for operation as follows.

   When a stick is inserted, the valve should open, when removing stick it should close.

   Do not drop any material into the tank.

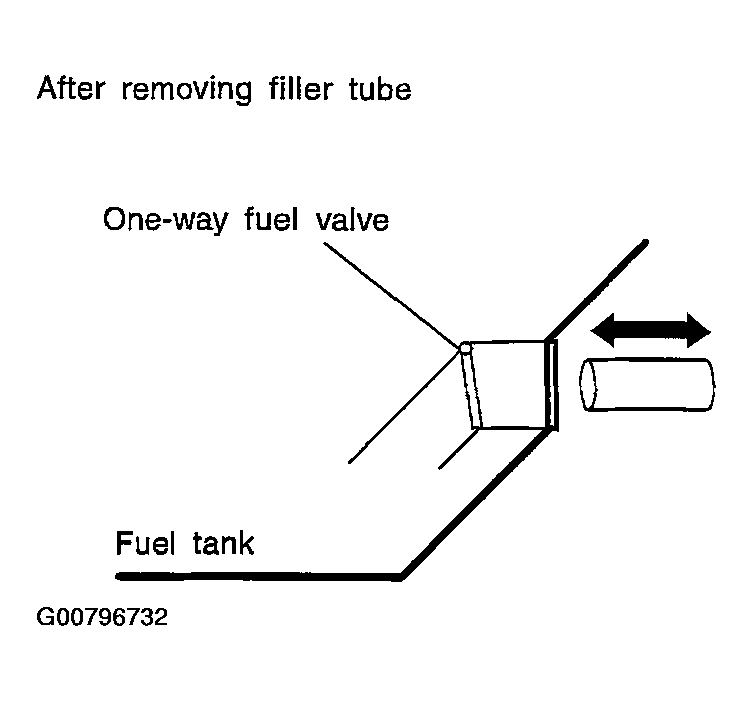

Fig 1: Checking One-way Fuel Valve For Operation
Courtesy of NISSAN MOTOR CO., U.S.A.

OK or NG

1. OK: INSPECTION END
2. NG: Replace fuel filler tube or replace one-way fuel valve with fuel tank.
