1. Check Rubber Tube

  1. Turn ignition switch OFF.
  2. Disconnect rubber tube connected to EVAP canister vent control valve.

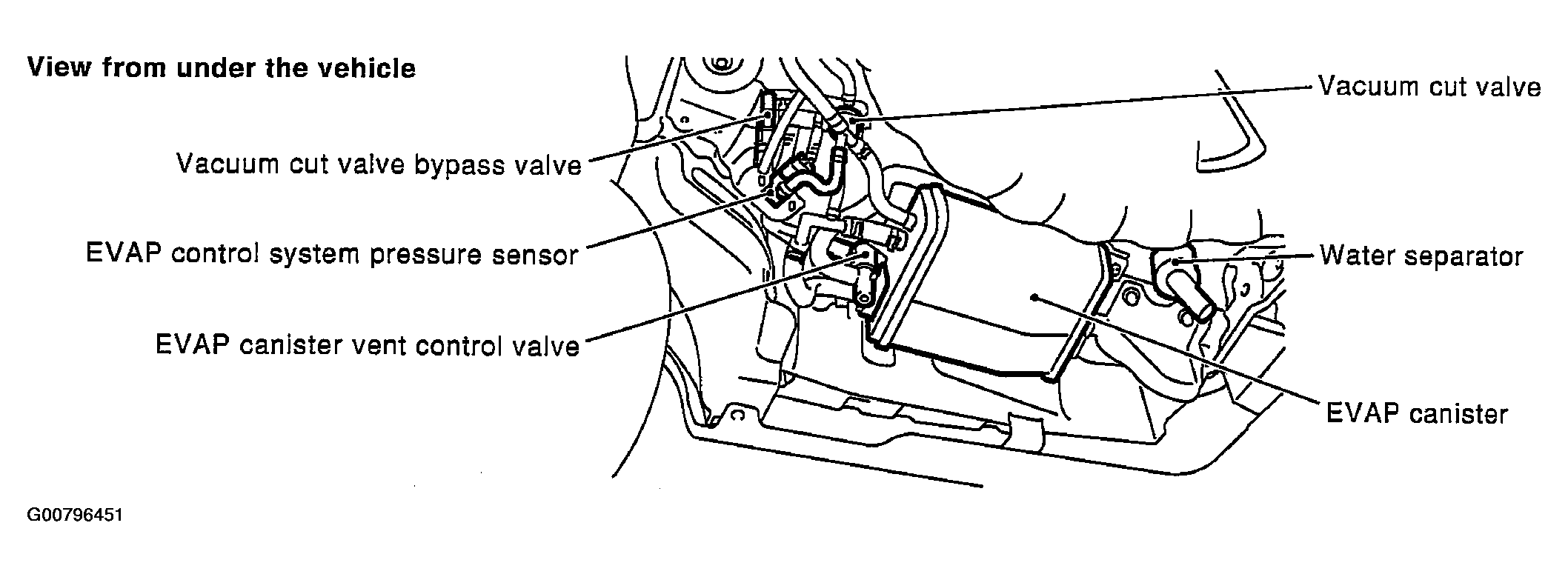

    Fig 1: Identifying EVAP Canister Vent Control Valve
    G00796451Courtesy of NISSAN MOTOR CO., U.S.A.
  3. Check the rubber tube for clogging.

OK or NG

  1. OK: GO TO 2.
  2. NG: Clean rubber tube using an air blower.
