1. Check Power Supply Circuit

1. Turn ignition switch OFF.
2. Disconnect intake valve timing control solenoid valve harness connector.

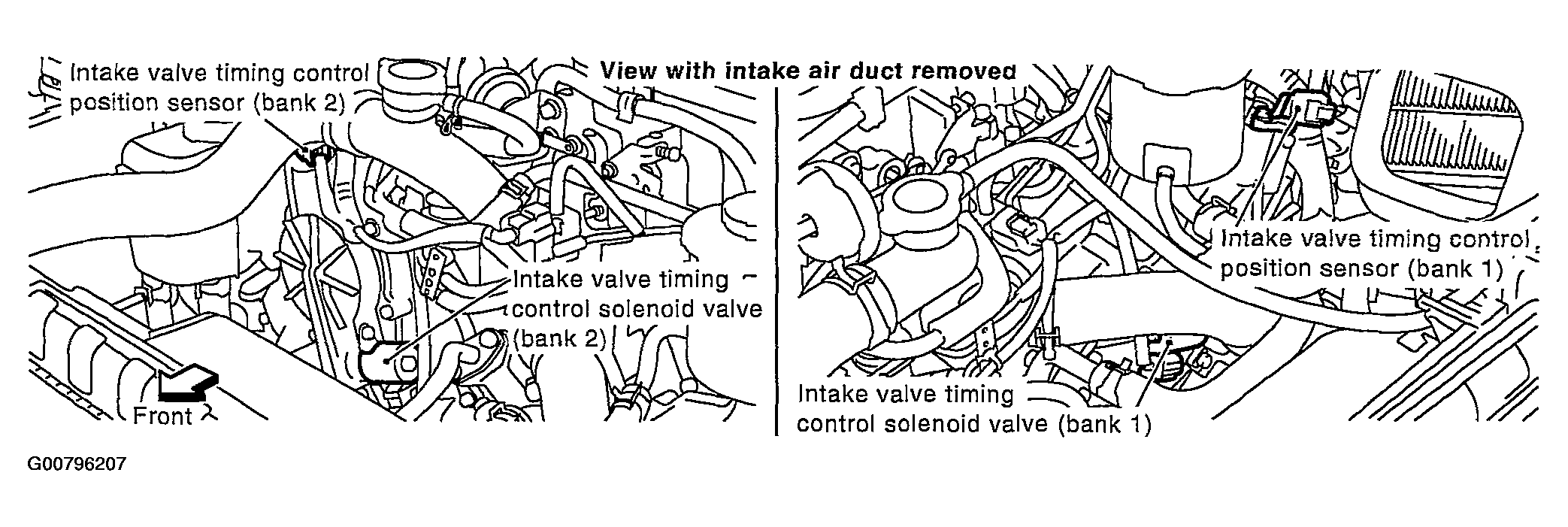

   Fig 1: Identifying Intake Valve Timing Control Solenoid Valve

   Courtesy of NISSAN MOTOR CO., U.S.A.
3. Turn ignition switch ON.
4. Check voltage between intake valve timing control solenoid valve terminal 2 and ground with CONSULT-II or tester.

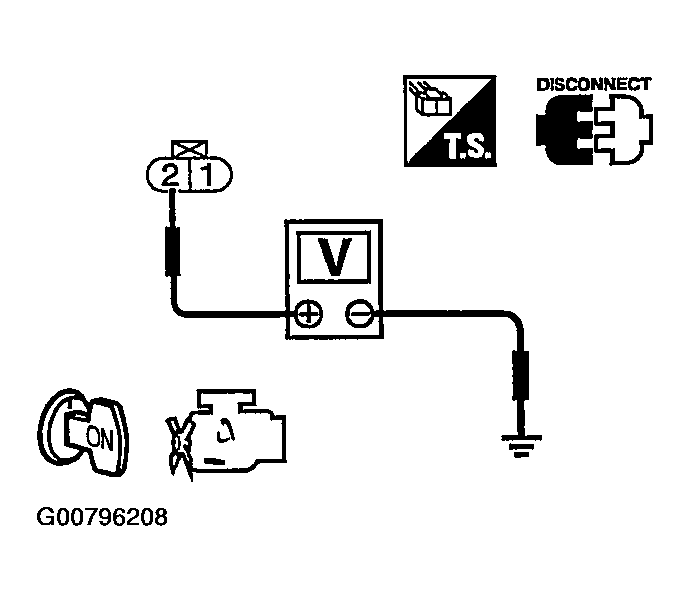

   Fig 2: Checking Voltage Between Intake Valve Timing Control Solenoid Valve Terminal 2 & Ground

   Courtesy of NISSAN MOTOR CO., U.S.A.

   Voltage: Battery voltage

OK or NG

1. OK: GO TO 3. CHECK INTAKE VALVE TIMING CONTROL SOLENOID VALVE OUTPUT SIGNAL CIRCUIT FOR OPEN AND SHORT .
2. NG: GO TO 2.
