Oil Pump

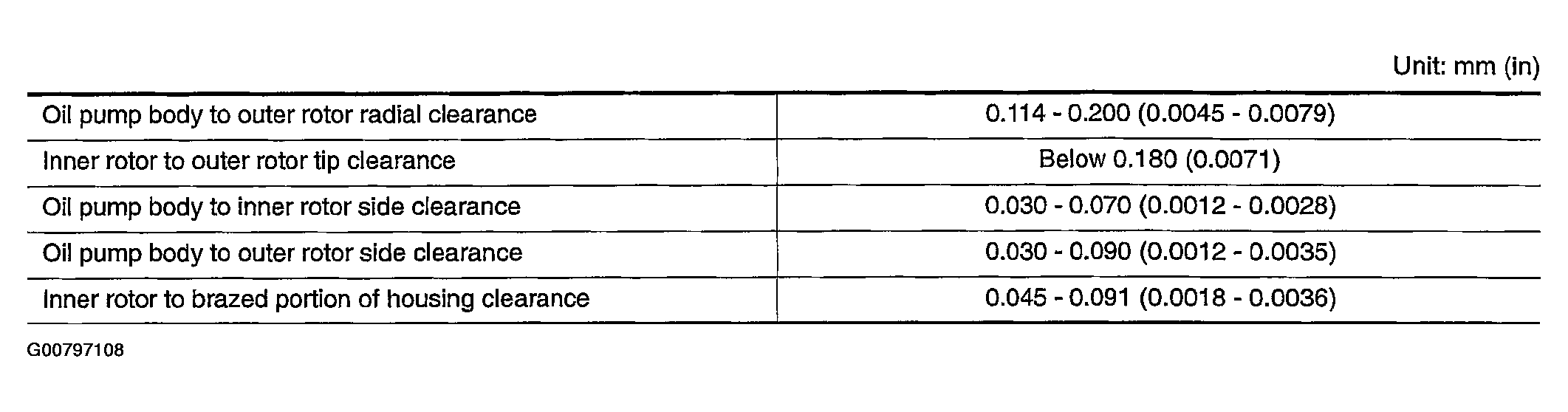

Fig 1: Specifying Clearances Of Oil Pump Components

G00797108

Courtesy of NISSAN MOTOR CO., U.S.A.
