Intelligent Cruise Control System: Wiring Diagram: Schematic

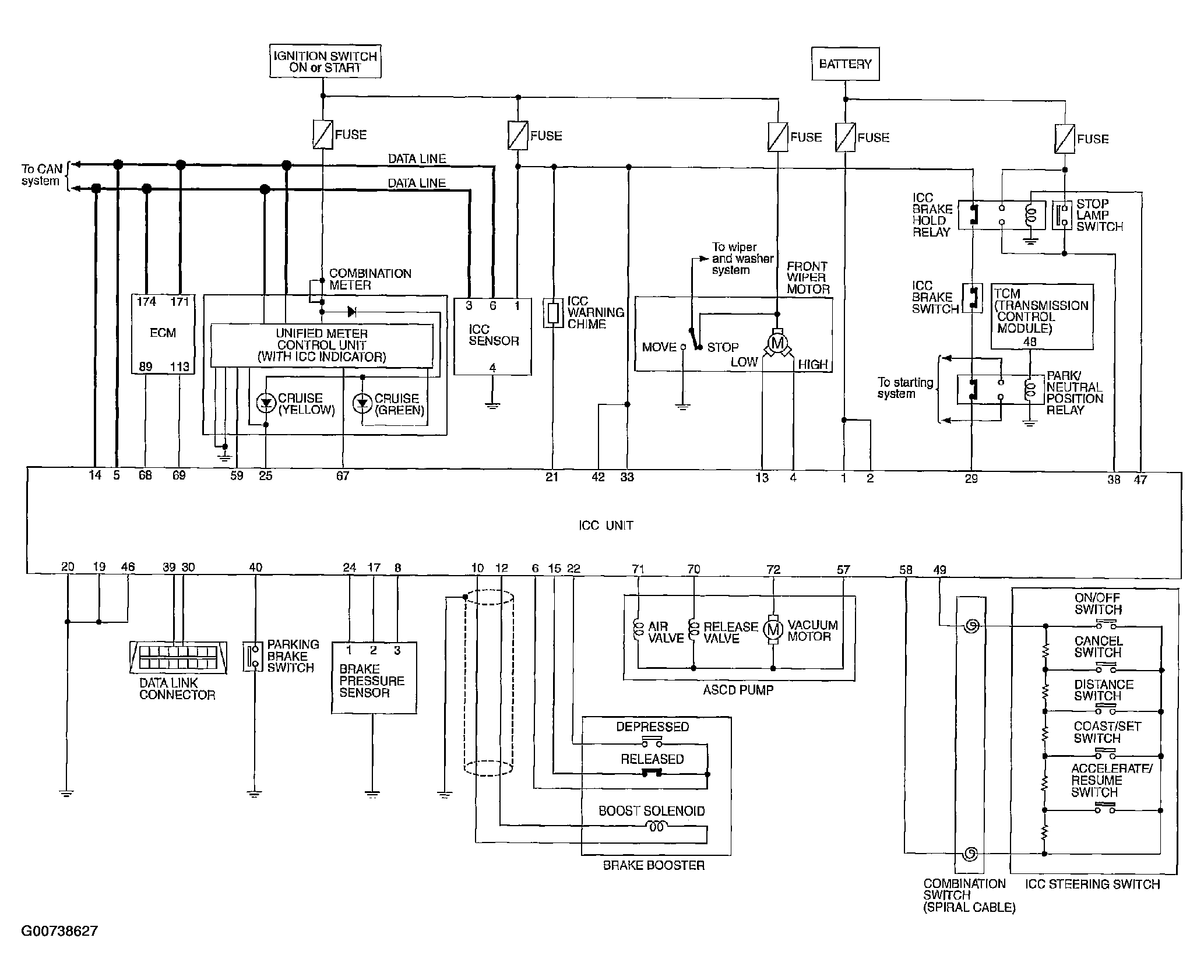

Fig 1: Wiring Diagram Schematic

G00738627

Courtesy of NISSAN MOTOR CO., U.S.A.
