ICC Steering Switch
Disconnect ICC steering switch.
Check resistance between ICC steering switch terminals 1 and 2 by depressing each switch.

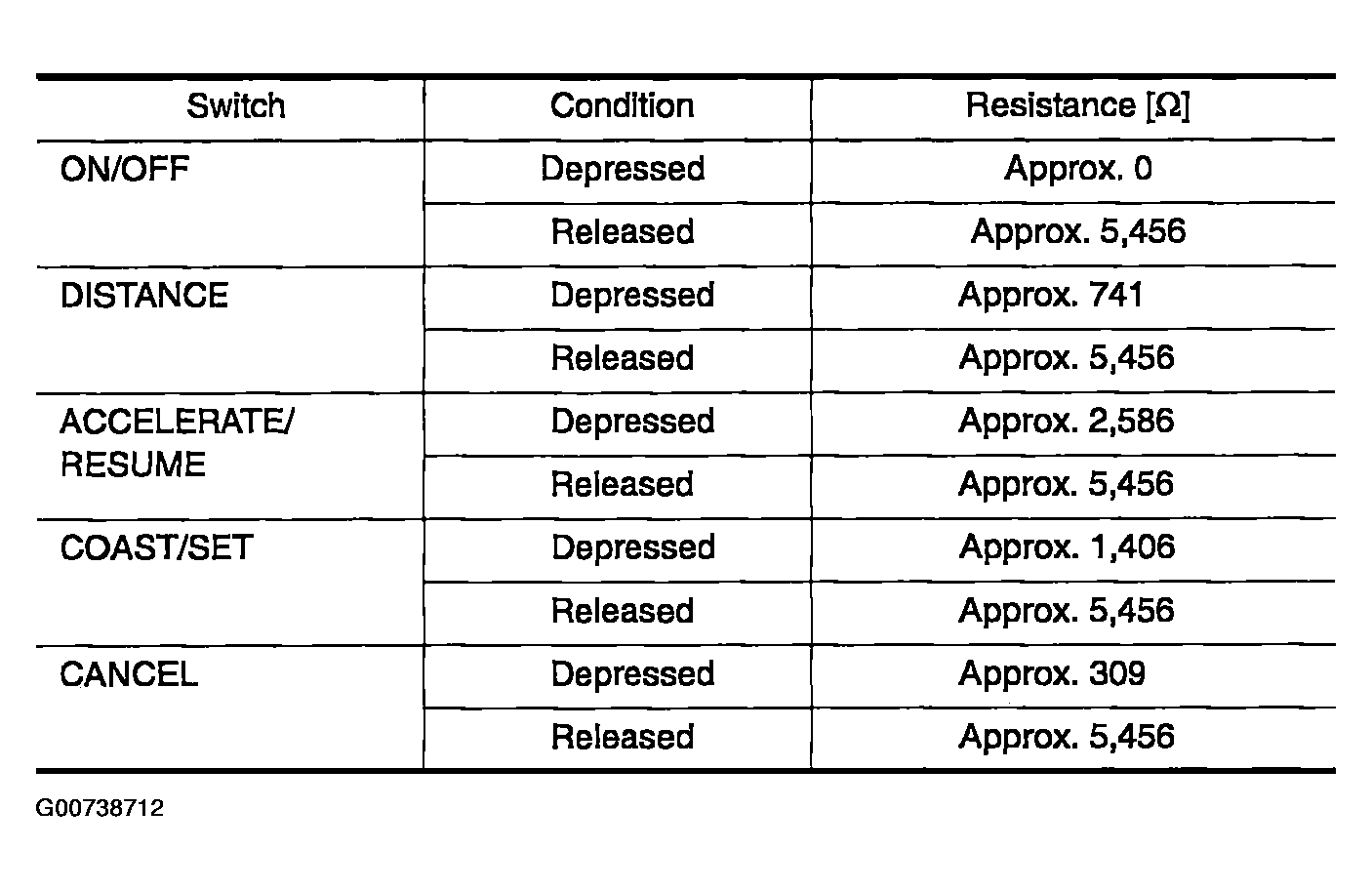

Fig 1: ICC Steering Switch Operation Chart
Courtesy of NISSAN MOTOR CO., U.S.A.

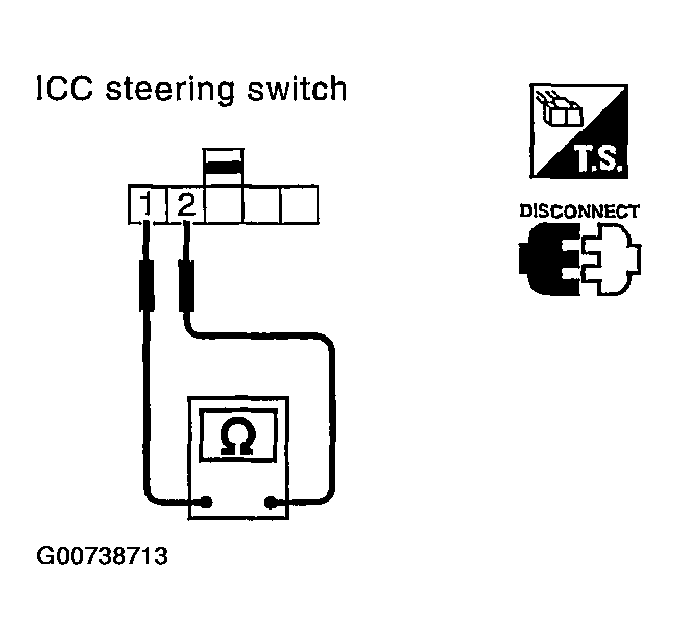

Fig 2: Check Resistance Between ICC Steering Switch Terminals
Courtesy of NISSAN MOTOR CO., U.S.A.
