TCM Terminals And Reference Value

Remarks: Specification data are reference values.

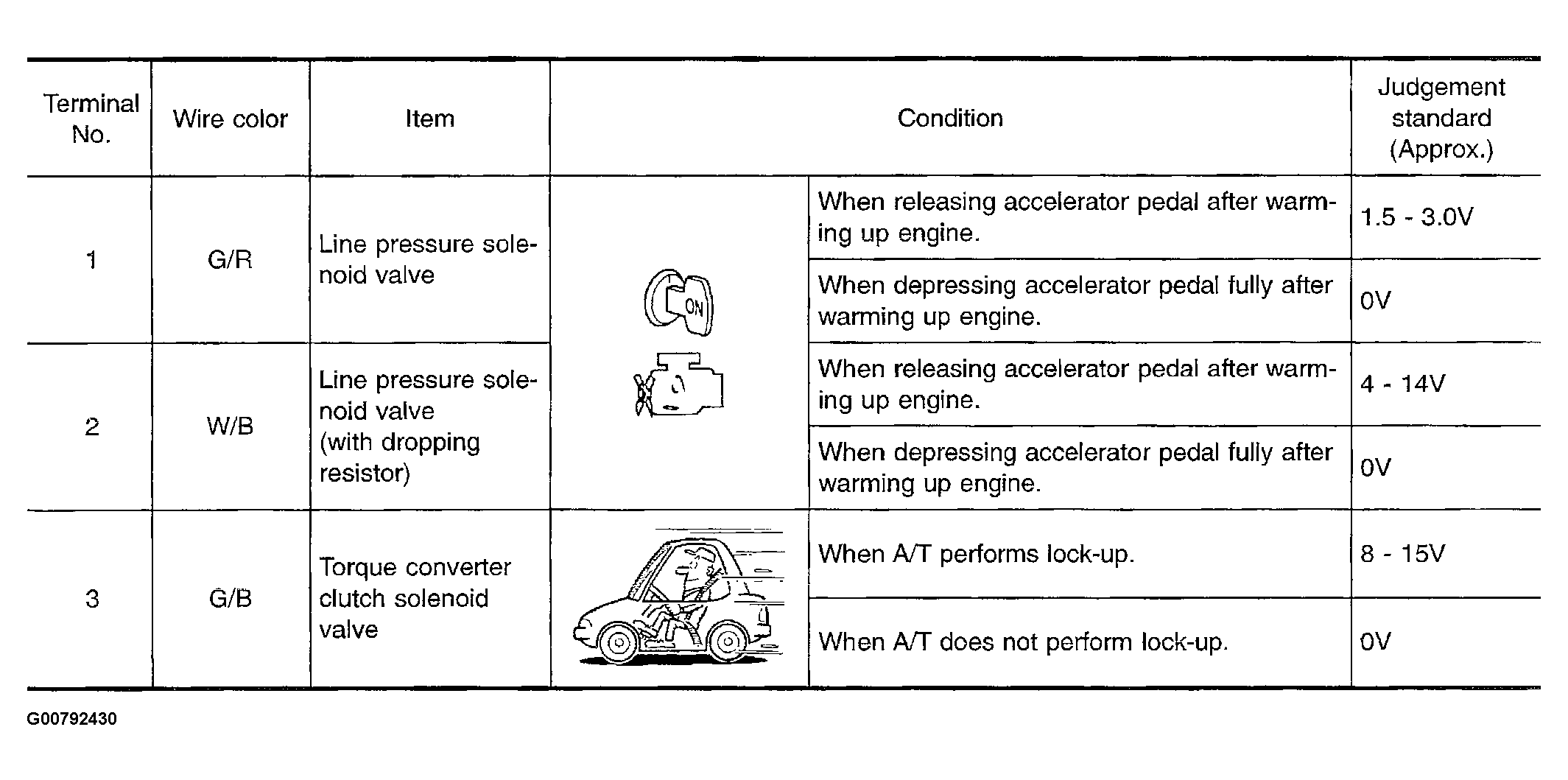

Fig 1: Identifying TCM Terminals And Reference Value

G00792430

Courtesy of NISSAN MOTOR CO., U.S.A.
