Wiring Diagram - CAN

WARNING: This page is about a different car, the 2003 Infiniti I35. However, it is still accessible from the selected car via links, so may be relevant.

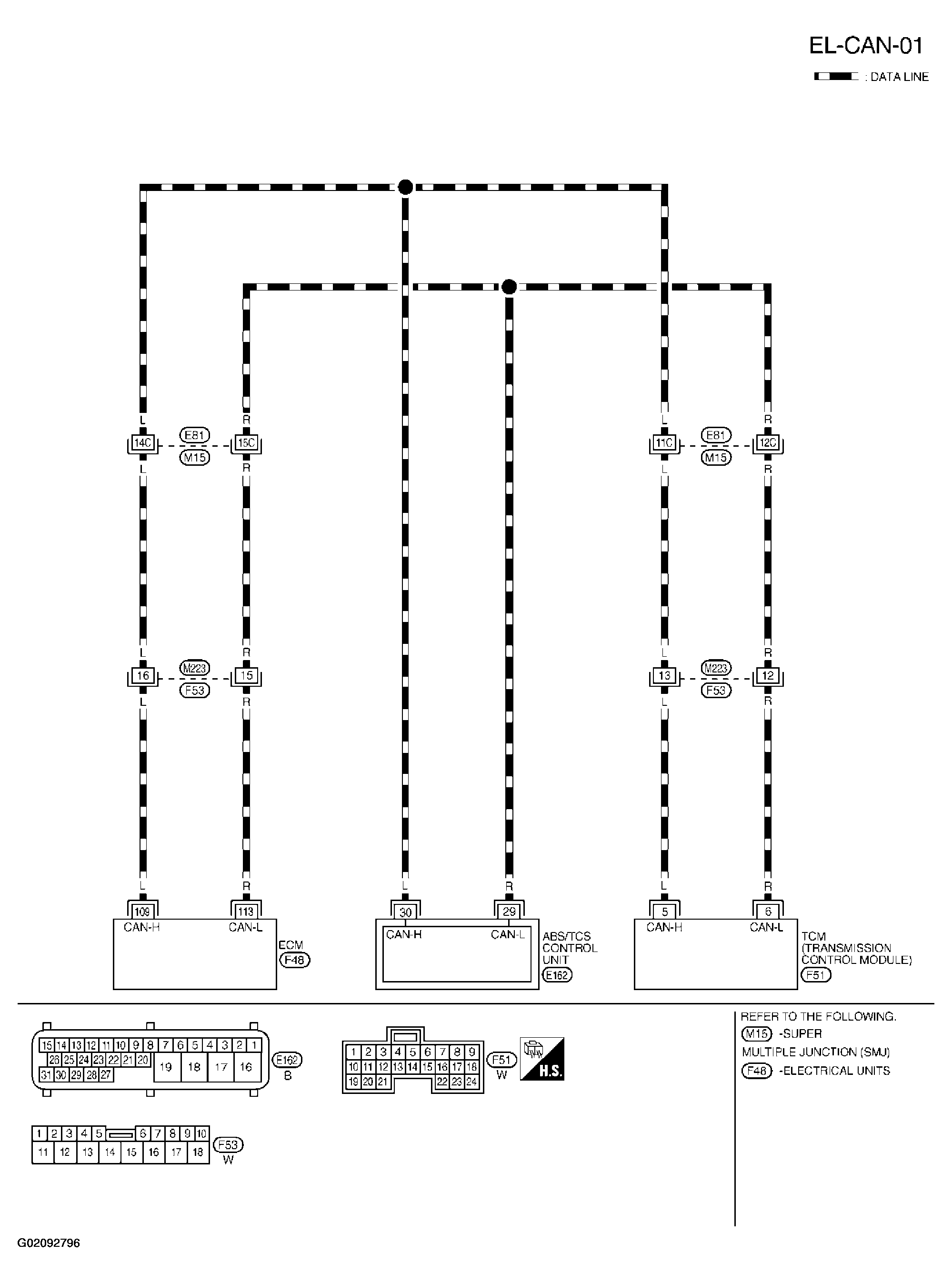

Fig 1: Wiring Diagram - CAN System For TCS Models
G02092796Courtesy of NISSAN MOTOR CO., U.S.A.
