4 Check Lifting Encoder (Front) Short Circuit

Check harness continuity between seat control unit LH connector and ground.

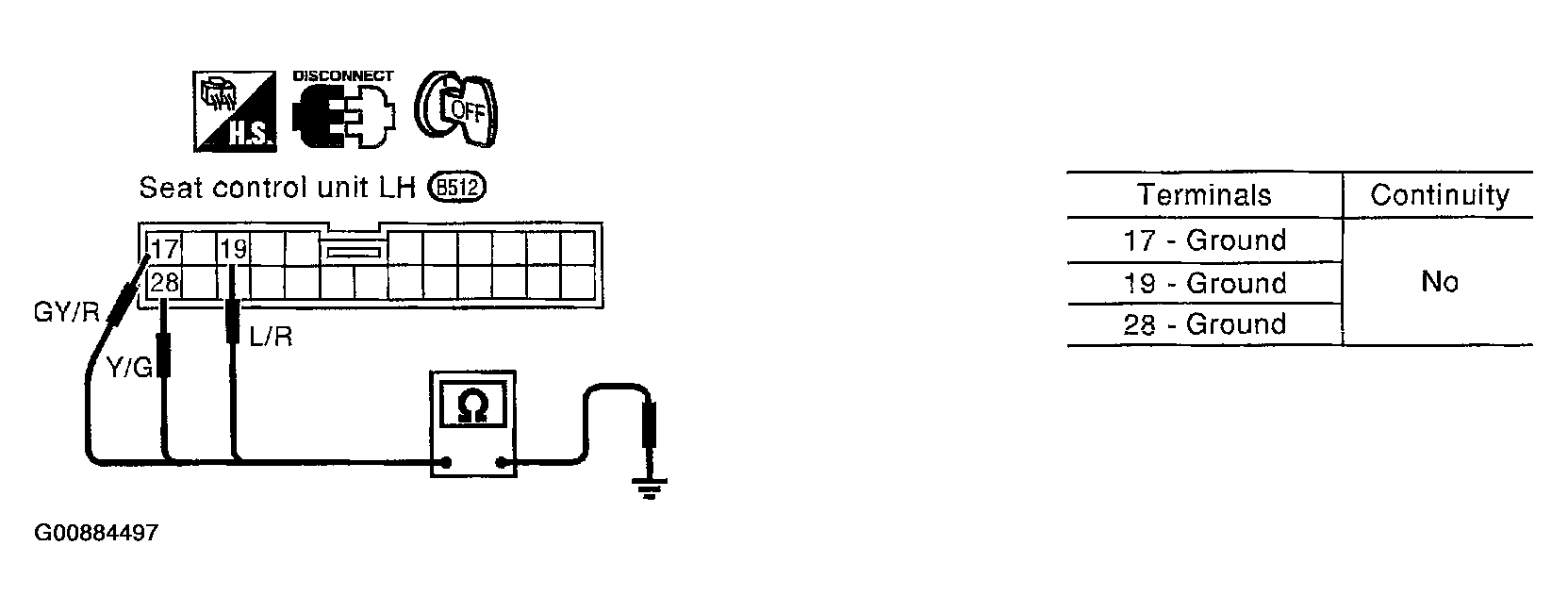

Fig 1: Checking Lifting Encoder (Front) For Short Circuit
G00884497Courtesy of NISSAN MOTOR CO., U.S.A.

OK or NG

OK: Replace lifting encoder (front).

NG: Repair harness.
