3 Check Lifting Encoder (Front) Open Circuit

1. Disconnect seat control unit LH connector and front lifting device LH connector.
2. Check harness continuity between seat control unit LH connector and front lifting device LH connector.

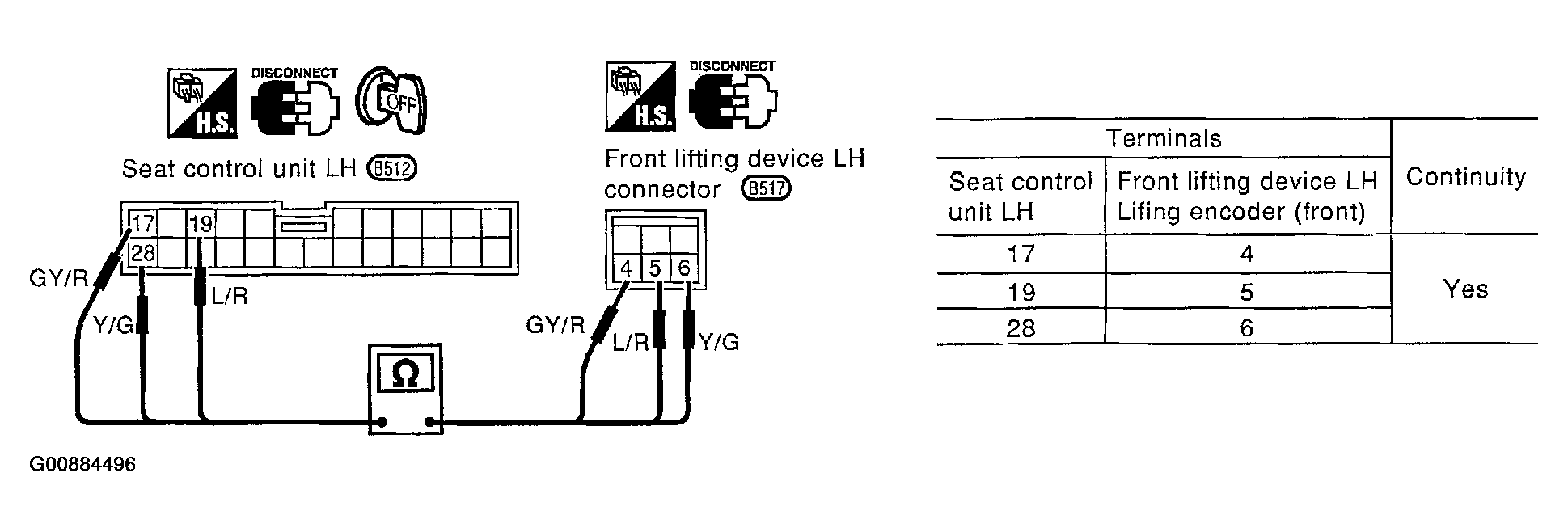

   Fig 1: Checking Lifting Encoder (Front) For Open Circuit

   Courtesy of NISSAN MOTOR CO., U.S.A.

OK or NG

OK: GO TO 4.

NG: Repair harness.
