1 Check Lifting Encoder (Front) Output Signal

(Lifting Encoder (Front) Check)

Measure voltage between seat control unit LH terminal 19 and ground with CONSULT-II or oscilloscope when power seat lifting (front) is operated.

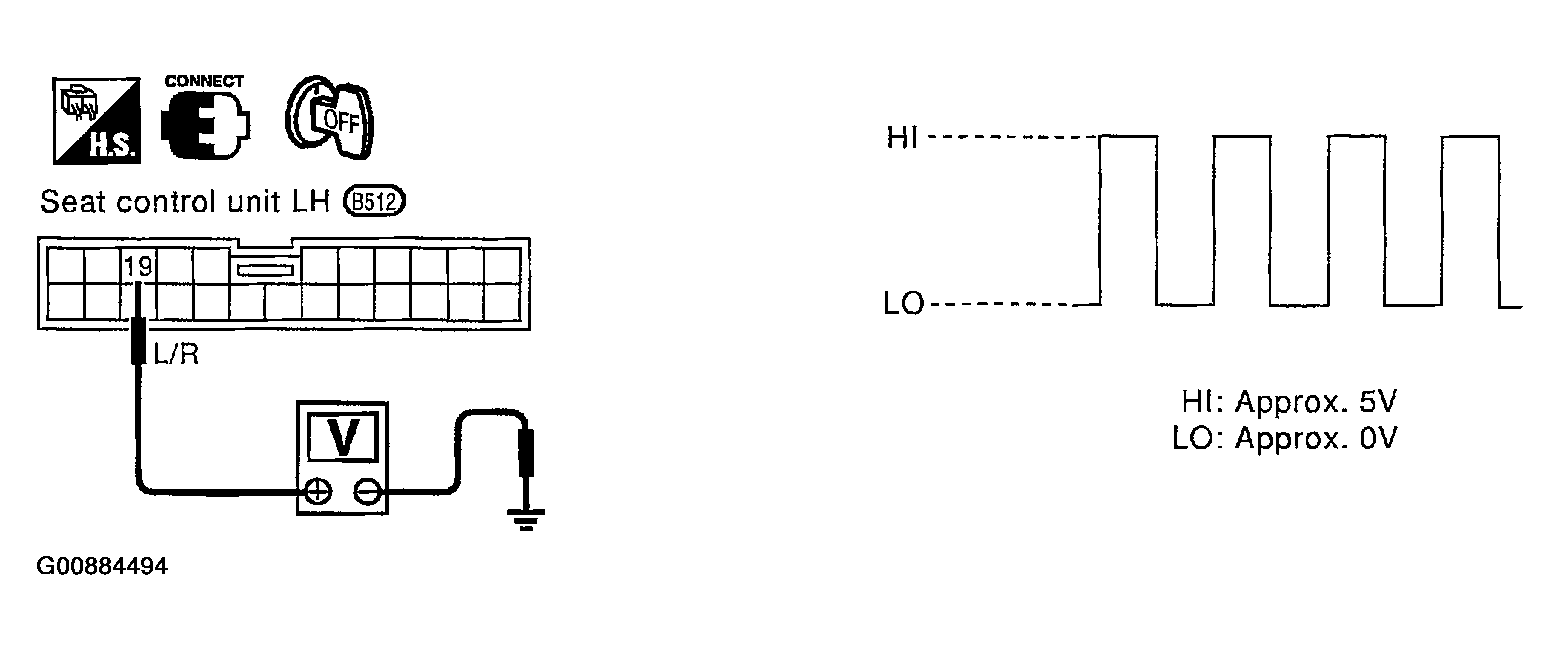

Fig 1: Checking Lifting Encoder (Front) For Output Signal
G00884494Courtesy of NISSAN MOTOR CO., U.S.A.

OK or NG

OK: Lifting encoder (front) is OK.

NG: GO TO 2.
