Main 12 Causes Of Overheating

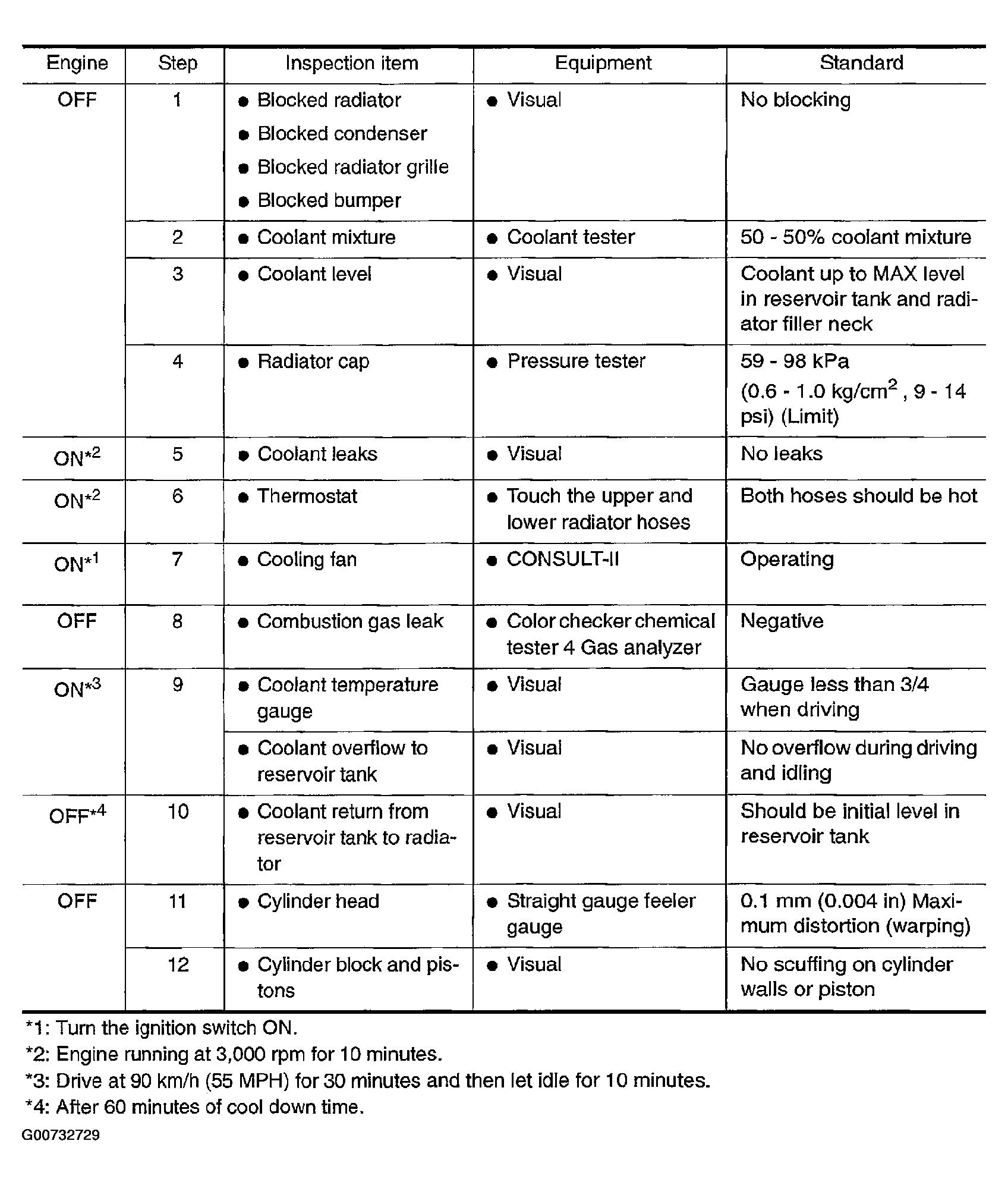

Fig 1: Main 12 Causes Of Overheating

G00732729

Courtesy of NISSAN MOTOR CO., U.S.A.

For more information, Refer to OVERHEATING CAUSE ANALYSIS .
