Testing Condition:

Steps 1 and 2 may be conducted with the drive wheels lifted in the shop or by driving the vehicle. If a road test is expected to be easier, it is unnecessary to lift the vehicle.

With CONSULT-II

1. Start engine (VDC switch OFF).
2. Read "VHCL SPEED SE" in "DATA MONITOR" mode with CONSULT-II. The vehicle speed on CONSULT-II should exceed 10 km/h (6 MPH) when rotating wheels with suitable gear position.

   If NG, go to Diagnostic Procedure .

   If OK, go to following step.

3. Select "DATA MONITOR" mode with CONSULT-II.
4. Warm engine up to normal operating temperature.
5. Maintain the following conditions for at least 60 consecutive seconds.

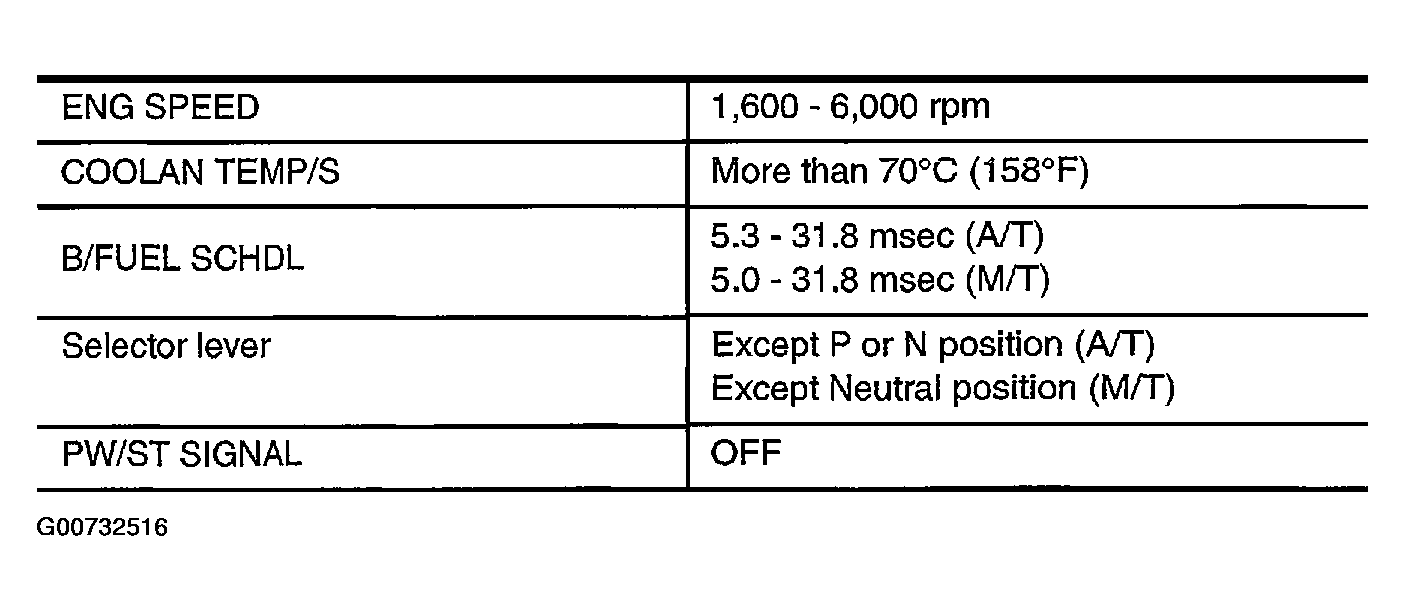

   Fig 1: Testing Condition - Reference Data Table

   Courtesy of NISSAN MOTOR CO., U.S.A.

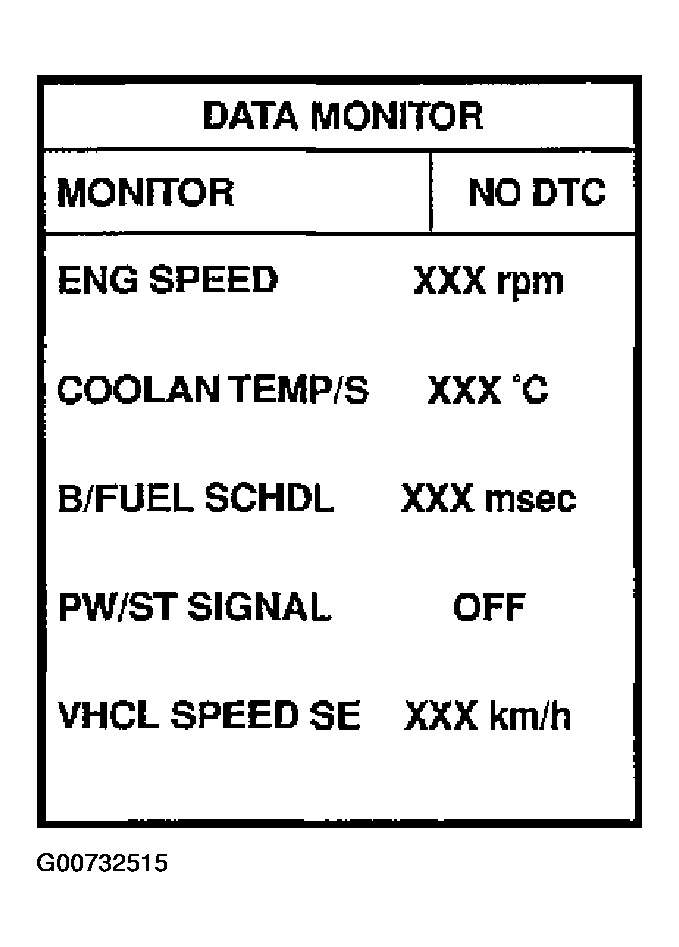

   Fig 2: CONSULT-II Data Monitor Display

   Courtesy of NISSAN MOTOR CO., U.S.A.
6. If 1st trip DTC is detected, go to Diagnostic Procedure .
