On Board Diagnosis Logic

Under normal conditions (non-closed throttle), sensor output voltage indicates if pressure drop and purge flow are adequate. If not, a malfunction is determined.

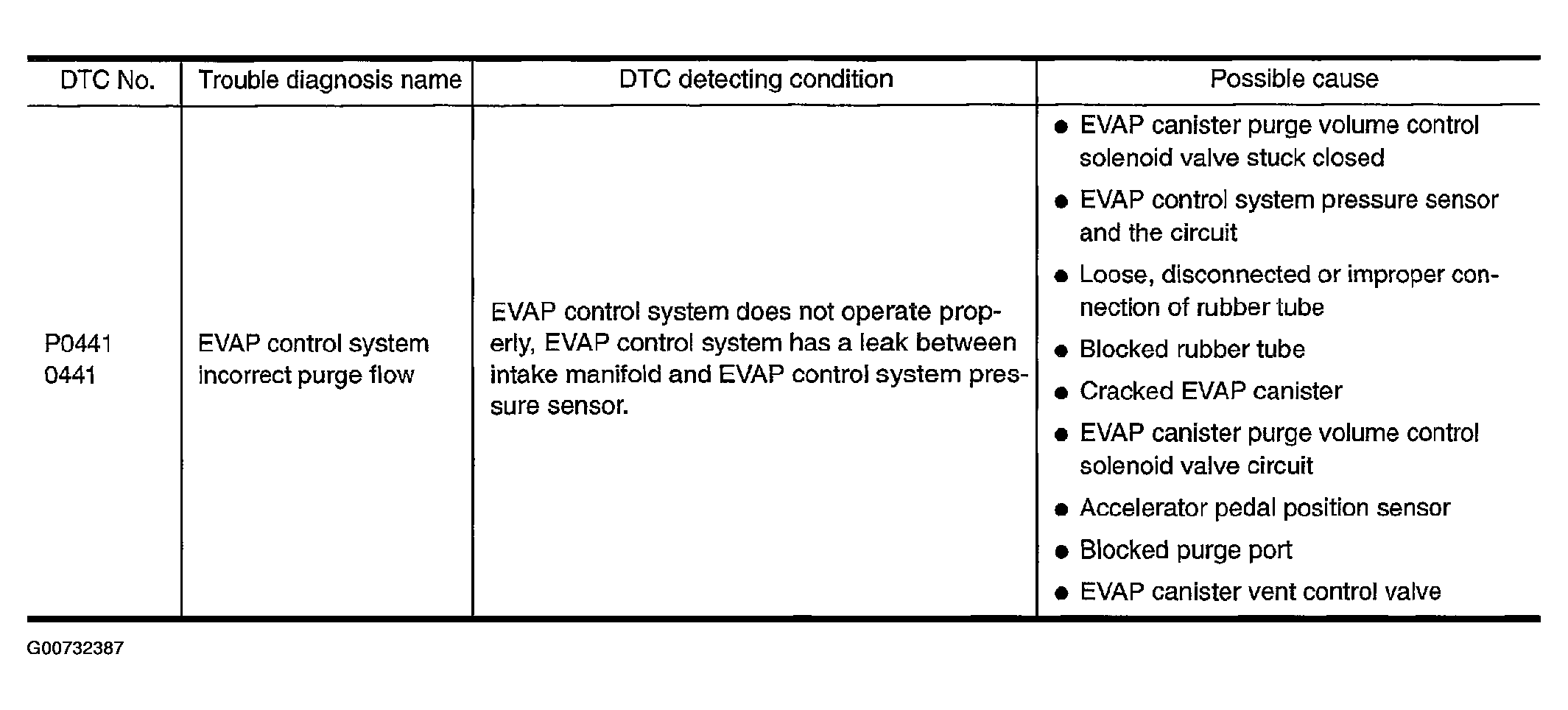

Fig 1: Diagnosis Procedure DTC P0441 - Possible Cause Table

Courtesy of NISSAN MOTOR CO., U.S.A.
