CONSULT-II Reference Value in Data Monitor Mode

Specification data are reference values.

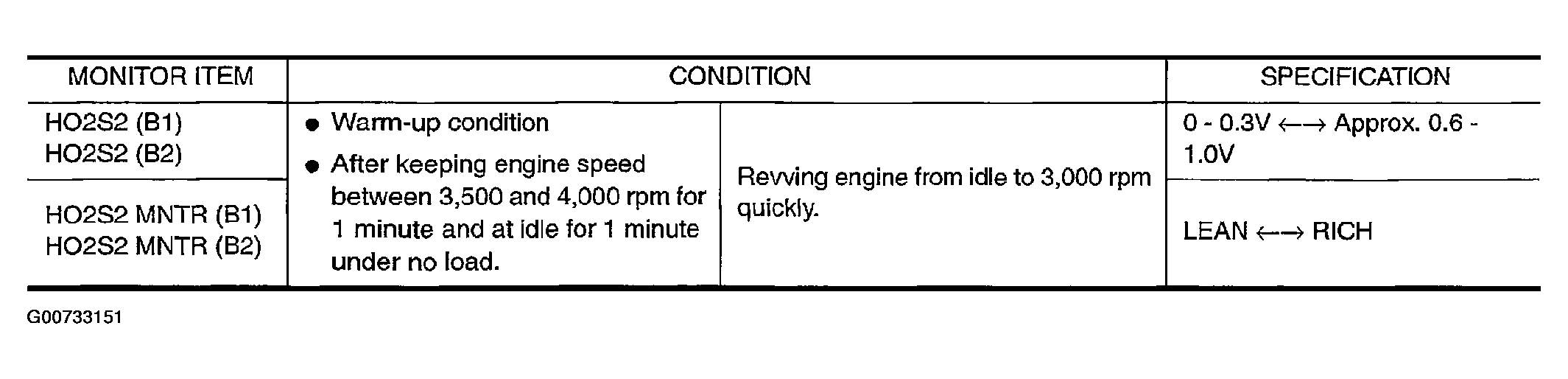

Fig 1: Diagnosis Procedure DTC P0138, P0158 H02S2 - Specification Data And Reference Values
G00733151Courtesy of NISSAN MOTOR CO., U.S.A.
