CONSULT-II Reference Value in Data Monitor Mode

Specification data are reference values.

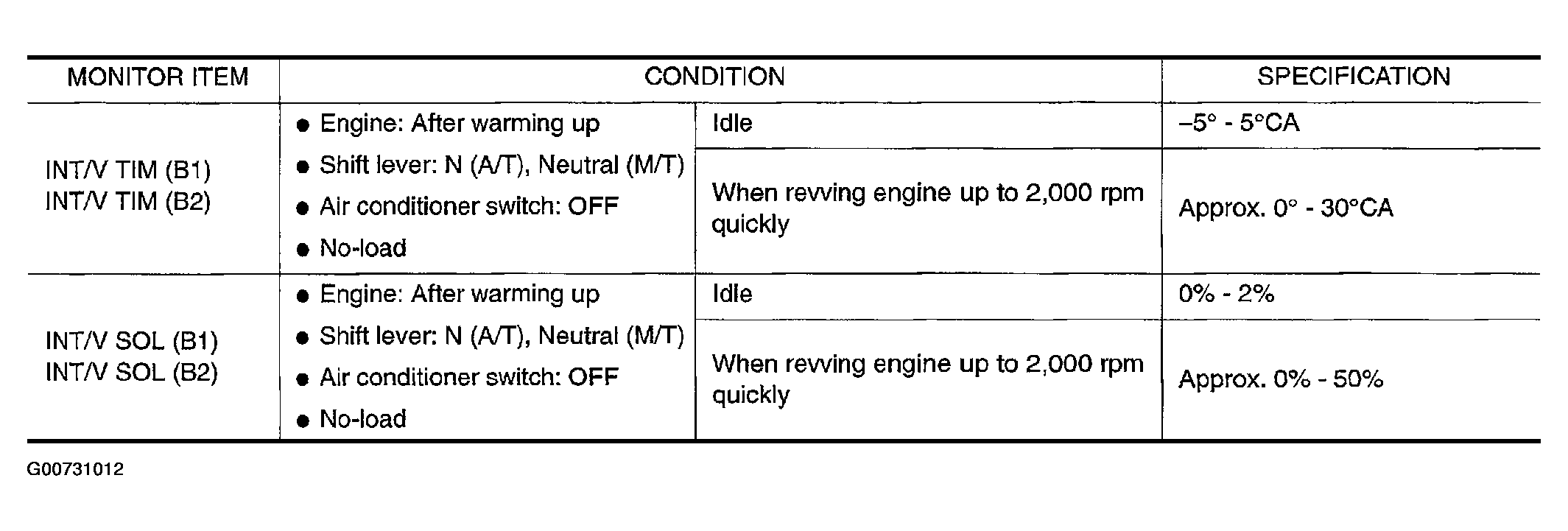

Fig 1: Specification Data And Reference Values Table

G00731012

Courtesy of NISSAN MOTOR CO., U.S.A.
