Overall Inspection Sequence

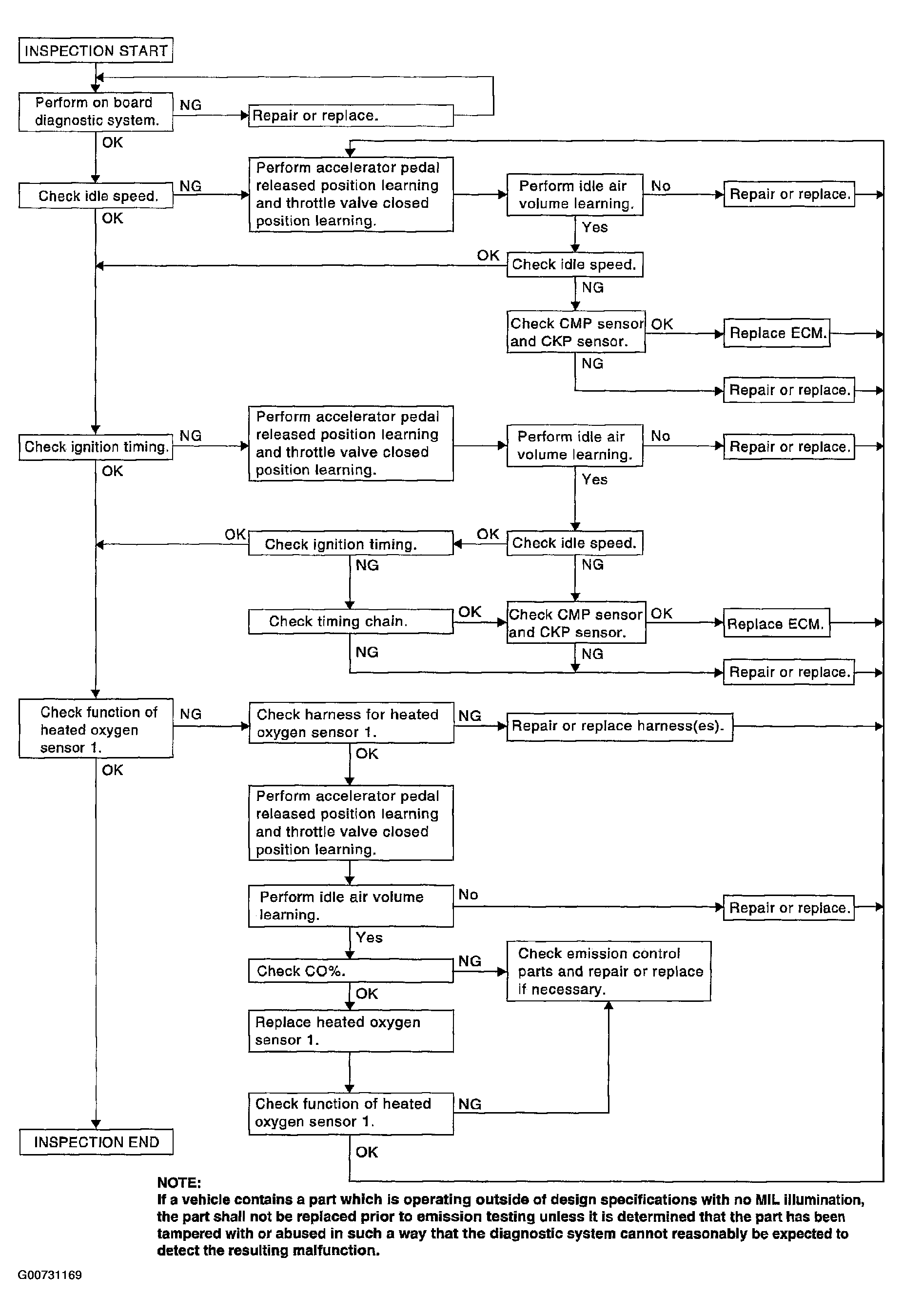

Fig 1: Overall Inspecting Sequence Chart
G00731169Courtesy of NISSAN MOTOR CO., U.S.A.
