Terminal And Reference Value For BCM/With Front And Rear Power Window Anti-Pinch

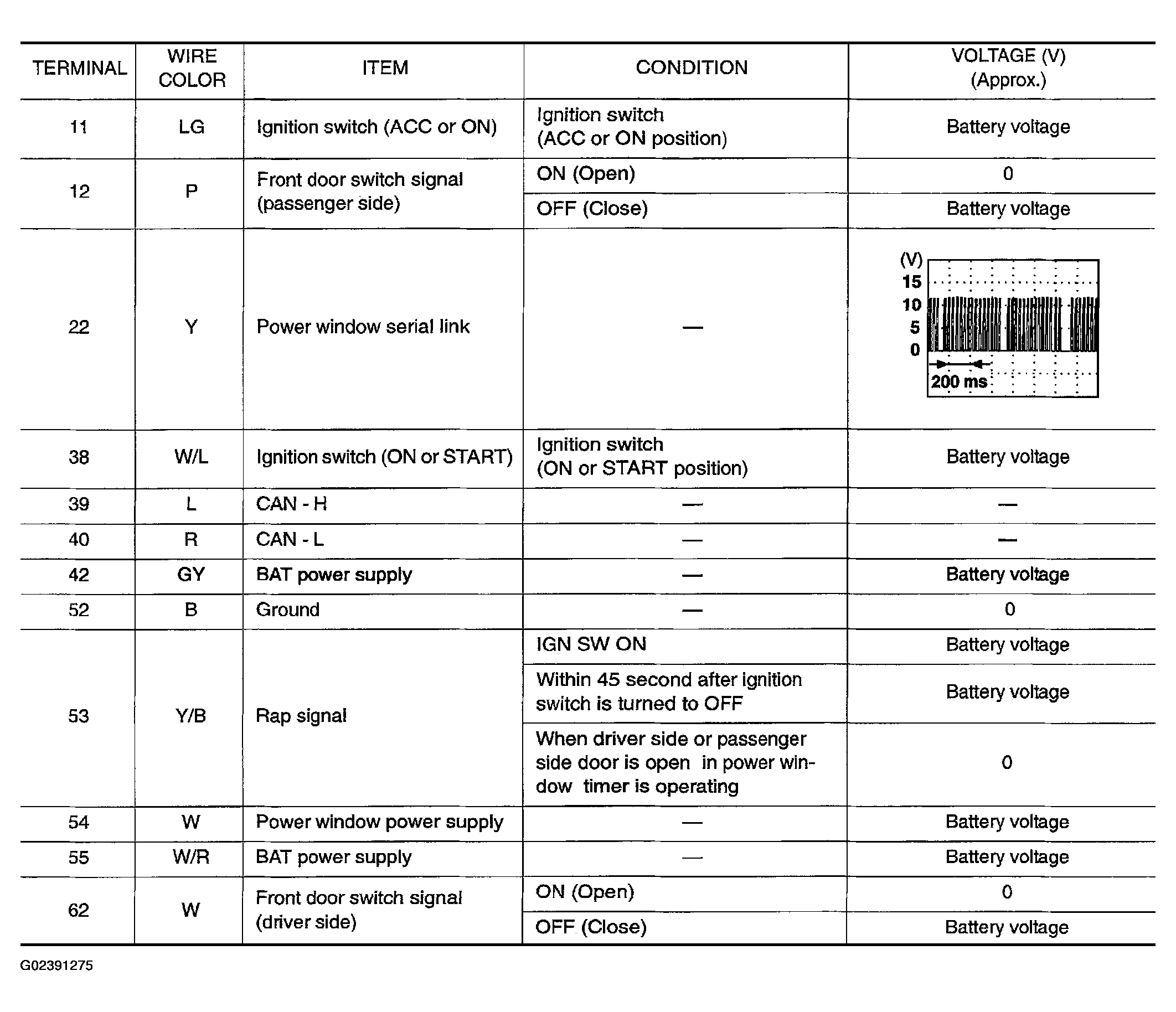

Fig 1: BCM Terminal And Reference Value Table - With Front And Rear Power Window Anti-Pinch

Courtesy of NISSAN MOTOR CO., U.S.A.
