Mil And Data Link Connector: Wiring Diagram

For references to "PG-Power" in wiring diagrams, see GROUND DISTRIBUTION and POWER SUPPLY ROUTING CIRCUIT .

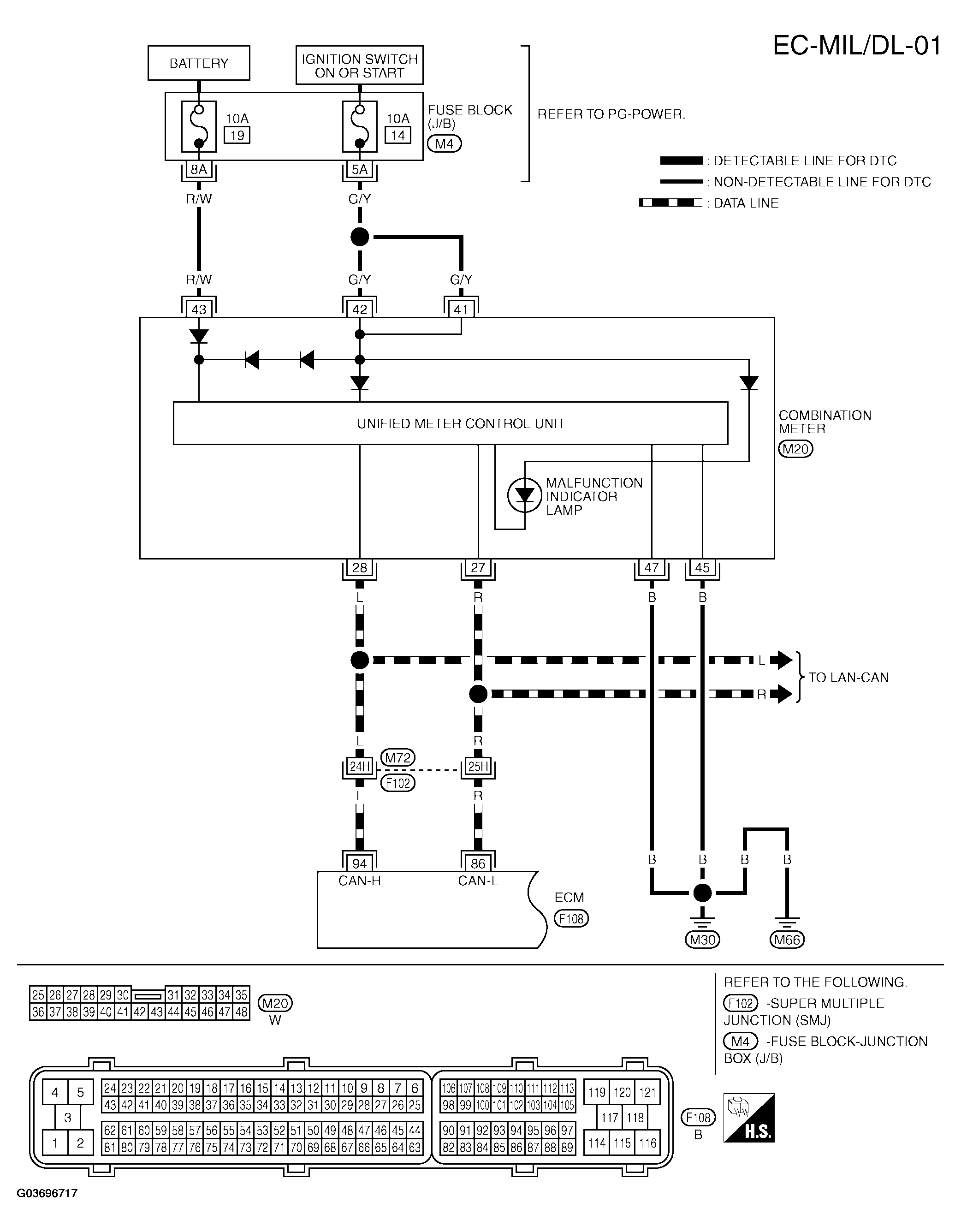

Fig 1: Wiring Diagram - EC-MIL/DL-01

Courtesy of NISSAN MOTOR CO., U.S.A.

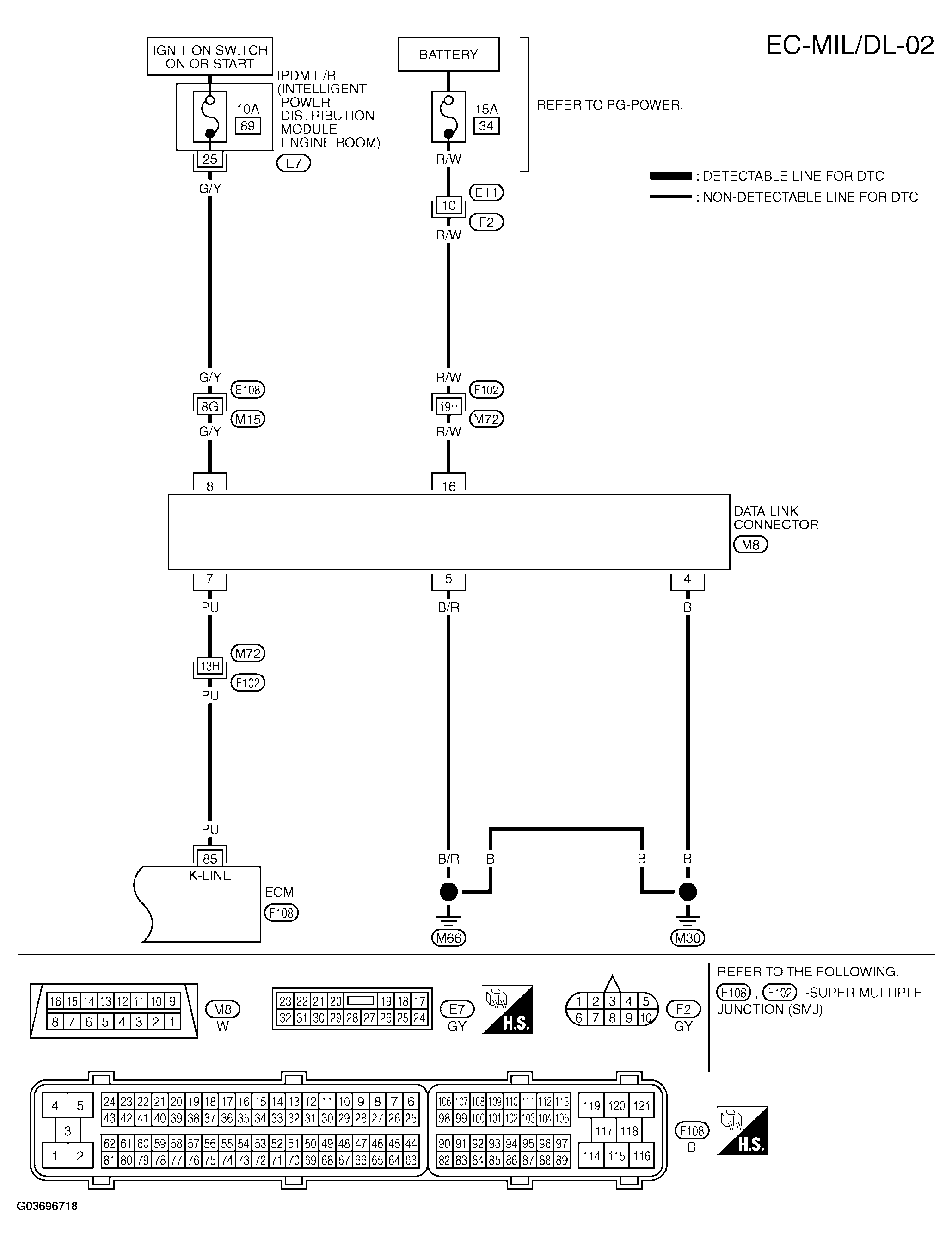

Fig 2: Wiring Diagram - EC-MIL/DL-02

Courtesy of NISSAN MOTOR CO., U.S.A.
