Ignition Signal: Wiring Diagram

For references to "PG-Power" in wiring diagrams, see GROUND DISTRIBUTION and POWER SUPPLY ROUTING CIRCUIT .

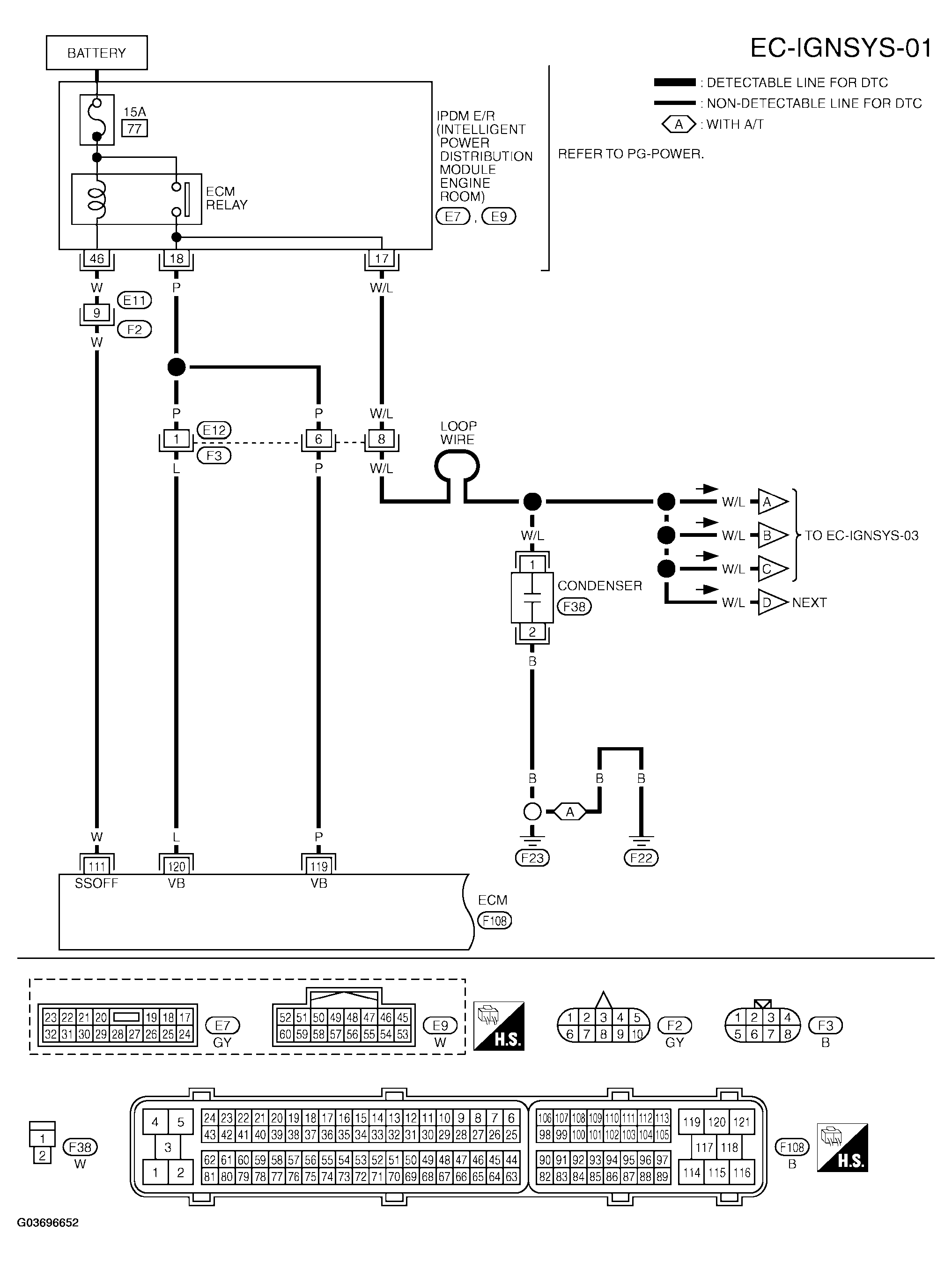

Fig 1: Wiring Diagram - EC-IGNSYS-01

Courtesy of NISSAN MOTOR CO., U.S.A.

Specification data are reference values and are measured between each terminal and ground.

CAUTION: Do not use ECM ground terminals when measuring input/output voltage. Doing so may result in damage to the ECM's transistor. Use a ground other than ECM terminals, such as the ground.

TERMINAL NO SPECIFICATION

TERMINAL NO.	WIRE COLOR	ITEM	CONDITION	DATA (DC Voltage)
111	W	ECM relay (Self shut-off)	[Engine is running] [Ignition switch: OFF] For a few seconds after turning ignition switch OFF	0 - 1.5V
111	W	ECM relay (Self shut-off)	[Ignition switch: OFF] More than a few seconds passed after turning ignition switch OFF	BATTERY VOLTAGE (11 - 14V)
119 120	P L	Power supply for ECM	[Ignition switch: ON]	BATTERY VOLTAGE (11 - 14V)

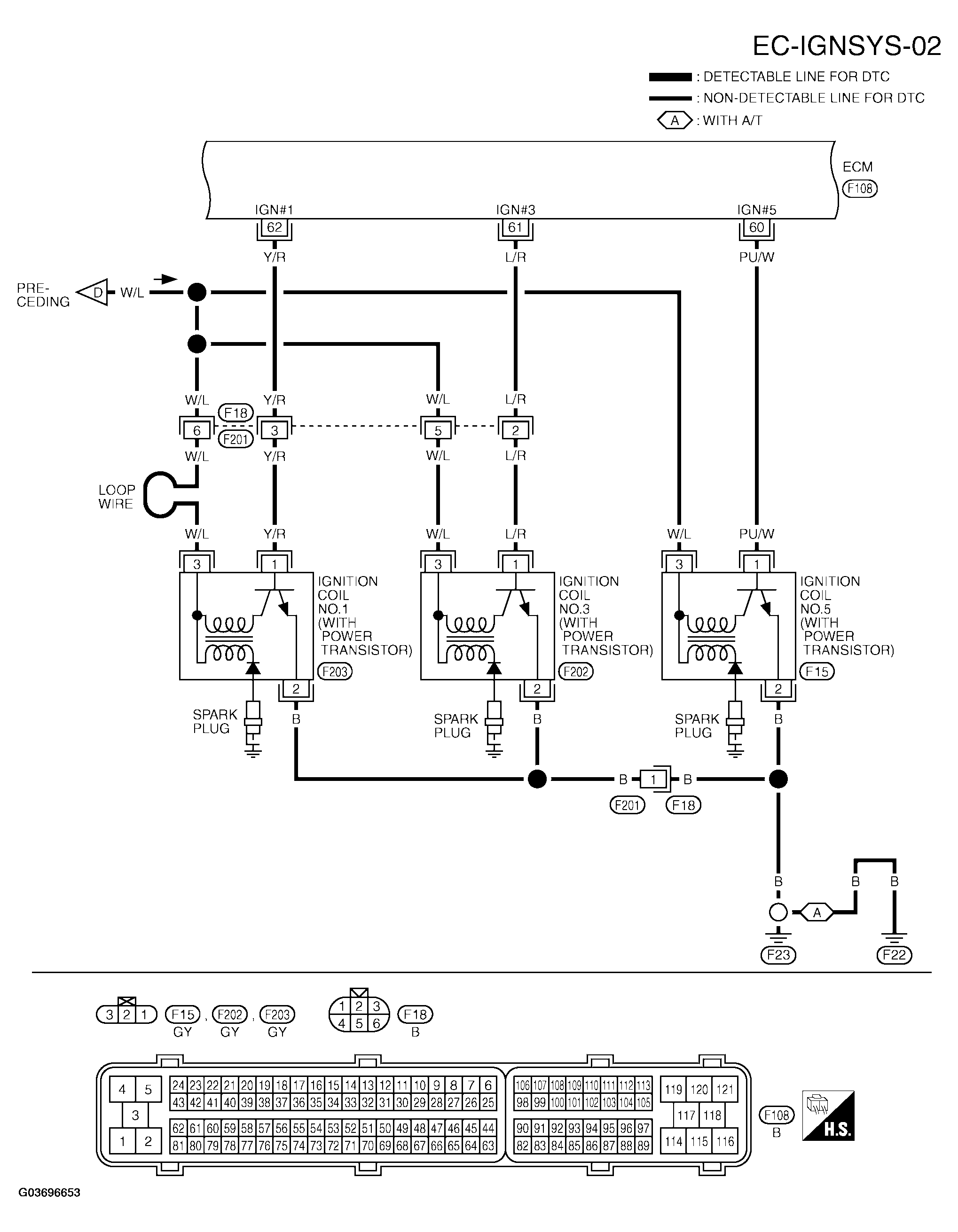

Fig 2: Wiring Diagram - EC-IGNSYS-02

Courtesy of NISSAN MOTOR CO., U.S.A.

Specification data are reference values and are measured between each terminal and ground. Pulse signal is measured by CONSULT-II.

CAUTION: Do not use ECM ground terminals when measuring input/output voltage. Doing so may result in damage to the ECM's transistor. Use a ground other than ECM terminals, such as the ground.

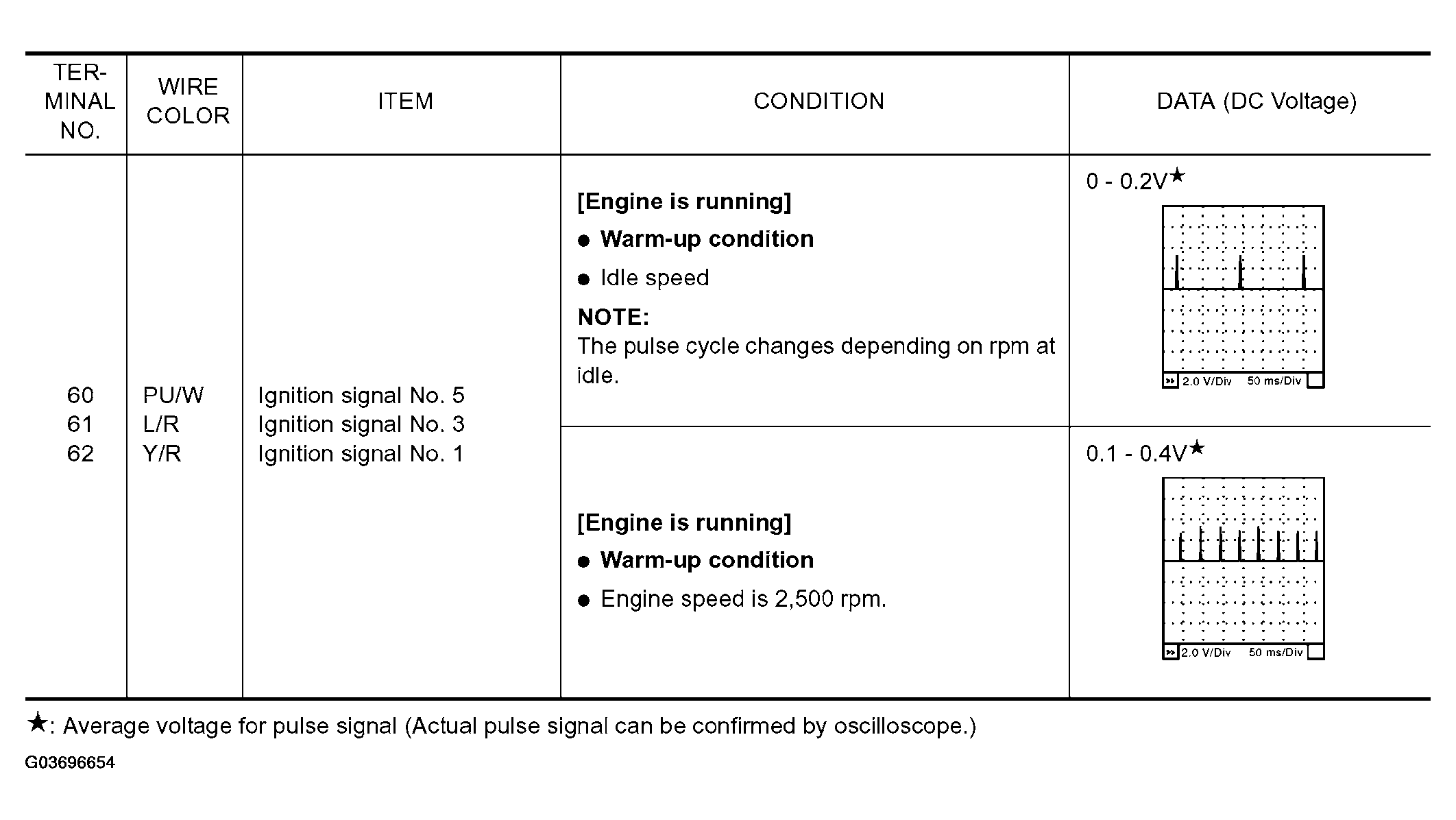

Fig 3: ECM Ground Terminals Reference Values Chart

Courtesy of NISSAN MOTOR CO., U.S.A.

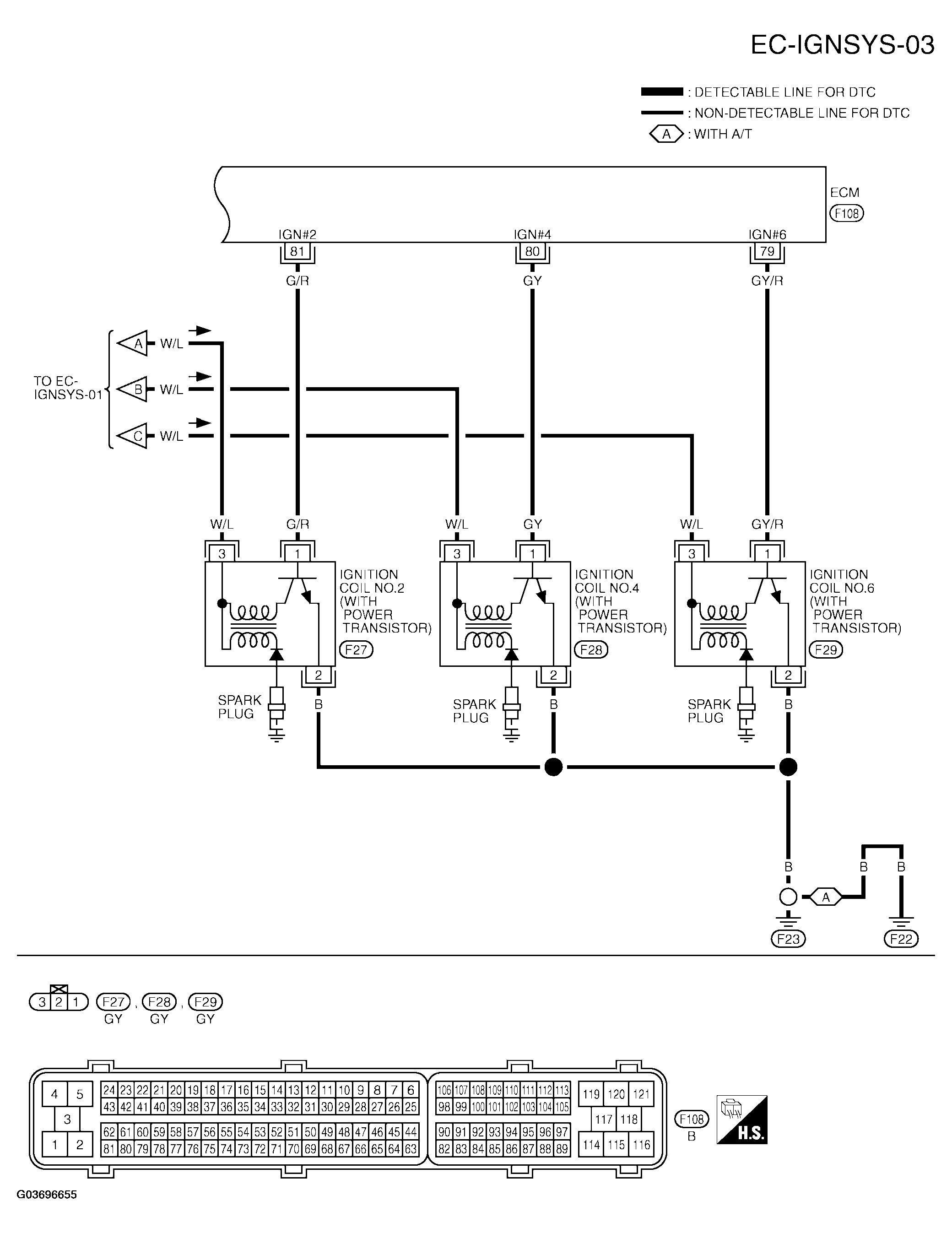

Fig 4: Wiring Diagram - EC-IGNSYS-03

Courtesy of NISSAN MOTOR CO., U.S.A.

Specification data are reference values and are measured between each terminal and ground.

Pulse signal is measured by CONSULT-II.

CAUTION: Do not use ECM ground terminals when measuring input/output voltage. Doing so may result in damage to the ECM's transistor. Use a ground other than ECM terminals, such as the ground.

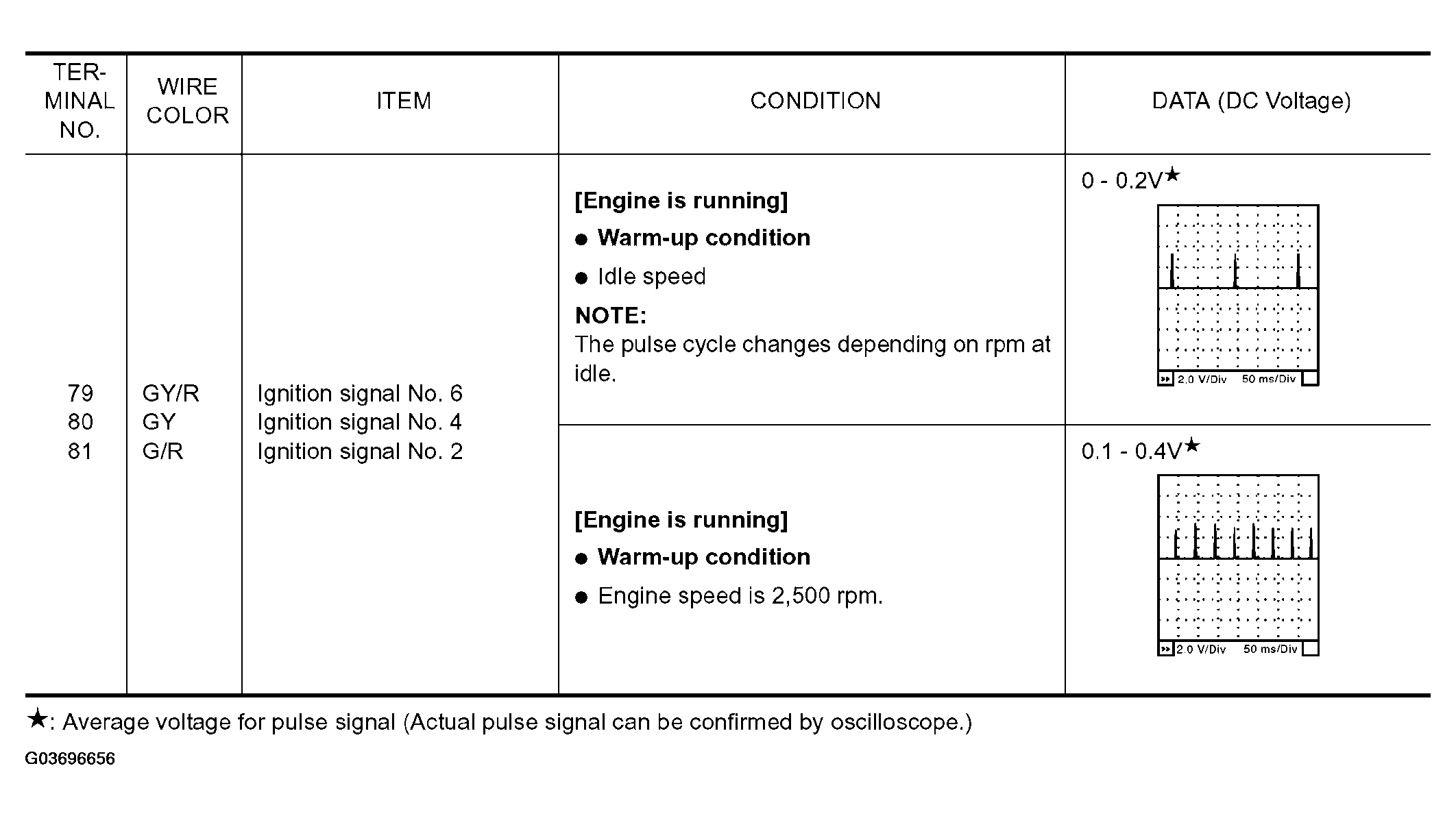

Fig 5: ECM Ground Terminals Reference Values Chart

Courtesy of NISSAN MOTOR CO., U.S.A.
