Diagnostic Procedure

  1. CHECK OVERALL FUNCTION
    1. Turn ignition switch ON.
    2. Pinch fuel feed hose with two fingers.

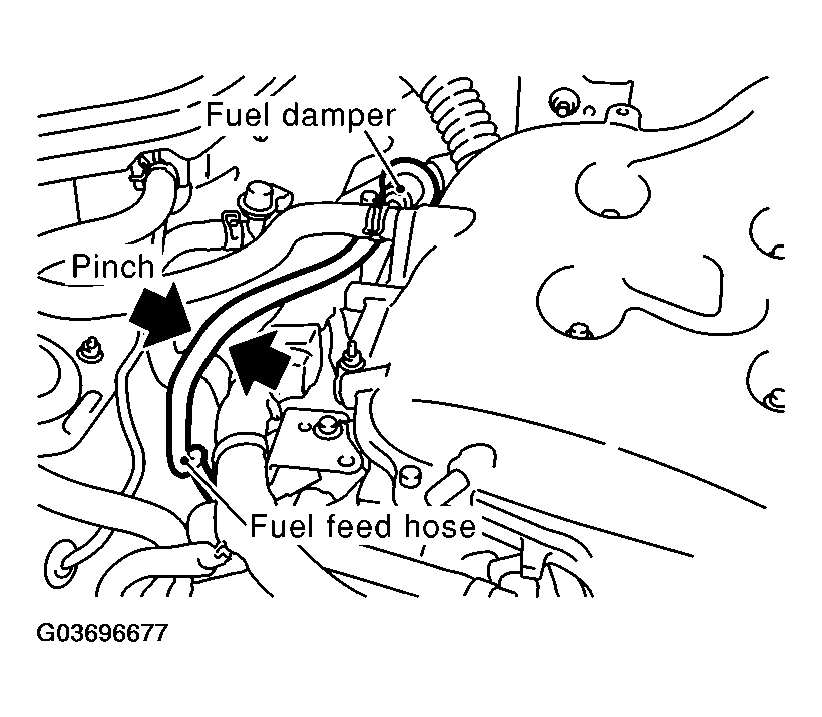

      Fig 1: Checking Overall Function
      G03696677Courtesy of NISSAN MOTOR CO., U.S.A.

      Fuel pressure pulsation should be felt on the fuel feed hose for 1 second after ignition switch is turned ON  .

    OK or NG

    1. OK: INSPECTION END
    2. NG: GO TO 2.
  2. CHECK FUEL PUMP POWER SUPPLY CIRCUIT-I
    1. Turn ignition switch OFF.
    2. Disconnect ECM harness connector.
    3. Turn ignition switch ON.
    4. Check voltage between ECM terminal 113 and ground with CONSULT-II or tester.
      Fig 2: Checking Voltage Between ECM Terminal 113 & Ground With Consult-II
      G03696678Courtesy of NISSAN MOTOR CO., U.S.A.

      Voltage: Battery voltage

    OK or NG

    1. OK: GO TO  5.
    2. NG: GO TO 3.
  3. CHECK FUEL PUMP POWER SUPPLY CIRCUIT-I
    1. Turn ignition switch ON.
    2. Check voltage between IPDM E/R terminal 40 and ground with CONSULT-II or tester.
      Fig 3: Checking Voltage Between IPDM E/R Terminal 40 & Ground With Consult-II
      G03696679Courtesy of NISSAN MOTOR CO., U.S.A.

      Voltage: Battery voltage

    OK or NG

    1. OK: GO TO 4.
    2. NG: GO TO  13.
  4. DETECT MALFUNCTIONING PART

    Check the following.

    • Harness connectors E11, F2
    • Harness for open or short between IPDM E/R and ECM
    1. : Repair harness or connectors.
  5. CHECK CONDENSER POWER SUPPLY CIRCUIT-I
    1. Turn ignition switch OFF.
    2. Reconnect all harness connectors disconnected.
    3. Disconnect condenser harness connector.
    4. Turn ignition switch ON.
    5. Check voltage between condenser terminal 1 and ground with CONSULT-II or tester.

      Voltage: Battery voltage should exist for 1 second after ignition switch is turned ON  .

      Fig 4: Checking Voltage Between Condenser Terminal 1 & Ground With Consult-II
      G03696680Courtesy of NISSAN MOTOR CO., U.S.A.
    6. Also check harness for short to ground and short to power.

    OK or NG

    1. OK: GO TO  9.
    2. NG: GO TO 6.
  6. CHECK 15A FUSE
    1. Turn ignition switch OFF.
    2. Disconnect 15A fuse.
    3. Check 15A fuse.

    OK or NG

    1. OK: GO TO 7.
    2. NG: Replace fuse.
  7. CHECK CONDENSER POWER SUPPLY CIRCUIT-II
    1. Disconnect IPDM E/R harness connector E8.
    2. Check harness continuity between IPDM E/R terminal 39 and condenser terminal 1.

      Refer to WIRING DIAGRAM .

      Continuity should exist  .

    3. Also check harness for short to ground and short to power.

    OK or NG

    1. OK: GO TO  13.
    2. NG: GO TO 8.
  8. DETECT MALFUNCTIONING PART

    Check the following.

    • Harness connectors E123, B41
    • Harness for open or short between IPDM E/R and condenser
    1. : Repair harness or connectors.
  9. CHECK CONDENSER GROUND CIRCUIT
    1. Check harness continuity between condenser terminal 2 and ground.

      Refer to WIRING DIAGRAM .

      Continuity should exist  .

    2. Also check harness for short to power.

    OK or NG

    1. OK: GO TO 10.
    2. NG: Repair open circuit or short to power in harness or connectors.
  10. CHECK CONDENSER

    Refer to "COMPONENT INSPECTION ".

    OK or NG

    1. OK: GO TO 11.
    2. NG: Replace condenser.
  11. CHECK FUEL PUMP POWER SUPPLY AND GROUND CIRCUIT FOR OPEN AND SHORT
    1. Turn ignition switch OFF.
    2. Disconnect "fuel level sensor unit and fuel pump" harness connector.

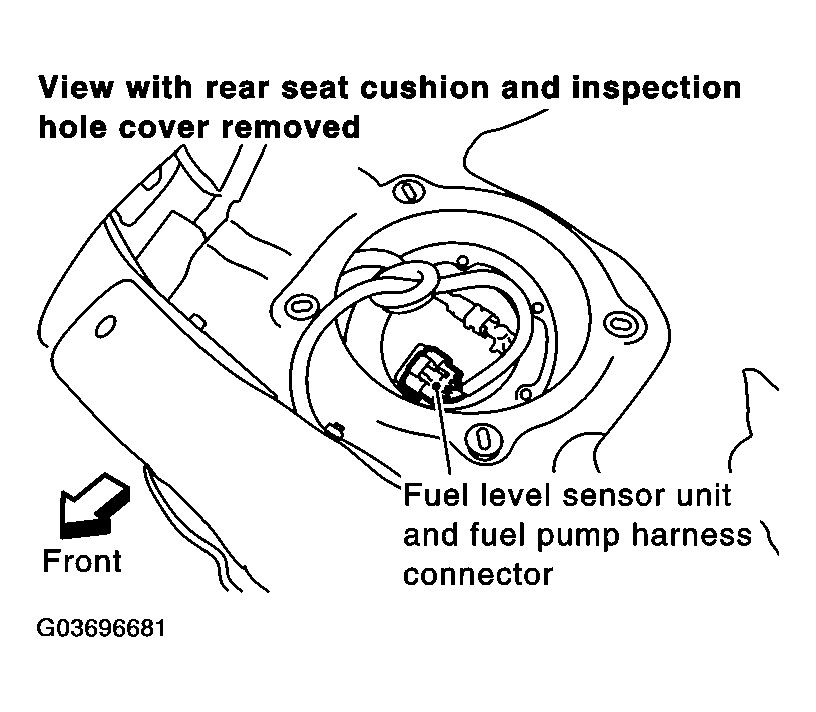

      Fig 5: Checking Fuel Pump Power Supply & Ground Circuit For Open & Short
      G03696681Courtesy of NISSAN MOTOR CO., U.S.A.
    3. Check harness continuity between "fuel level sensor unit and fuel pump" terminal 1 and harness connector B41 terminal 3, "fuel level sensor unit and fuel pump" terminal 3 and ground.

      Refer to WIRING DIAGRAM .

      Continuity should exist  .

    4. Also check harness for short to ground and short to power.

    OK or NG

    1. OK: GO TO 12.
    2. NG: Repair open circuit or short to power in harness or connectors.
  12. CHECK FUEL PUMP

    Refer to "COMPONENT INSPECTION ".

    OK or NG

    1. OK: GO TO 13.
    2. NG: Replace fuel pump.
  13. CHECK INTERMITTENT INCIDENT

    Refer to "TROUBLE DIAGNOSIS FOR INTERMITTENT INCIDENT ".

    OK or NG

    1. OK: Replace IPDM E/R.
    2. NG: Repair or replace harness or connectors.
