ASCD Steering Switch

  1. Disconnect combination switch (spiral cable).
  2. Check continuity between combination switch (spiral cable) terminals 14 and 15 with pushing each switch.
    Fig 1: ASCD Steering Switch Component Inspection
    G00724268Courtesy of NISSAN MOTOR CO., U.S.A.

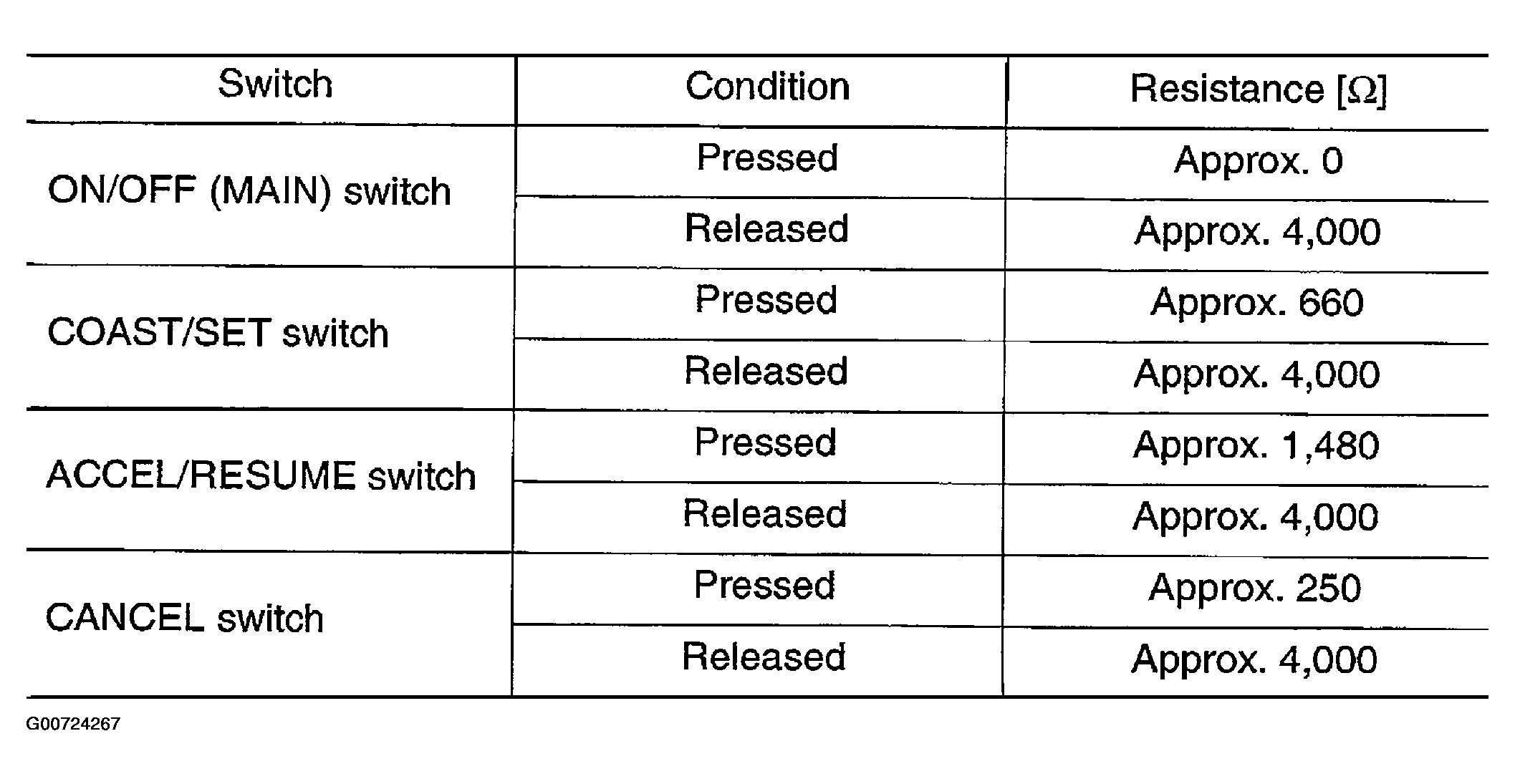

    Fig 2: ASCD Steering Switch Component Inspection Specifications
    G00724267Courtesy of NISSAN MOTOR CO., U.S.A.
