10. Check Throttle Control Motor Output Signal Circuit For Open Or Short

1. Turn ignition switch OFF.
2. Disconnect electric throttle control actuator harness connector. See Figure.
3. Disconnect ECM harness connector.
4. Check harness continuity between the following terminals.

   Refer to Wiring Diagram.

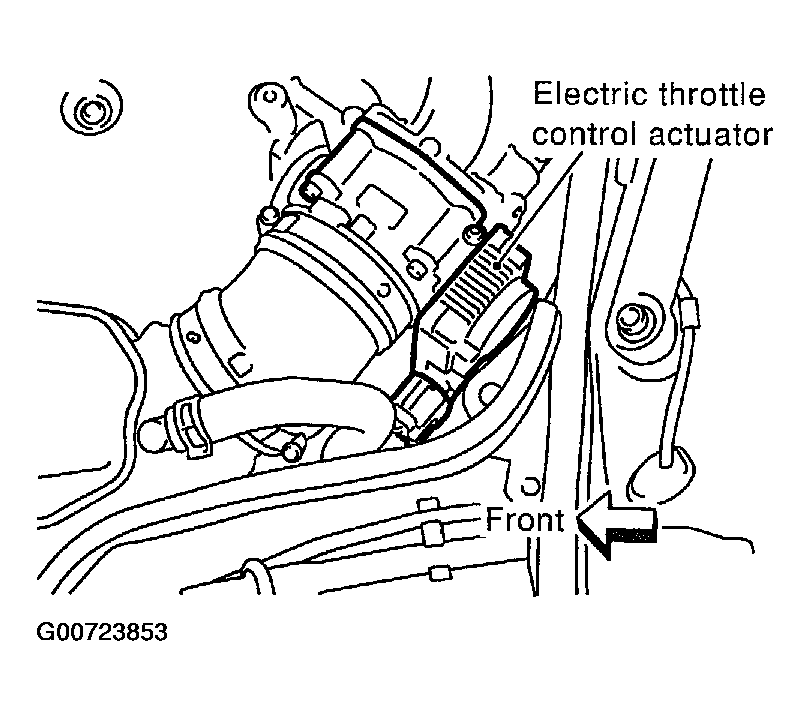

   Fig 1: Checking Throttle Control Motor Output Signal Circuit For Open Or Short

   Courtesy of NISSAN MOTOR CO., U.S.A.
5. Also check harness for short to ground and short to power.

OK or NG

OK: GO TO 11.

NG: Repair or replace.
