On Board Diagnosis Logic

NOTE: If DTC P0452 is displayed with DTC P1229, first perform the trouble diagnosis for DTC P1229. Refer to DTC P1229 SENSOR POWER SUPPLY .

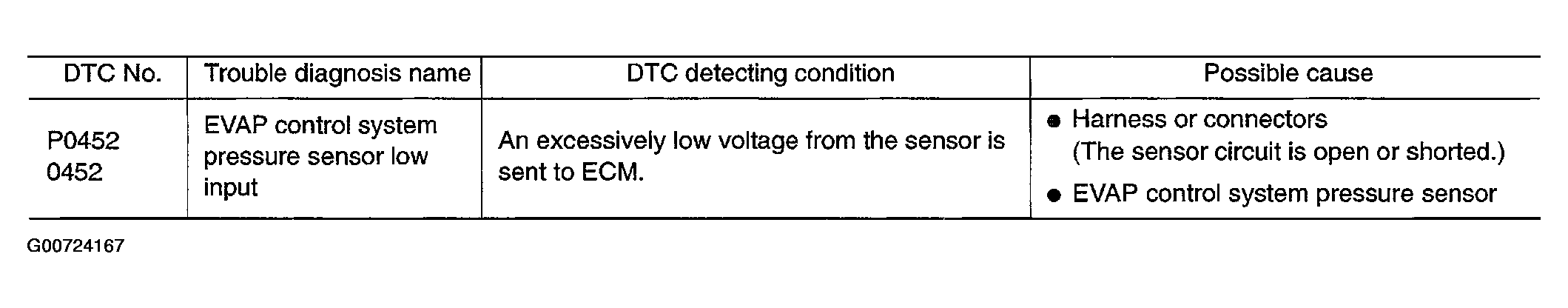

Fig 1: On Board Diagnosis Logic
G00724167Courtesy of NISSAN MOTOR CO., U.S.A.
