Engine Control Component Parts Location

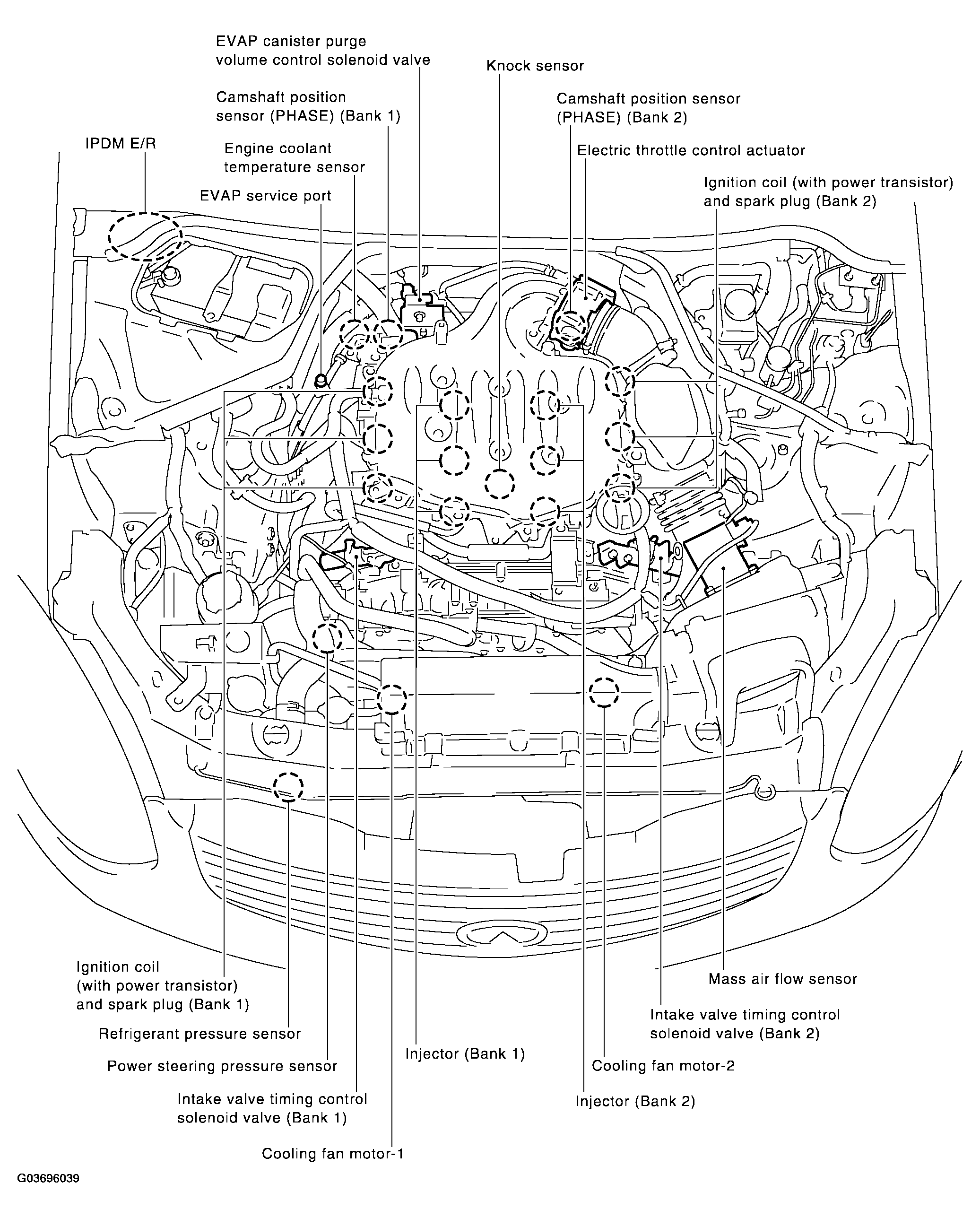

Fig 1: Locating Engine Control Components Positions

Courtesy of NISSAN MOTOR CO., U.S.A.

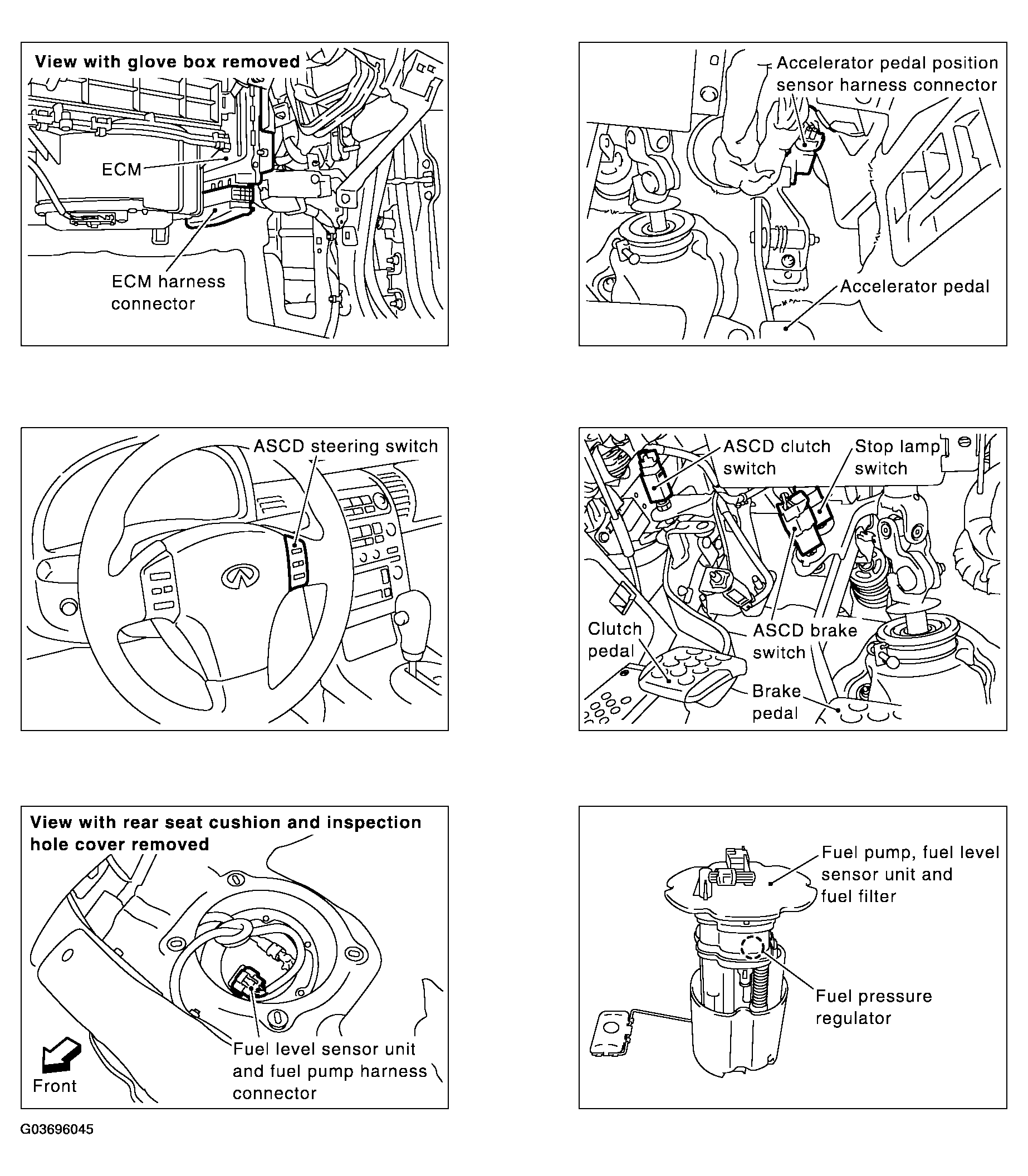

Fig 2: Identifying Engine Control Components (1 Of 2)

Courtesy of NISSAN MOTOR CO., U.S.A.

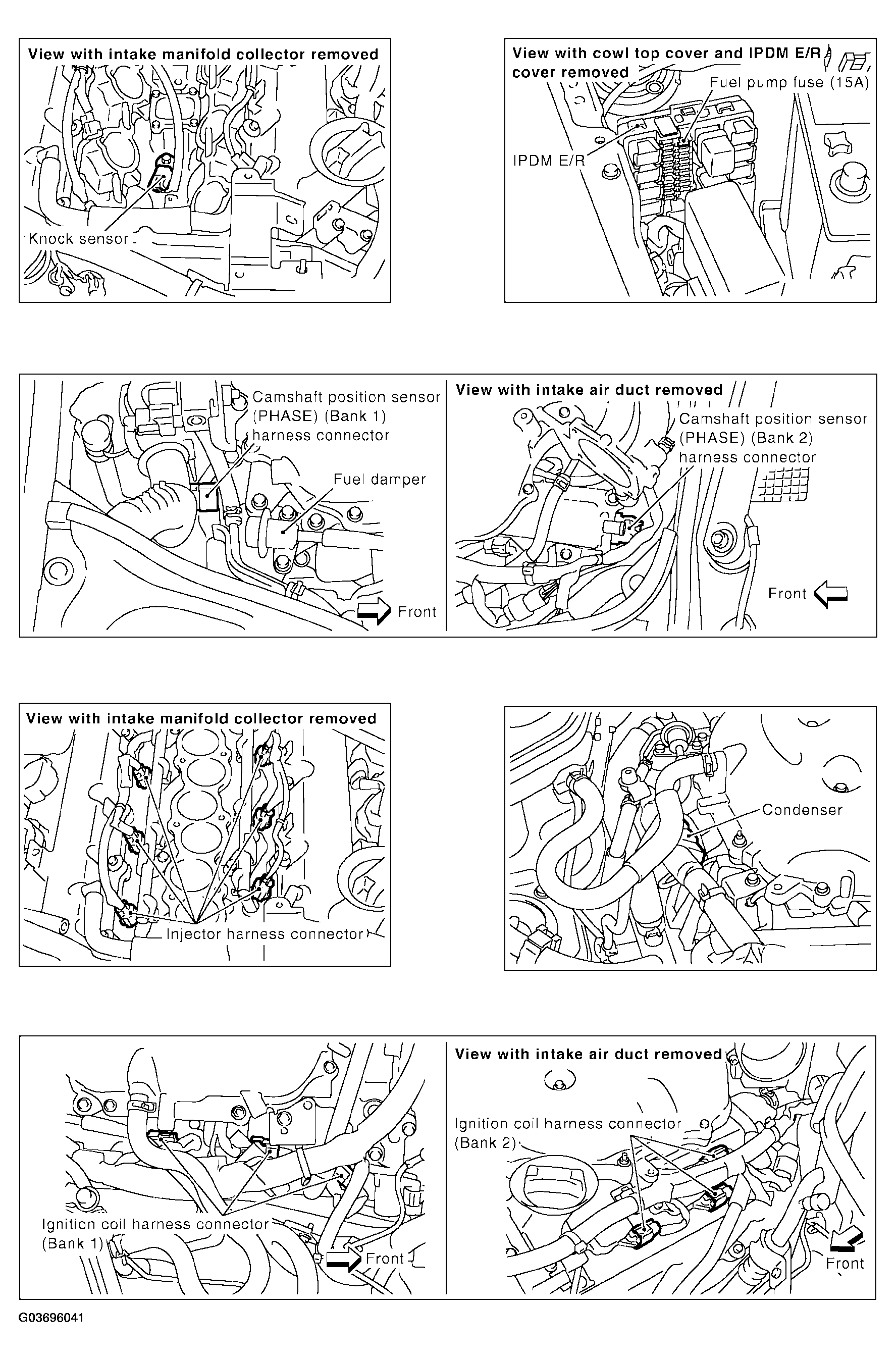

Fig 3: Identifying Engine Control Components (2 Of 2)

Courtesy of NISSAN MOTOR CO., U.S.A.

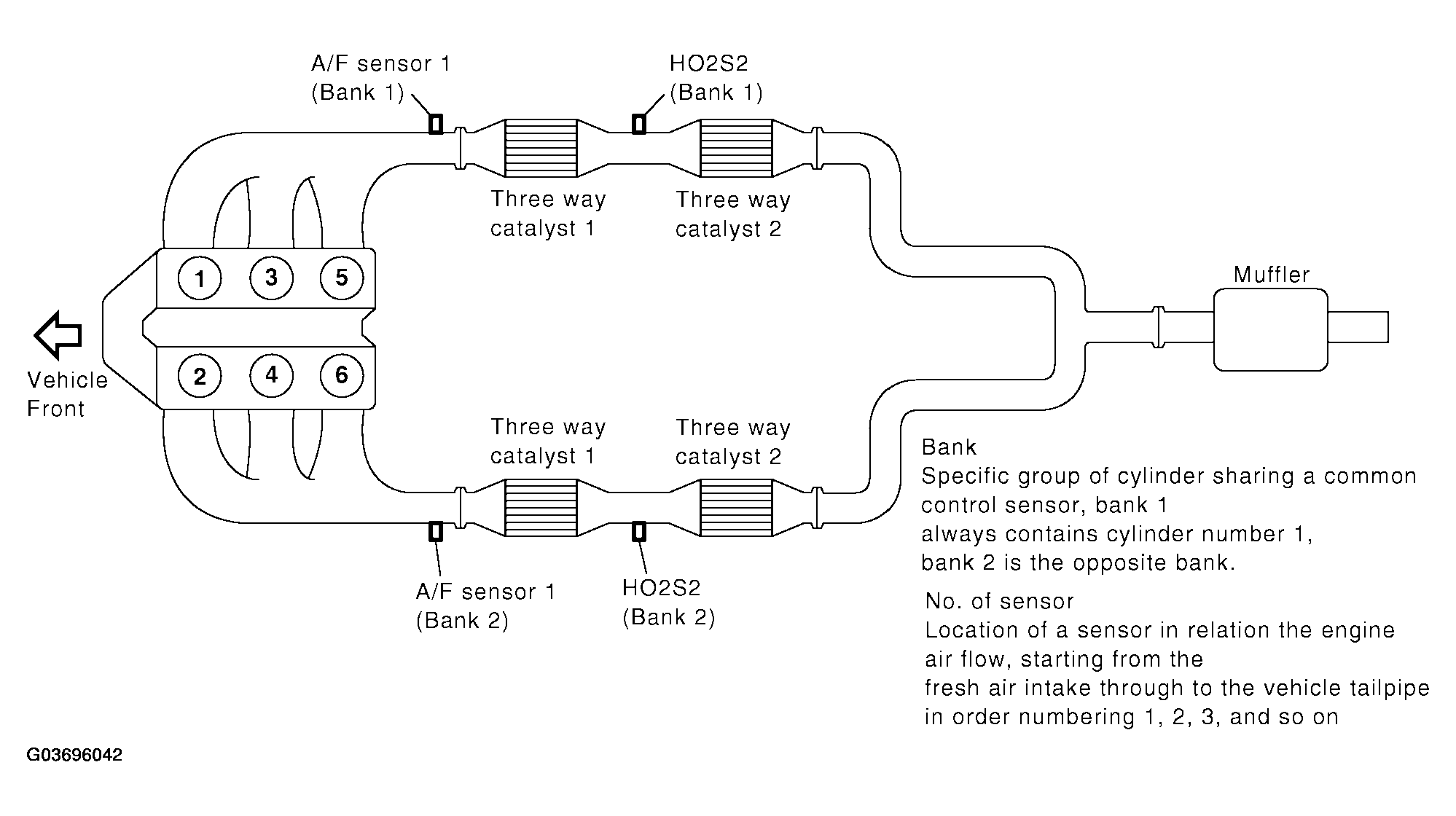

Fig 4: Exhaust System Diagram (Engine Control System)

Courtesy of NISSAN MOTOR CO., U.S.A.

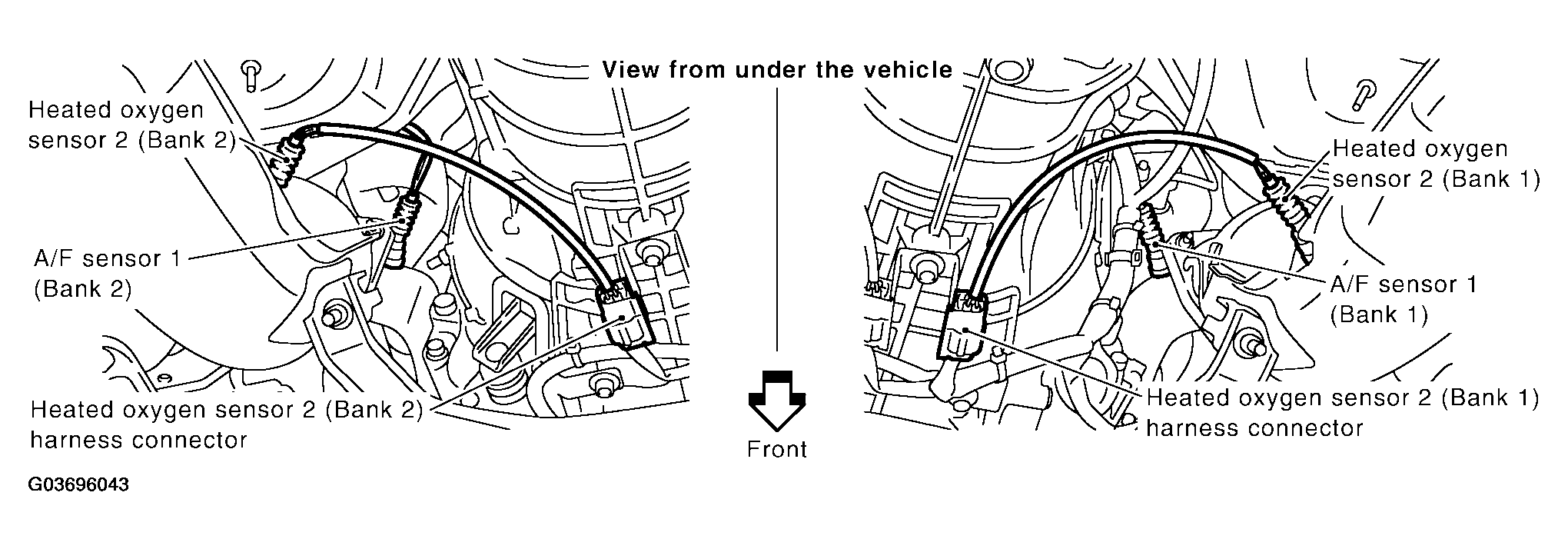

Fig 5: Identifying Heated Oxygen Sensor & Heated Oxygen Sensor Harness Connector

Courtesy of NISSAN MOTOR CO., U.S.A.

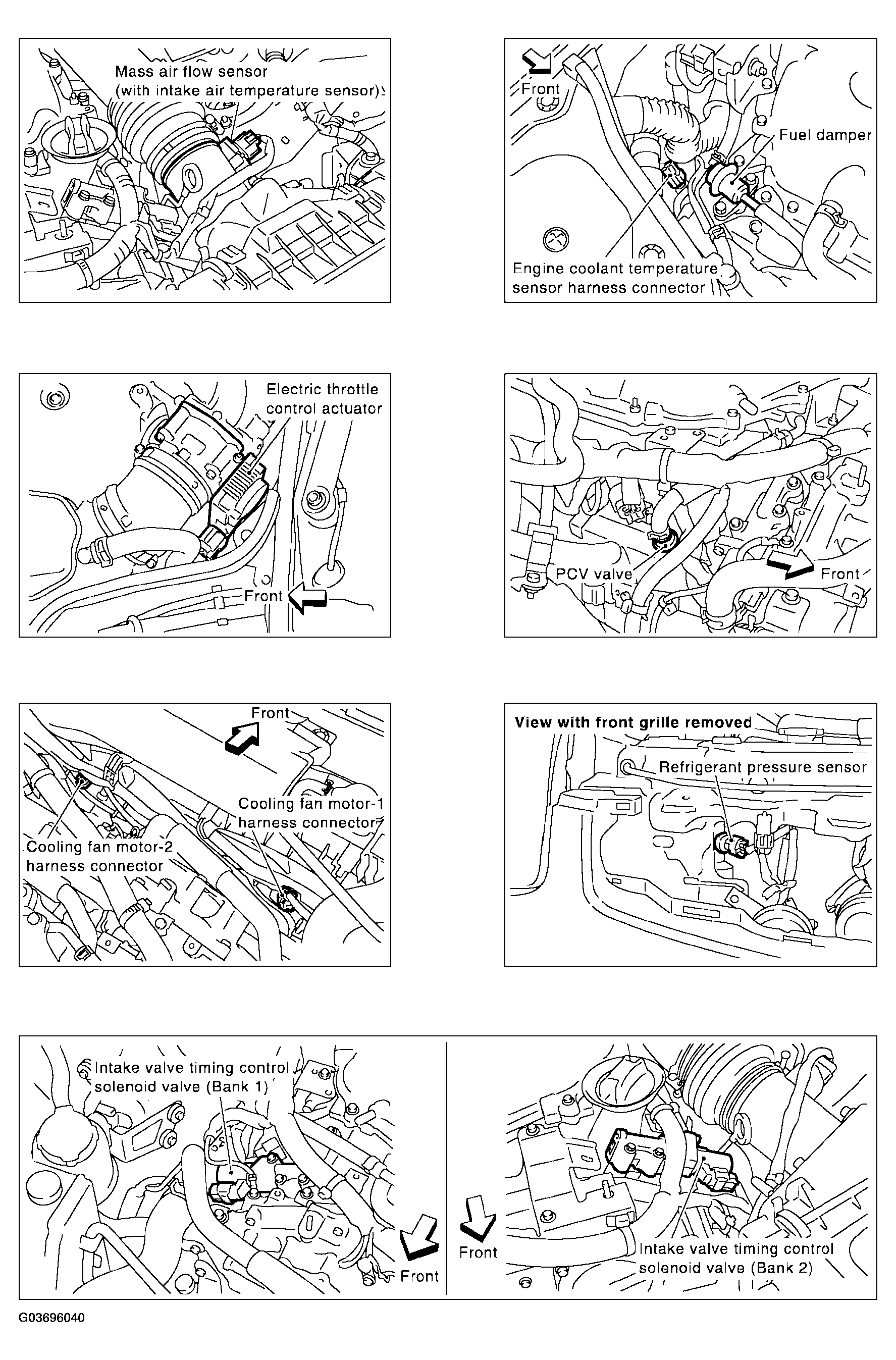

Fig 6: Identifying Engine Control System Sensors & Harness Connector (1 Of 2)

Courtesy of NISSAN MOTOR CO., U.S.A.

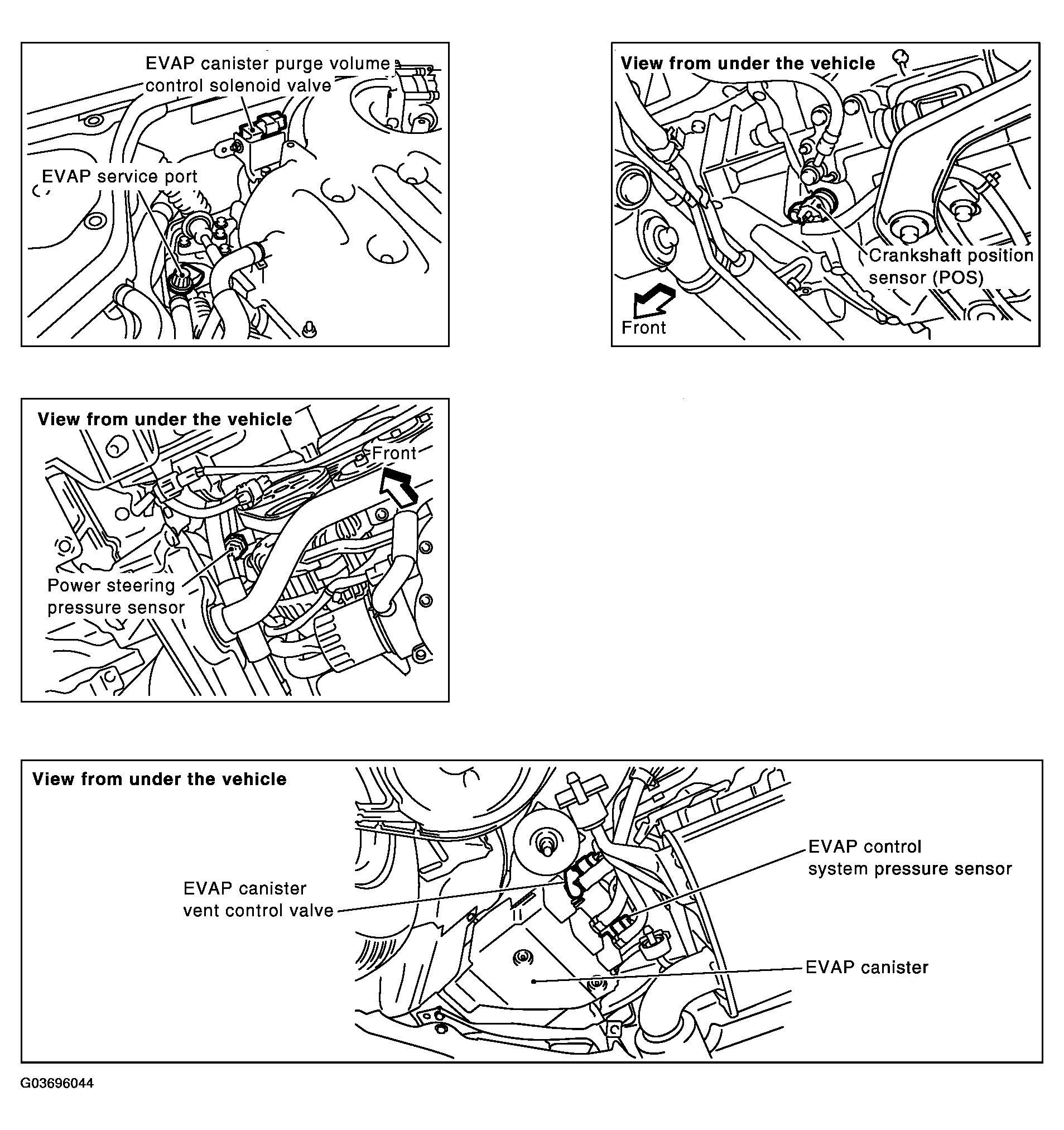

Fig 7: Identifying Engine Control System Sensors & Harness Connector (2 Of 2)

Courtesy of NISSAN MOTOR CO., U.S.A.
