ECM Inspection Table

Specification data are reference values and are measured between each terminal and ground.

Pulse signal is measured by CONSULT-II.

CAUTION: Do not use ECM ground terminals when measuring input/output voltage. Doing so may result in damage to the ECMs transistor. Use a ground other than ECM terminals, such as the ground.

Fig 1: ECM Terminals & Reference Value (1 Of 10)

G00720248

Courtesy of NISSAN MOTOR CO., U.S.A.

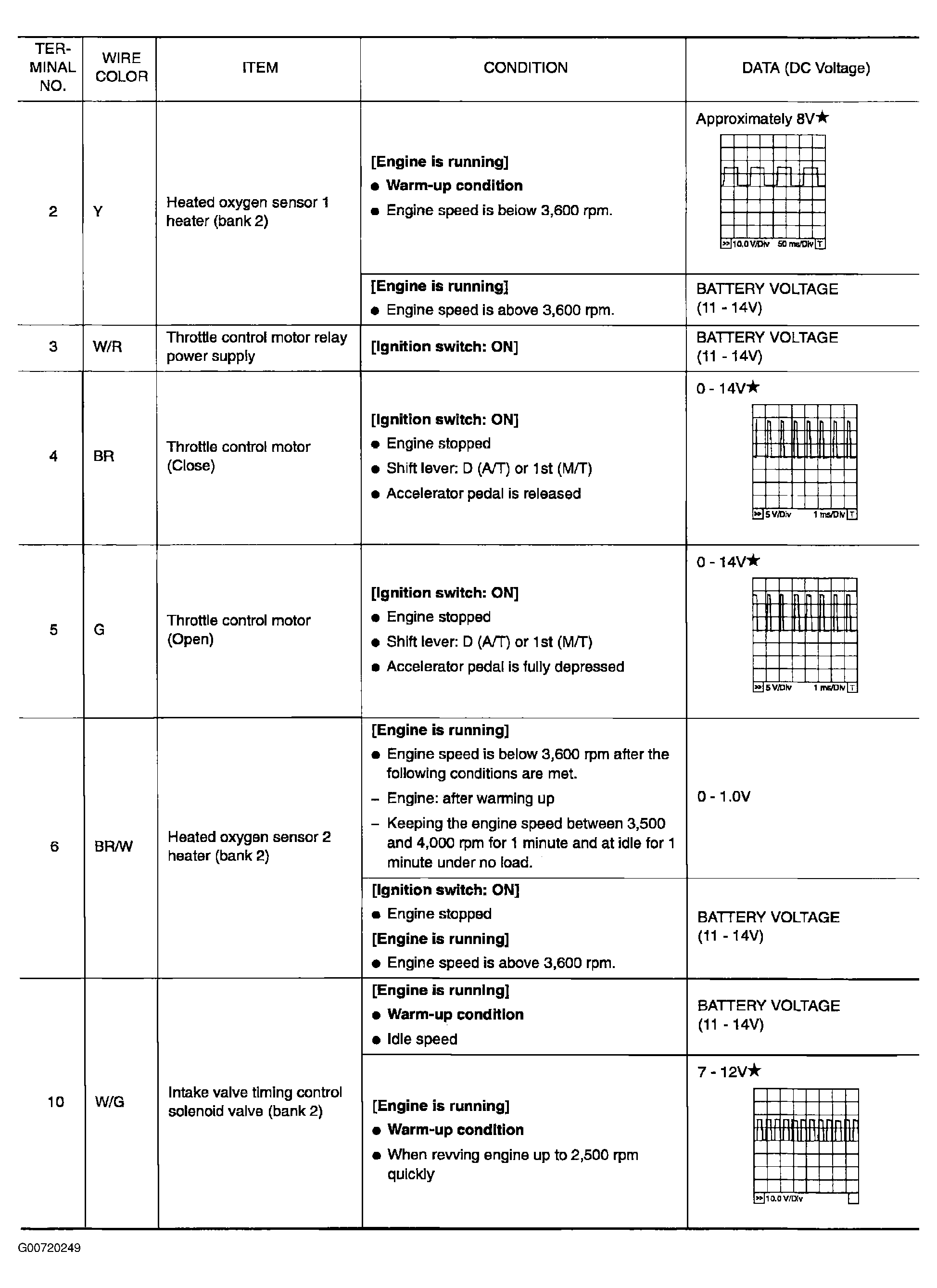

Fig 2: ECM Terminals & Reference Value (2 Of 10)

G00720249

Courtesy of NISSAN MOTOR CO., U.S.A.

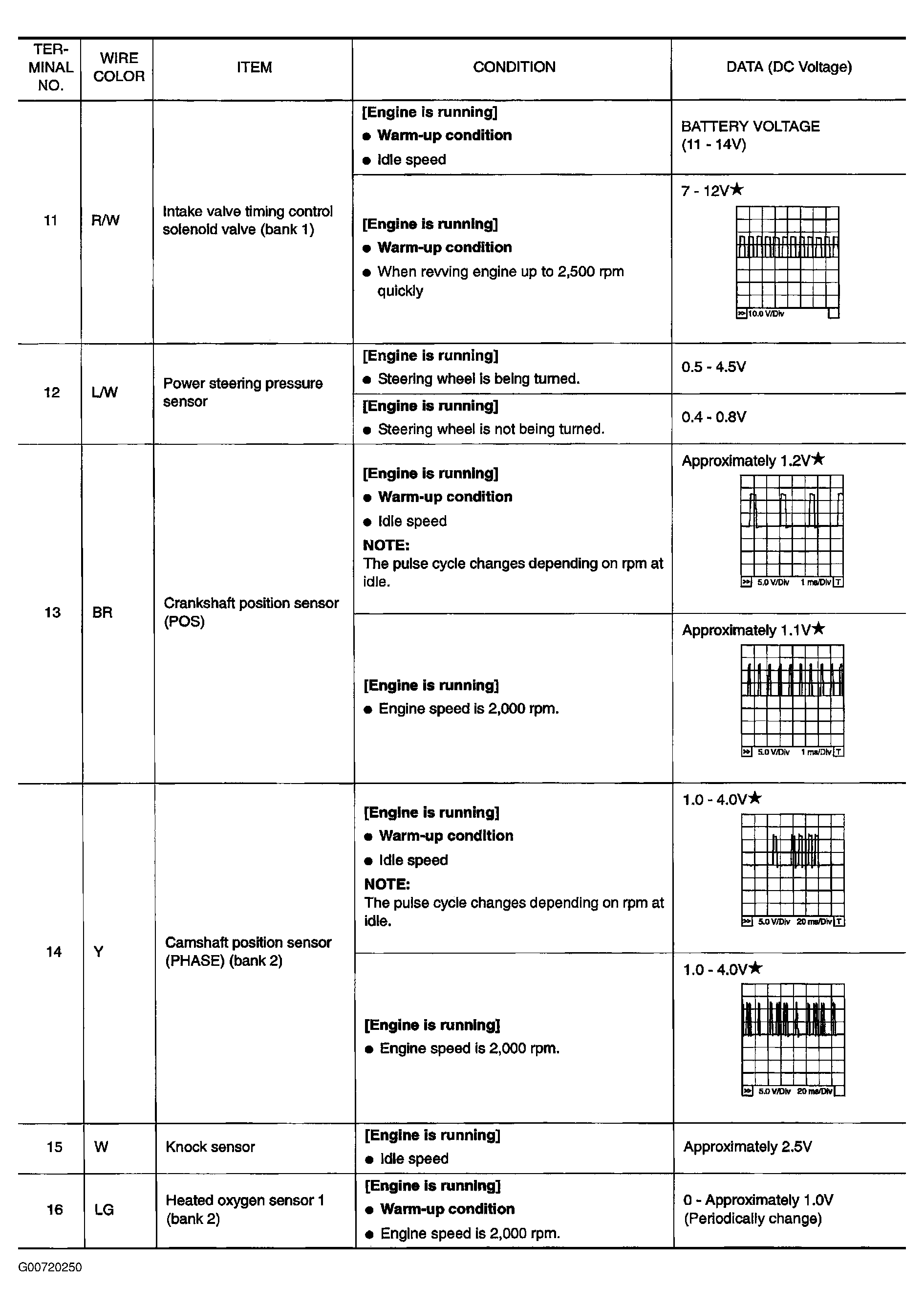

Fig 3: ECM Terminals & Reference Value (3 Of 10)

G00720250

Courtesy of NISSAN MOTOR CO., U.S.A.

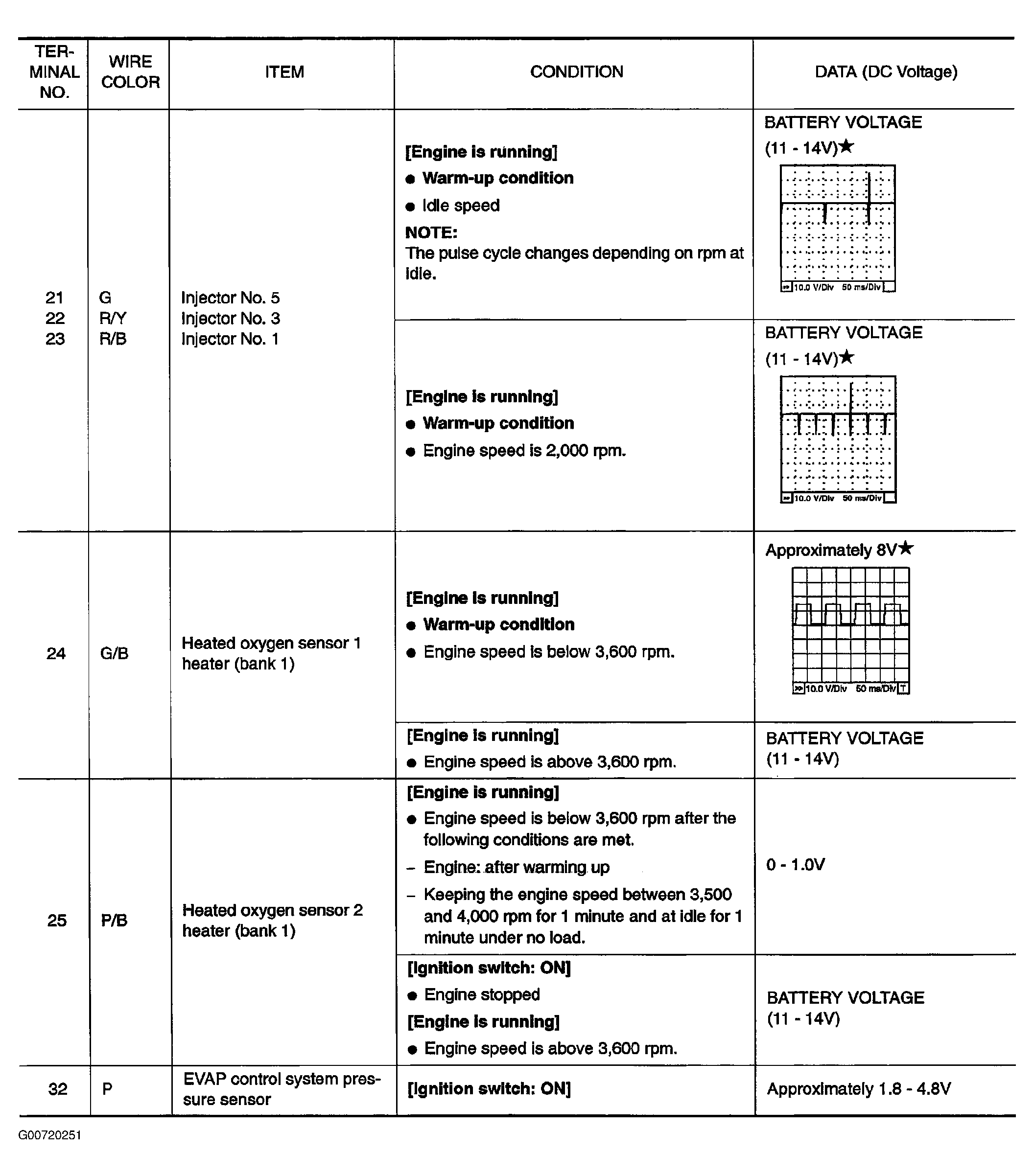

Fig 4: ECM Terminals & Reference Value (4 Of 10)

G00720251

Courtesy of NISSAN MOTOR CO., U.S.A.

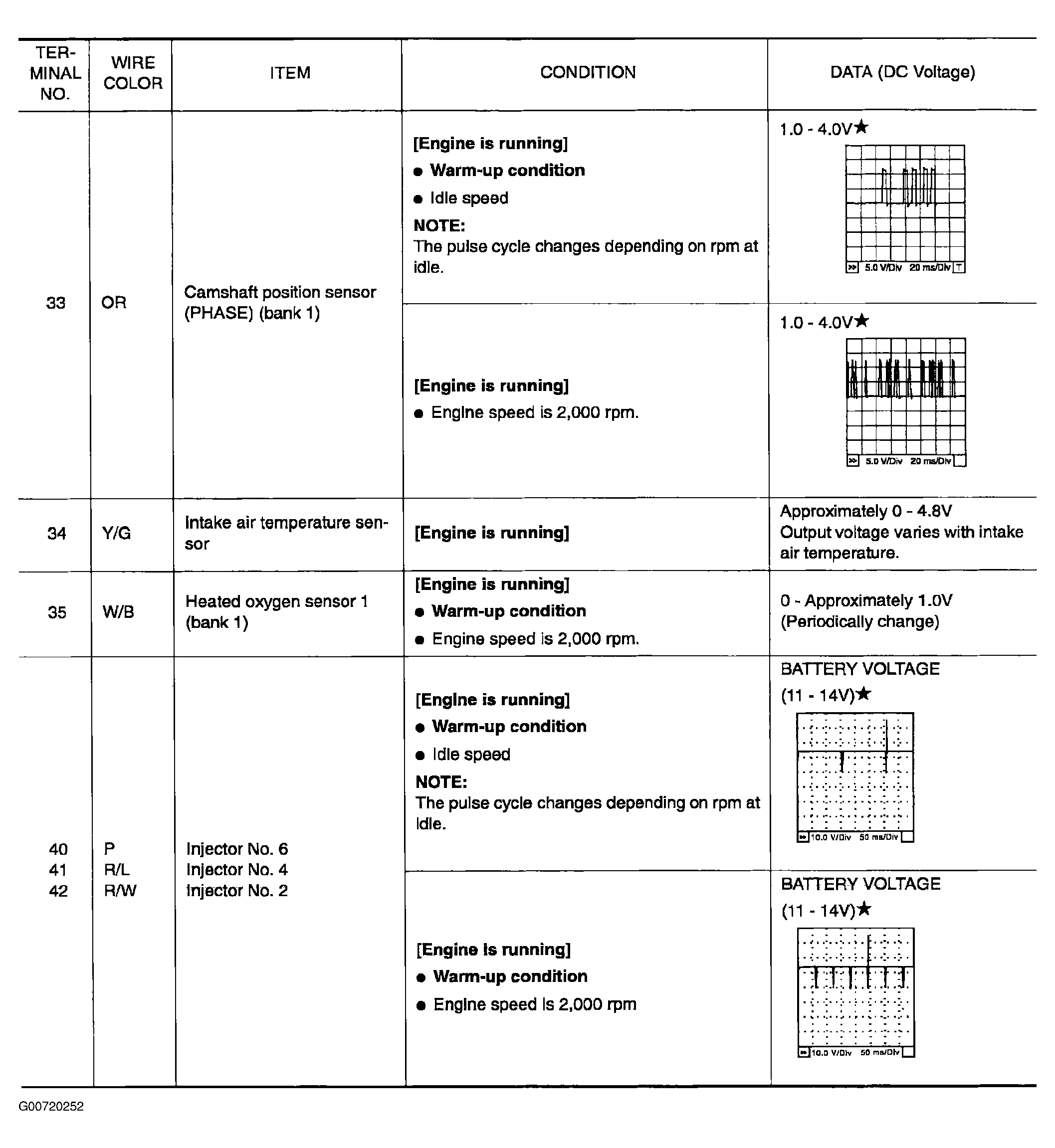

Fig 5: ECM Terminals & Reference Value (5 Of 10)

G00720252

Courtesy of NISSAN MOTOR CO., U.S.A.

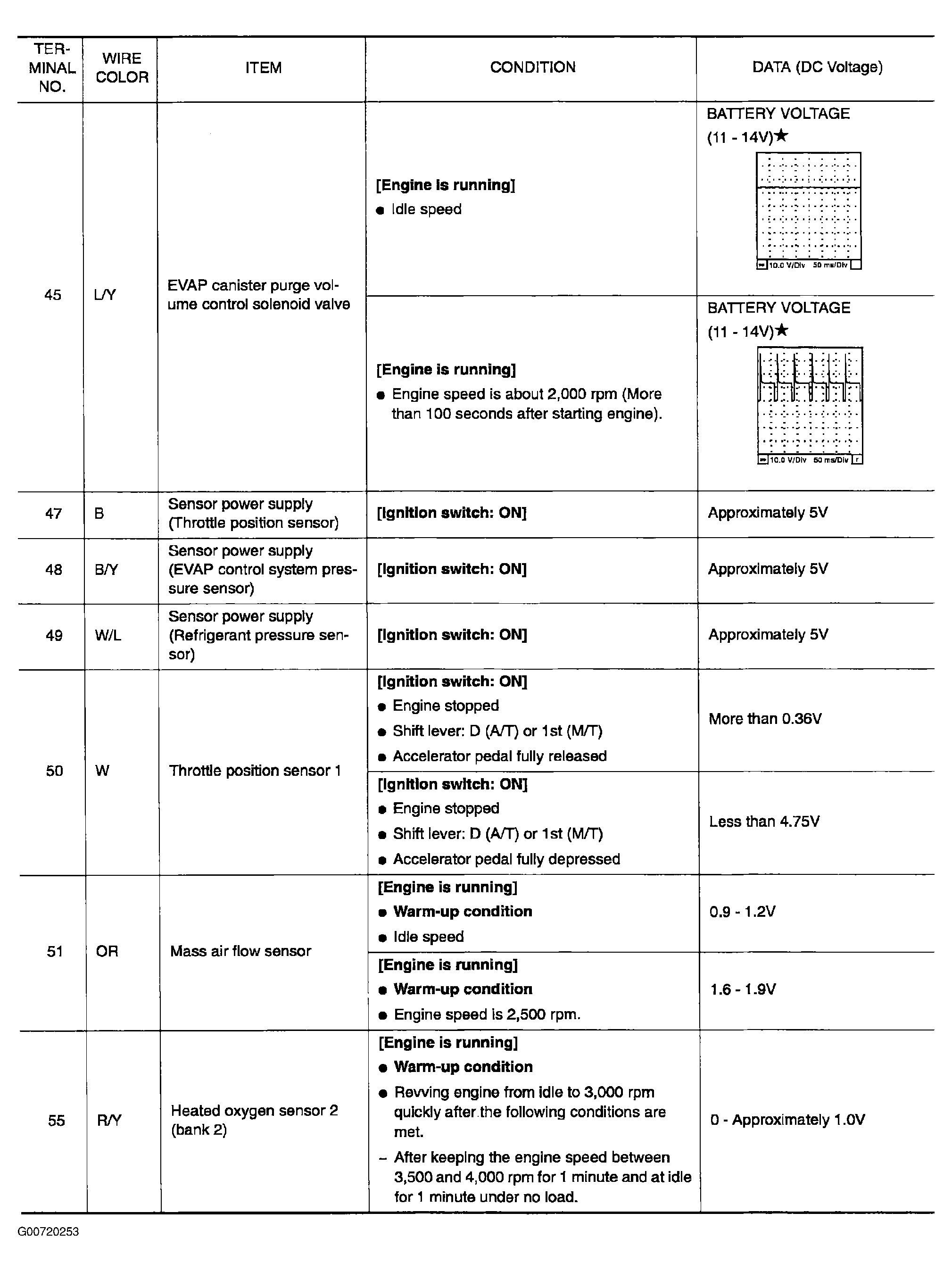

Fig 6: ECM Terminals & Reference Value (6 Of 10)

G00720253

Courtesy of NISSAN MOTOR CO., U.S.A.

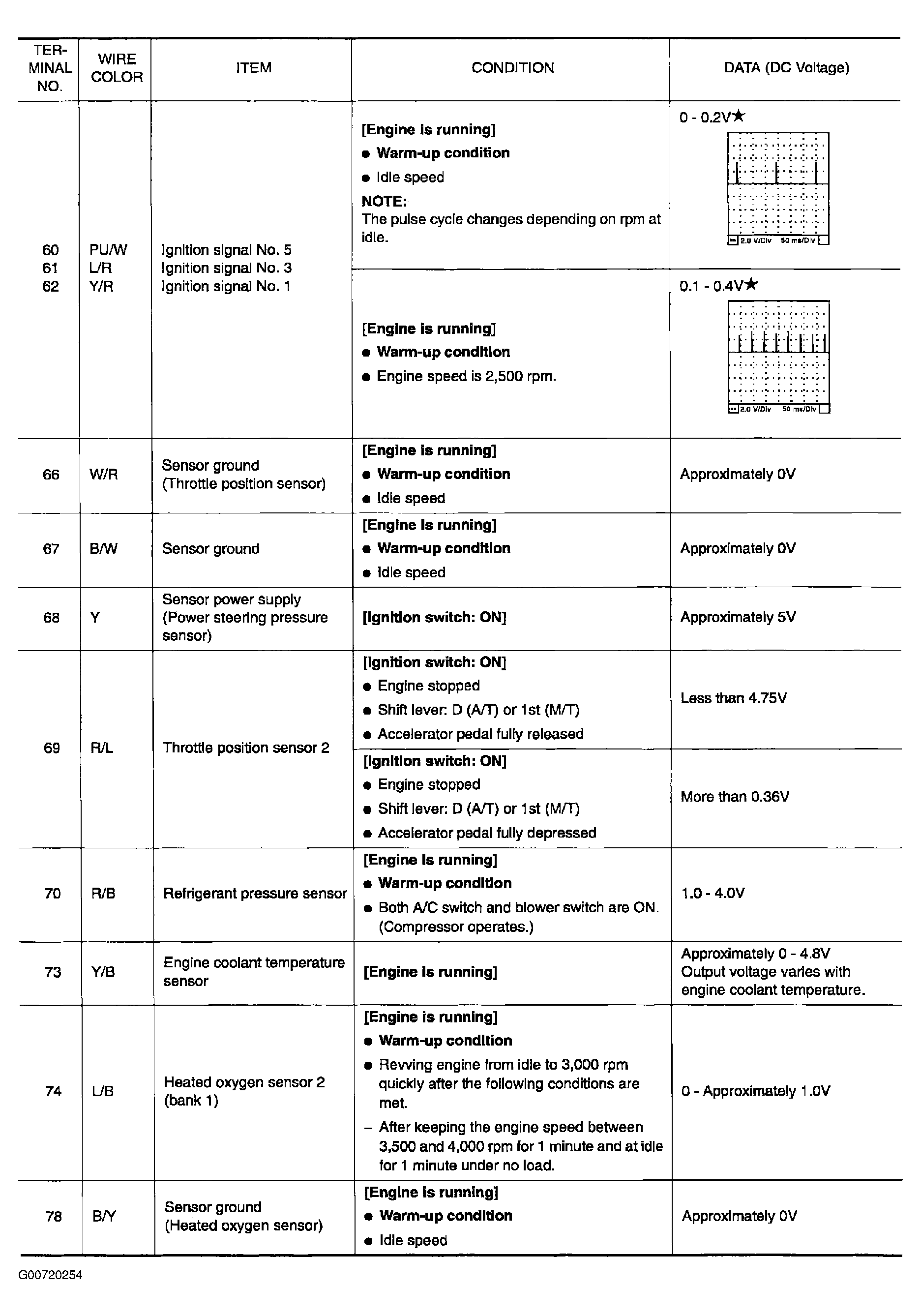

Fig 7: ECM Terminals & Reference Value (7 Of 10)

G00720254

Courtesy of NISSAN MOTOR CO., U.S.A.

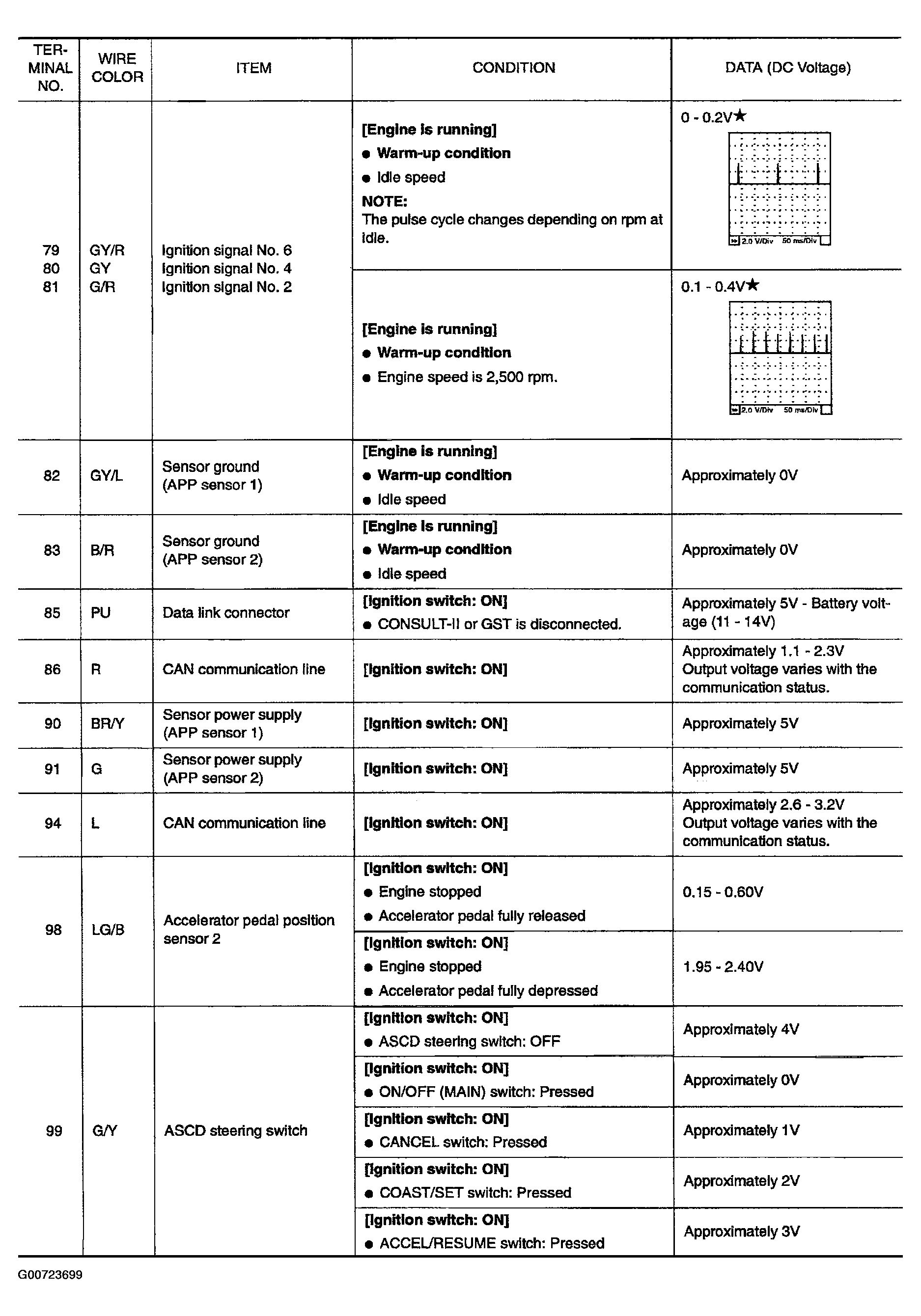

Fig 8: ECM Terminals & Reference Value (8 Of 10)

G00723699

Courtesy of NISSAN MOTOR CO., U.S.A.

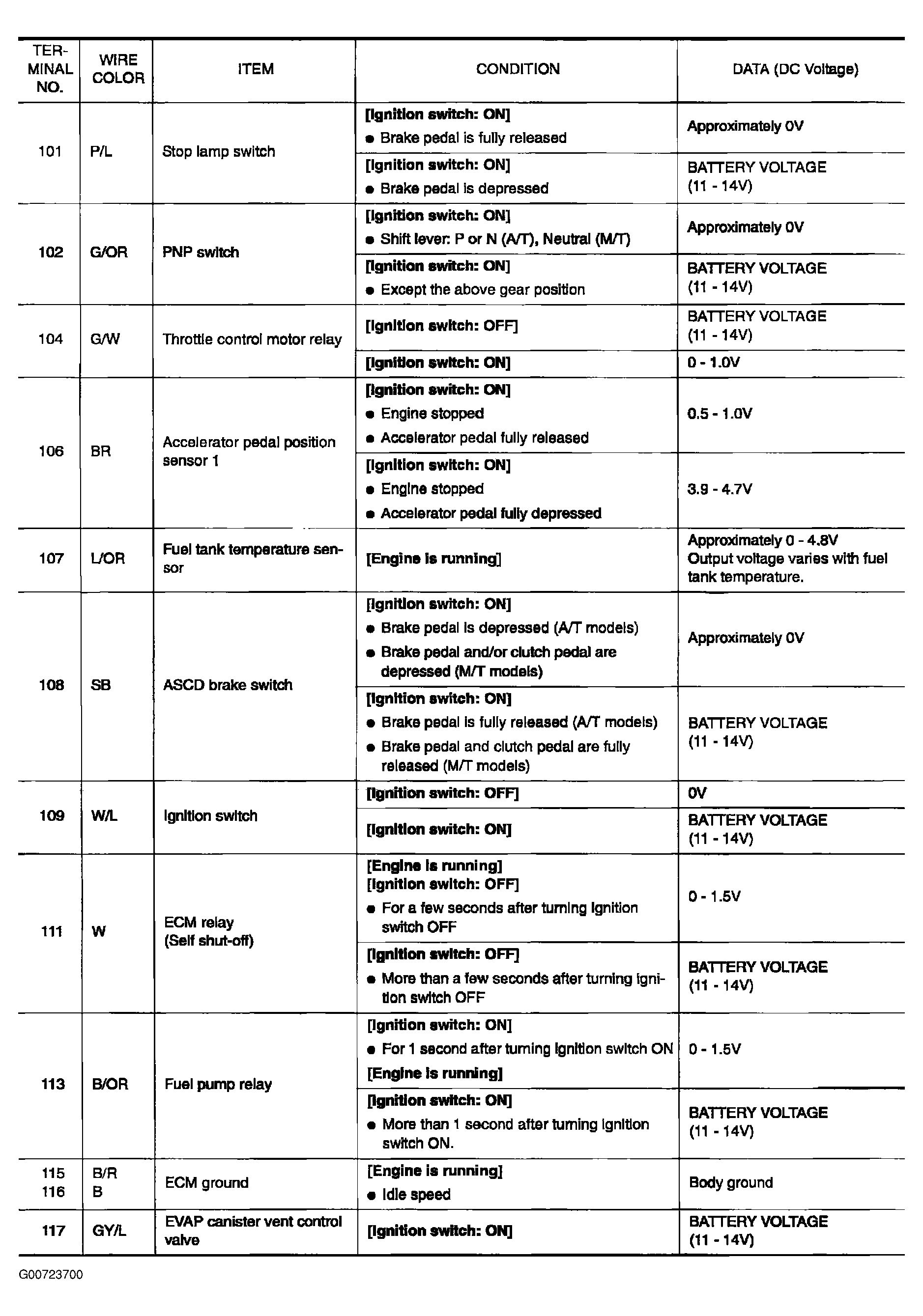

Fig 9: ECM Terminals & Reference Value (9 Of 10)

G00723700

Courtesy of NISSAN MOTOR CO., U.S.A.

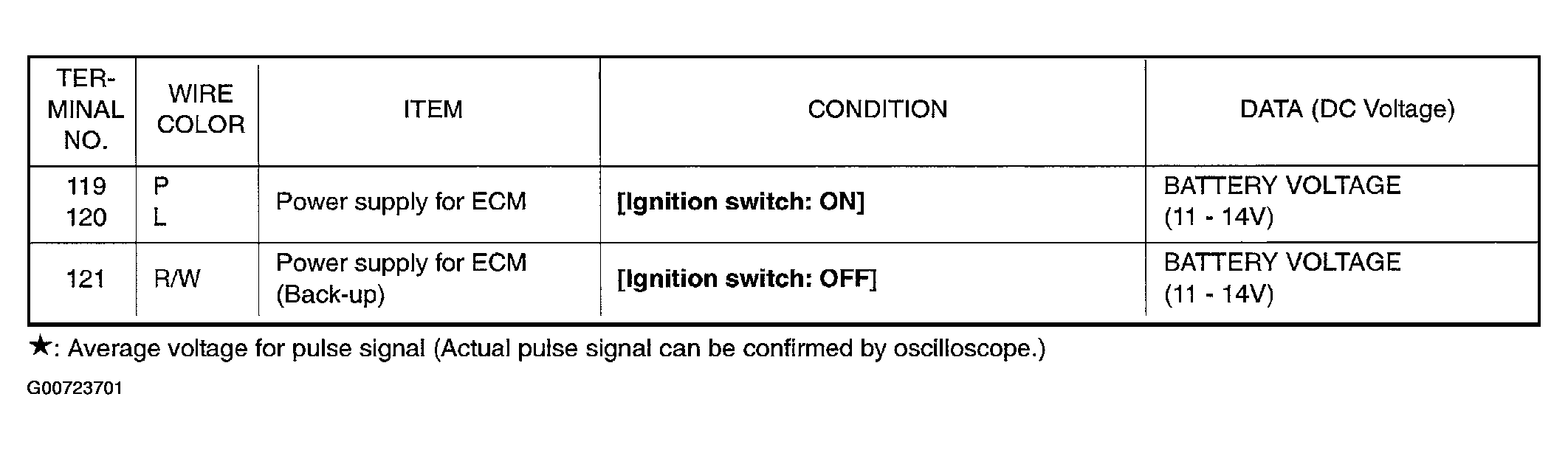

Fig 10: ECM Terminals & Reference Value (10 Of 10)

G00723701

Courtesy of NISSAN MOTOR CO., U.S.A.
