2. Check App Sensor 1 Power Supply Circuit

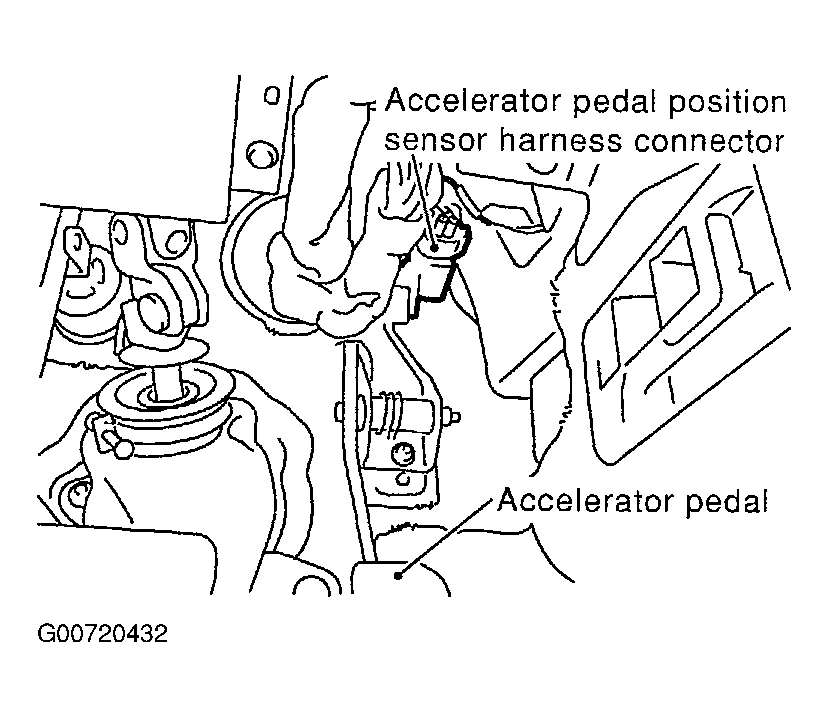

1. Disconnect accelerator pedal position (APP) sensor harness connector. See Figure.
2. Turn ignition switch ON.
3. Check voltage between APP sensor terminals 6 and ground with CONSULT-II or tester.

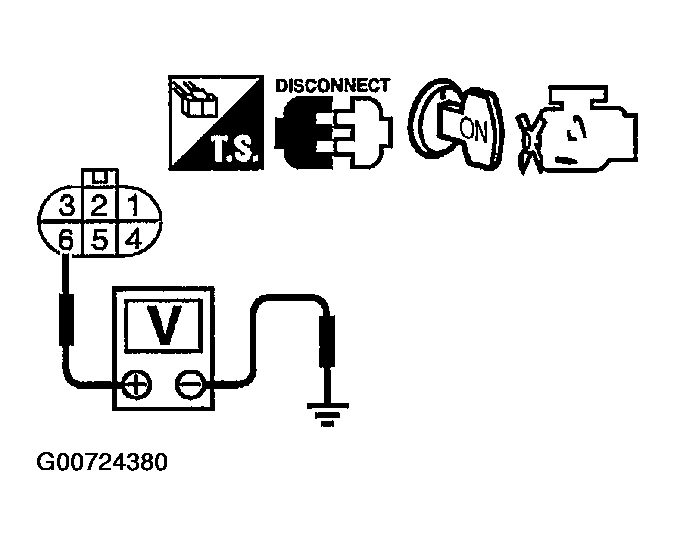

   Fig 1: Checking APP Sensor 1 Power Supply Circuit

   Courtesy of NISSAN MOTOR CO., U.S.A.
   1. Voltage: Approximately 5V

OK or NG

OK: GO TO 4 .

NG: GO TO 3.
