4. Check Throttle Position Sensor Power Supply Circuit-III

Check harness for short to power and short to ground, between the following terminals.

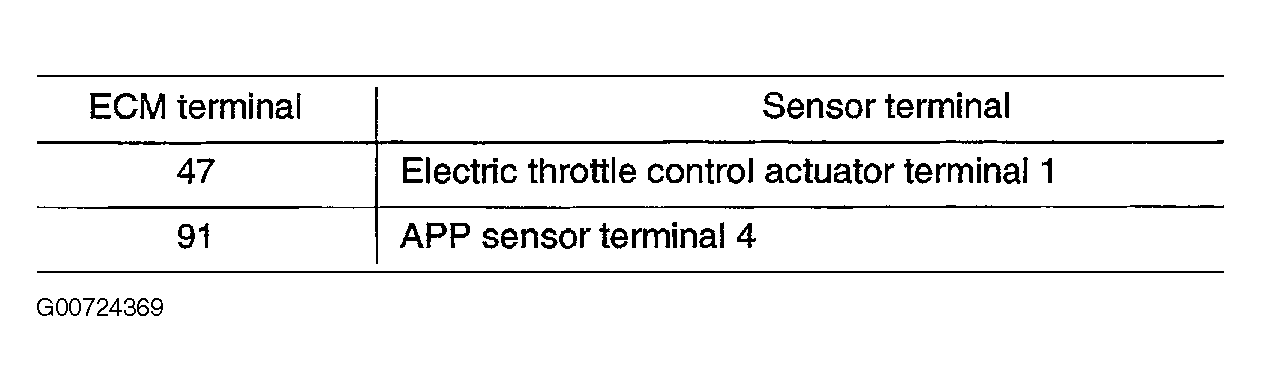

Fig 1: Checking Throttle Position Sensor Power Supply Circuit-III
G00724369Courtesy of NISSAN MOTOR CO., U.S.A.

OK or NG

OK: GO TO 5.

NG: Repair short to ground or short to power in harness or connectors.
