2. Check ASCD Steering Switch Circuit

WITH CONSULT-II

1. Turn ignition switch ON.
2. Select "MAIN SW", "RESUME/ACC SW", "SET SW" and "CANCEL SW" in "DATA MONITOR" mode with CONSULT-II.

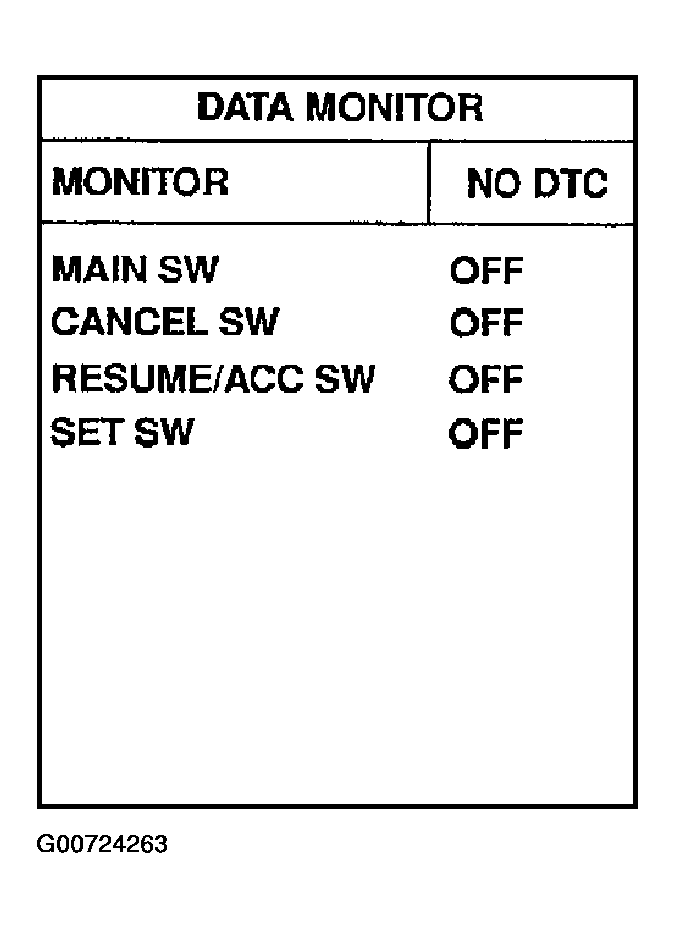

   Fig 1: CONSULT-II Display Screen

   Courtesy of NISSAN MOTOR CO., U.S.A.

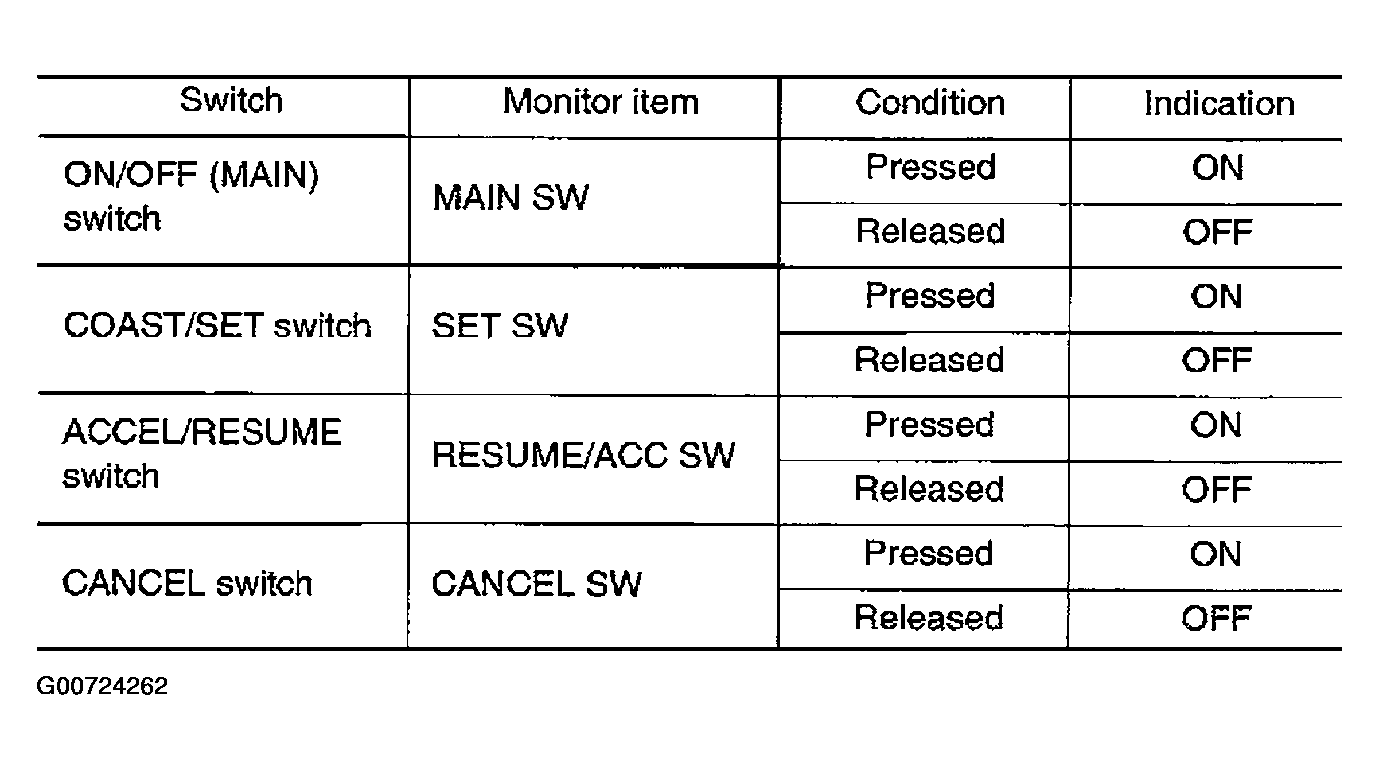

3. Check each item indication under the following conditions.
   Fig 2: Checking ASCD Steering Switch Circuit

   Courtesy of NISSAN MOTOR CO., U.S.A.

Without CONSULT-II

1. Turn ignition switch ON.

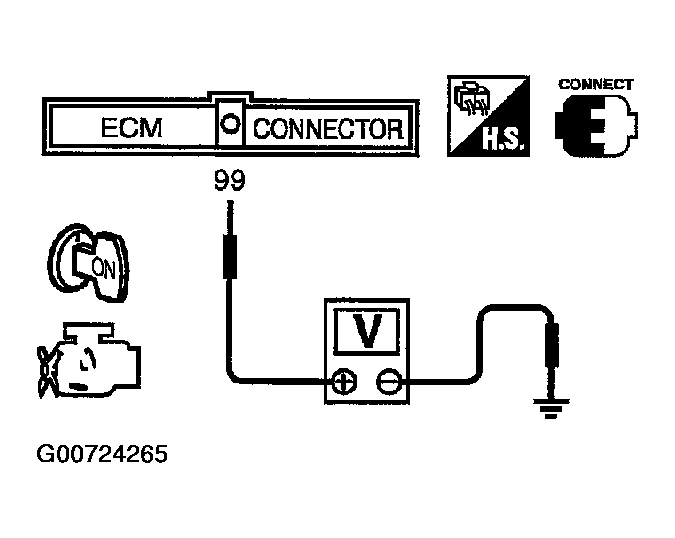

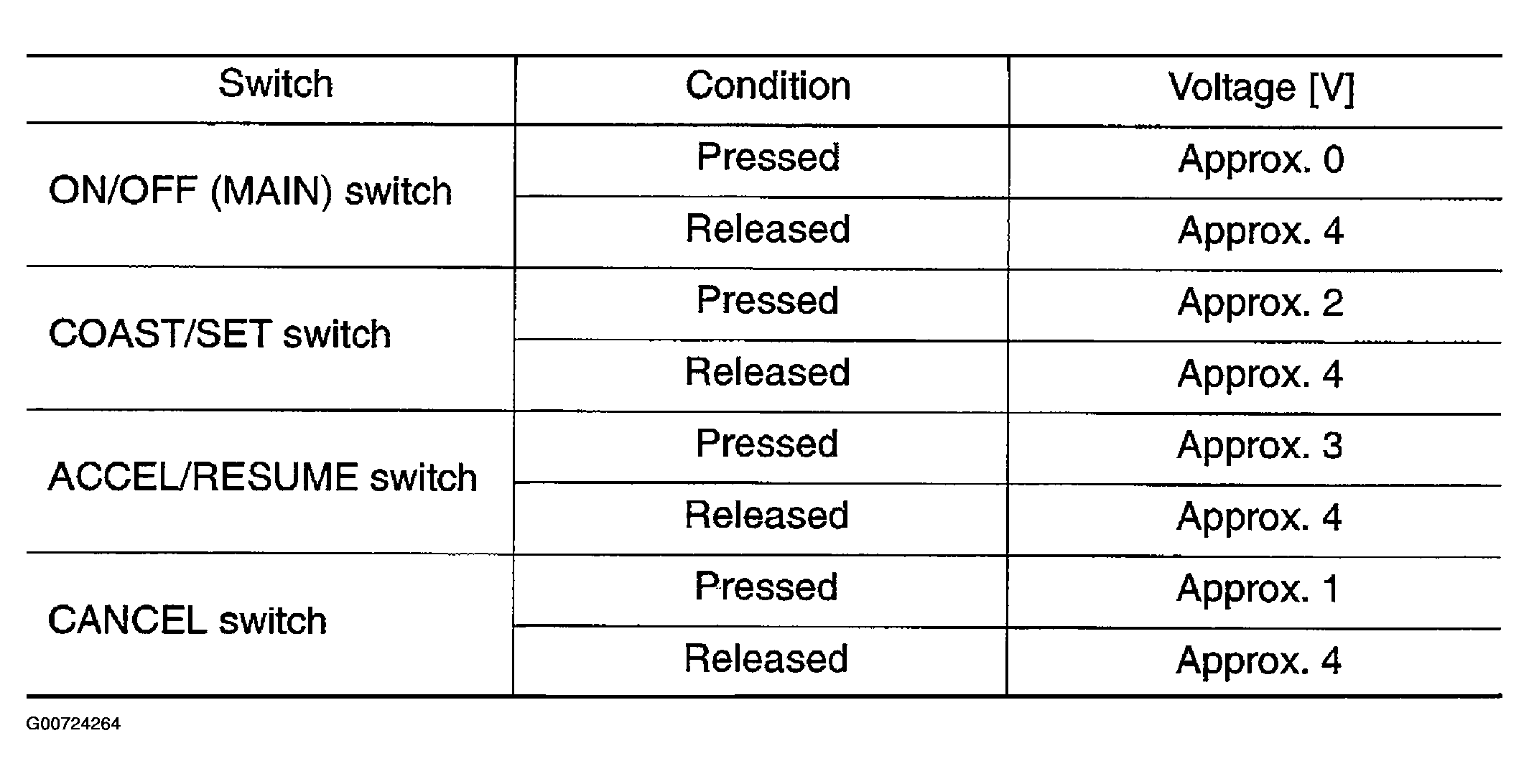

2. Check voltage between ECM terminal 99 and ground with pressing each button.
   Fig 3: Checking ASCD Steering Switch Circuit

   Courtesy of NISSAN MOTOR CO., U.S.A.
   Fig 4: Checking ASCD Steering Switch Circuit

   Courtesy of NISSAN MOTOR CO., U.S.A.

OK or NG

OK: GO TO 8 .

NG: GO TO 3.
