11. Check Electric Throttle Control Actuator Visually

  1. Remove the intake air duct.
  2. Check if foreign matter is caught between the throttle valve and the housing.

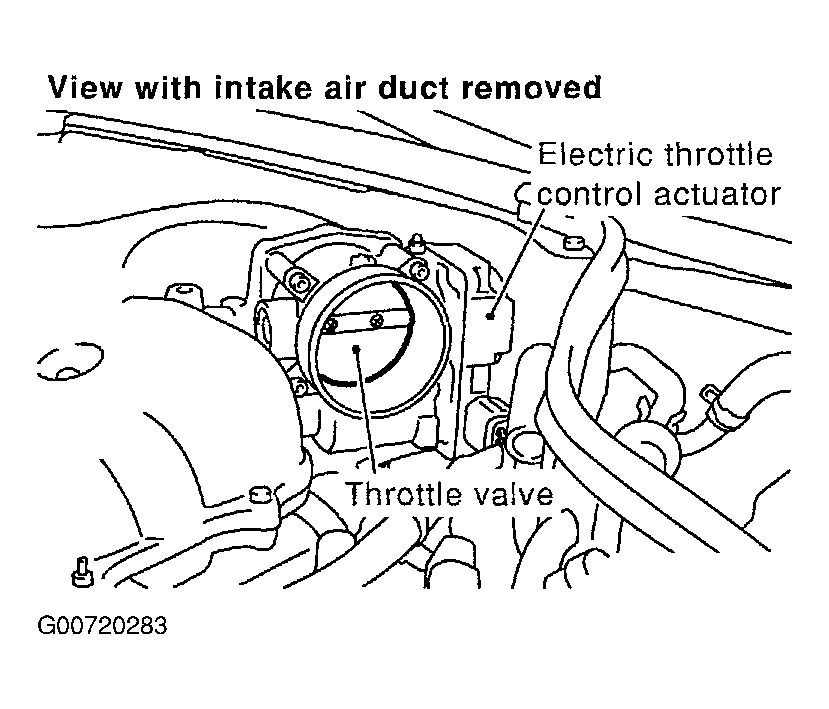

    Fig 1: Checking Electric Throttle Control Actuator
    G00720283Courtesy of NISSAN MOTOR CO., U.S.A.

OK or NG

OK: GO TO 12.

NG: Remove the foreign matter and clean the electric throttle control actuator inside.
